ASKOMA ASKOHEAT-FOP AHFOR-BI-OP Series Fitting Instructions, User Manual And Service

ASKOHEAT
-FOP
Installation instructions, operating instruction and Fitting instructions, user manual and service
Please keep in a safe place

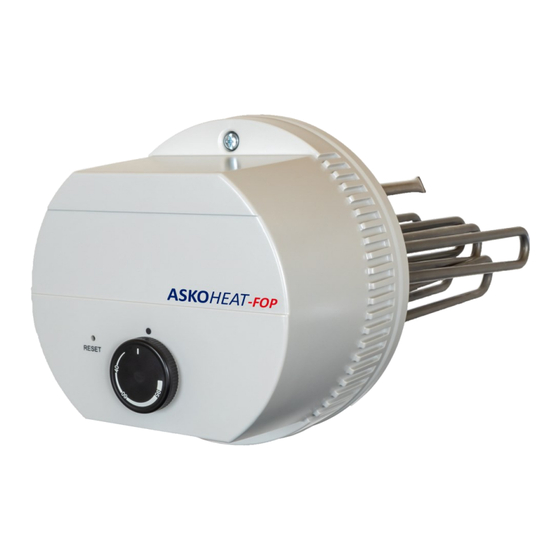

Flange heater Ø 180 mm for drinking and heating water
Suitable for consumption regulator Fronius Ohmpilot
2.0 to 9.0 kW
•
AHFOR-BI-OP-...
Index
User manual
Fitting instructions
Circuit diagram
Service
Malfunction
Allgemeine Sicherheitshinweise General safety information

•
Do not place the device into operation until after having read the user manual.
•
These devices may be used by children aged 8 or more and by persons with reduced physical, senso-
ry or mental capacity or those lacking in experience and/or knowledge if they are supervised or if
they have been instructed in safe operation of the device and understood the resultant dangers.
Children may not play with the device. The device may not be cleaned or serviced by children unless
they are supervised.
I n s t a l l a t i o n , s e t t i n g a n d r e m o v a l m u s t b e
I n s t a l l a t i o n , E i n s t e l l u n g u n d A b b a u m ü s s e n
c a r r i e d o u t o n l y b y q u a l i f i e d e l e c t r i c i a n s .
a u s s c h l i e s s l i c h d u r c h E l e k t r o f a c h k r ä f t e e r f o l g e n .
MV-012-5601.2
Flange heater Ø 180 mm
01.04.2023 www.askoma.com
Page 2
Page 3
Page 5
Page 6
Page 6
Page 1
