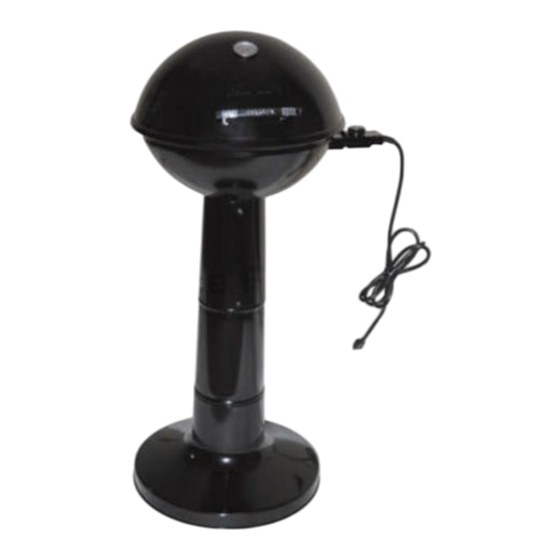

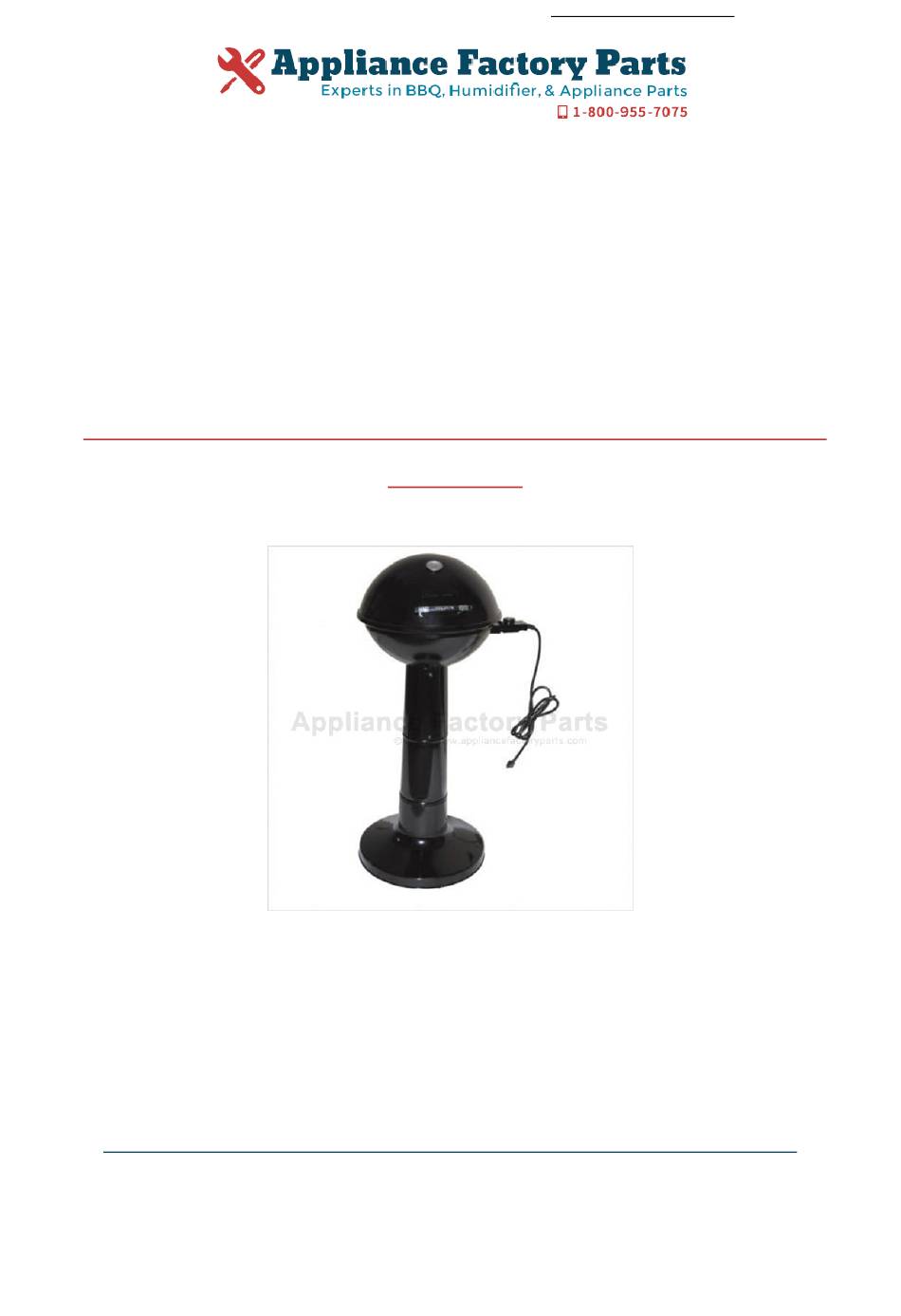

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. MASTERBUILT 20150209 Owner's Manual Shop genuine replacement parts for MASTERBUILT 20150209 Find Your MASTERBUILT Grill Parts - Select From 589 Models -------- Manual continues below --------...
- Page 2 Masterbuilt Manufacturing, Inc A Georgia Company 1 Masterbuilt Court Columbus, Georgia 31907 Customer Service 1-800-489-1581...
-
Page 3: General Warnings And Safety Information
GENERAL WARNINGS AND SAFETY INFORMATION • Use GFI protected electrical outlet to reduce the risk of electrical shock. • Never burn charcoal or wood in this unit. • Place unit on a level surface to prevent possible tipping. • To avoid injury disconnect electric cord from outlet before cleaning and servicing. •... -
Page 4: Approximate Grilling Times
APPROXIMATE GRILLING TIMES BEEF SIZE GRILLING TIME INTERNAL TEMP Steaks ” (2cm) thick 3 to 4 min. /side med rare 145°F (62°C) 4 to 5 min. /side med 160°F (71°C) Kabobs 1” (2.5cm) cubes 3 to 4 min. /side 145°-160°F (62-71°C) Hamburger patties ”... - Page 5 • Unplug from outlet when not in use and before cleaning. Allow unit to cool completely before putting on or taking off parts. • Accessory attachments not supplied by Masterbuilt Manufacturing, Inc. are not recommended and may cause injury. • Never use electric grill for anything other than its intended purpose. This unit is not for commercial use.
-
Page 6: Troubleshooting Guide
Make sure other appliances are not operating on the same electrical circuit. Check household fuses Controller malfunctioning Contact Masterbuilt at 1.800.489.1581 Unit takes excessive amount Unit plugged into an extension Set unit so an extension cord of time to heat up, (longer... -
Page 7: Hardware List
HARDWARE LIST Hair Pin M6x10 qty - 2 Flat Washer Hitch Pin qty - 2 qty - 2 M6x10 M5x10 Wing Nut Phillips Flange Screw Thumb Screw qty - 1 qty - 9 qty - 2 (packed with temperature gauge) - Page 8 STEP 7. Place cooking grate (7) inside grill base (2). Insert grease cup (6) into back of pedestal top (3). Connect control unit (8) to grill base (2). GRILL IS READY FOR USE.
- Page 9 STEP 3. Attach grill base (2) to assembled pedestal top (3) as shown using phillips flange screws (E). STEP 4. Insert element (11) into grill base (2) as shown. Align holes in element and grill base. Secure using thumb screws (D).
