Summary of Contents for Charmglow GRILL ISLAND 810-6800-B

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Charmglow 810-6800-B Owner's Manual Shop genuine replacement parts for Charmglow 810-6800-B Find Your Charmglow Grill Parts - Select From 997 Models -------- Manual continues below --------...
  • Page 2 GRILL ISLAND Gas Outdoor Grill / Parrilla a gas de alta resistencia OWNER’S MANUAL / NOTICE D’UTILISATION ASSEMBLY AND OPERATING INSTRUCTIONS INSTRUCTIONS D’ASSEMBLAGE ET D’UTILISATION SAVE THIS MANUAL FOR FUTURE REFERENCE CONSERVER CETTE NOTICE POUR RÉFÉRENCE WARNING / AVERTISSEMENT NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND LEAVE THESE INSTRUCTIONS INSTRUCTIONS ARE IGNORED.
  • Page 3: Important Safety

    IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS General Warnings ..........3 Installation and LP Cylinder Specifications and Safe Use.
  • Page 5: General Warnings

    GENERAL WARNINGS WARNING • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal briquets or lighter fluid in a gas grill. • Leak test all connections before first use, even if grill was purchased fully assembled and after each tank refill.
  • Page 6: Installation Information

    WARNING • FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage, shed or breezeway. • Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill be situated at least 10 feet (3.1 m) from buildings.
  • Page 7 CYLINDER SPECIFICATIONS: When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...
  • Page 8: Filling The Lp Gas Cylinder

    WARNING FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. •...
  • Page 9 WARNING • Never use your grill without leak testing all gas connections and hoses. See the section on "Leak Testing" in this manual for proper procedures. WARNING The pressure regulator and hose assembly supplied with your gas grill must be used. •...
  • Page 10: Leak Testing

    DANGER LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. • Never perform a leak test with a match or open flame. •...
  • Page 11: Pre-Start Check List

    6. Check each place listed (A– L) for growing bubbles which indicates a leak. 7. Turn off gas supply at cylinder valve. 8. Turn on control knobs to release gas pressure in hose. 9. Turn control knobs to "OFF" position. 10.
  • Page 12: Lighting Instructions

    WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. WARNING LIGHTING INSTRUCTIONS: Follow the instructions exactly. 1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside the grill.
  • Page 13: Match Lighting The Rotisserie Burner

    LIGHTING THE ROTISSERIE BURNER: 1. Open grill hood before lighting rotisserie burner. 2. Make sure control knob is in the "OFF" position. 3. Push and turn the control knob to the "HIGH" position. Continue to push in control knob while pressing electronic igniter for 3 –...
  • Page 14: Match Lighting The Side Burner

    MATCH LIGHTING THE SIDE BURNER: 1. Open the lid to the side burner before lighting. 2. Make sure control knob is in the "OFF" position. 3. Strike and carefully place a match approximately 1/2" (1 to 2 cm) from the burner. 4.
  • Page 15: Operating Grill And Helpful Hints

    WARNING OPERATING THE GRILL: Never use Charcoal or Lighter Fluid inside your Gas Grill. Read and follow all warnings and instructions contained in the preceding sections of this manual. BREAKING IN YOUR GRILL: • In manufacturing and preserving the components of your grill, oil residue may be present on the burner and cooking surfaces of your grill.
  • Page 16: Rotisserie Cooking

    ROTISSERIE COOKING: • This grill has pre-drilled mounting holes for a rotisserie. Do not use a rotisserie not specifically manufactured for this grill. • Read and follow all warnings and instructions in the owner’s manual provided with the rotisserie. Save instructions for future reference.
  • Page 17: Helpful Hints

    GRILL COOKING TIPS CLEANLINESS • Always wash hands thoroughly with soap and hot water prior to handling food and after handling raw meat, uncooked poultry or seafood. • When using a platter to carry raw meat, uncooked poultry or seafood to the grill, make sure to wash the platter thoroughly with soap and hot water before placing cooked foods back on the platter or use different platters for raw and cooked foods.
  • Page 18: Cleaning And Maintenance

    CLEANING AND MAINTENANCE: • Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors and liquids. • Keep the ventilation openings of the cylinder enclosure free and clear of debris. • Visually check burner flames for proper operation (see pictorial in "Burner Assembly/Maintenance" under Proper Care and Maintenance).
  • Page 19: Cooking Grills

    COOKING GRILLS • Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used to remove residue from the stainless steel surfaces. Do not use steel wire bristles to clean the cooking grills.
  • Page 20: Trouble Shooting

    TROUBLE SHOOTING Problem: Possible Causes: 1. Check LP cylinder fuel level. 2. Bad electrode spark. Check to see if the grill will match light. Electrode or collector may need adjustment. • Burner will not light 3. Burner may not be properly seated. 4.
  • Page 21: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Your grill's serial number and model number, and the contact information for Brinkmann Customer Service, are listed on a silver label found on the back of the grill or on the grill body side, under the side shelf. These questions and answers are for your general knowledge, and may not be applicable to your model grill.
  • Page 22 FREQUENTLY ASKED QUESTIONS Cleaning Stainless Steel Cooking Grills: Wash grills with a mild detergent and rinse with hot water before initial use and as needed. DO NOT use a commercial oven cleaner. For stubborn food residue, use a degreaser and fiber or brass cleaning brush.
  • Page 23: Parts List And Assembly Instructions

    ASSEMBLY INSTRUCTIONS READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND THREE PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. The following provided tools are required to assemble this Grill Island 6800 Gas Grill : •...
  • Page 24 FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
  • Page 25: Parts Bag Contents

    PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS CARD CONTENTS before you begin the installation process. Your Parts Card will include: Hex Nut Wrench Qty. M5 x 10mm Bolts Screwdriver 14 M8 Full Thread Stud Hex Nut Wrench (small) 14 M8 Washer M6 Nut...
  • Page 26 Choose a good, cleared assembly Back Panel Bolts area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary.
  • Page 27 Step 4 With the help of a friend, attach the back panel to the Grill Island base by using ten M6 x 12mm bolts. First, align the two holes to the guide pins which are located at the Guide Pin bottom of the island base.
  • Page 28 Step 5 Attach the side burner support bracket onto right side of the grill island by using four M6 x 12mm bolts. Note: Make sure the arrow is facing to front. Step 6 Attach the grill support bracket onto left side of the grill island by using four M6 x 12mm bolts.
  • Page 29 Step 8 Attach the granite tops by aligning the M8 threaded studs into the rubber ringed holes which are located on the top of the grill island base. Secure granite top to base using round washers and M8 nuts applied to each threaded stud.(Hand tighten only) Note : Before attaching the back granite piece turn support...
  • Page 30 Note : Lift the side burner from front Tracks and rear panels to avoid injury to hands and fingers. Step 9 Attach the side burner onto the right side of the grill base. Align the side burner bottom bar to the tracks on the side burner support, then slide it backward until it locks in place.
  • Page 31 Step 11 Attach the grill body side trim to the grill side end cap by using two M6 x 12mm bolts. Repeat for other end cap. Step 12 With the help of a friend, (we recommend 3 to 4 people to assembly the grill body) place grill body assembly on grill island.
  • Page 32 Step 13 Remove pre-cut granite plug and insert rotisserie motor cord through opening. Step 14 Slide rotisserie motor onto the rotisserie motor bracket. Replace granite plug into granite top. Step 15 Feed extension cord (not provided) through back panel of base unit and up through inside of grill cabinet base hole.
  • Page 33 Step 16 Connect the side burner hose to the grill body hose by inserting the fitting into the quick connect coupler. Step 17 Insert hinge pin in bottom of left side door into hole at the bottom left door frame then align door with left side door frame.
  • Page 34 Step 21 Insert main burner grease tray into opening on front side of main burners. Step 22 Insert side burner grease tray into opening on front side of side burner. Step 23 Remove the side burner igniter cap SIDE BURNER and insert battery with positive end of battery toward igniter cap.
  • Page 35 Step 24 Place side burner grate on side burner. Step 25 Place the four heat distribution plates on tabs which are located on the lower level of grill body assembly directly above burners. Step 26 Place stainless steel cooking grills on support ribs directly above heat distribution plates.

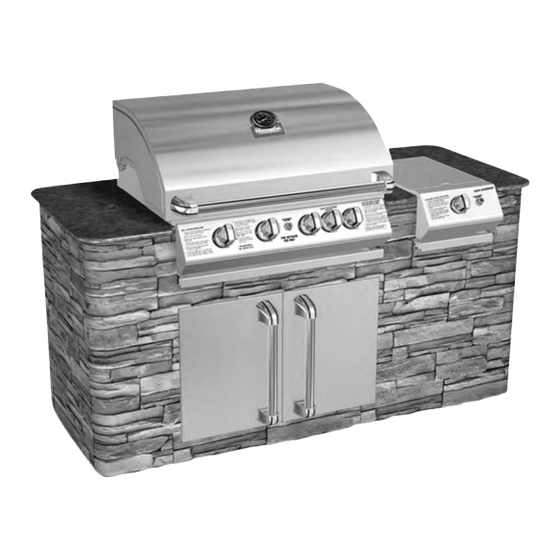

  • Page 36 Charmglow Grill Island (Assembled) Note : Use the large hex nut wrench to adjust grill feet to properly level your Grill Island Outdoor Gas Grill.
