System Operation - LIVOLTEK GT3-30kW Quick Installation Manual

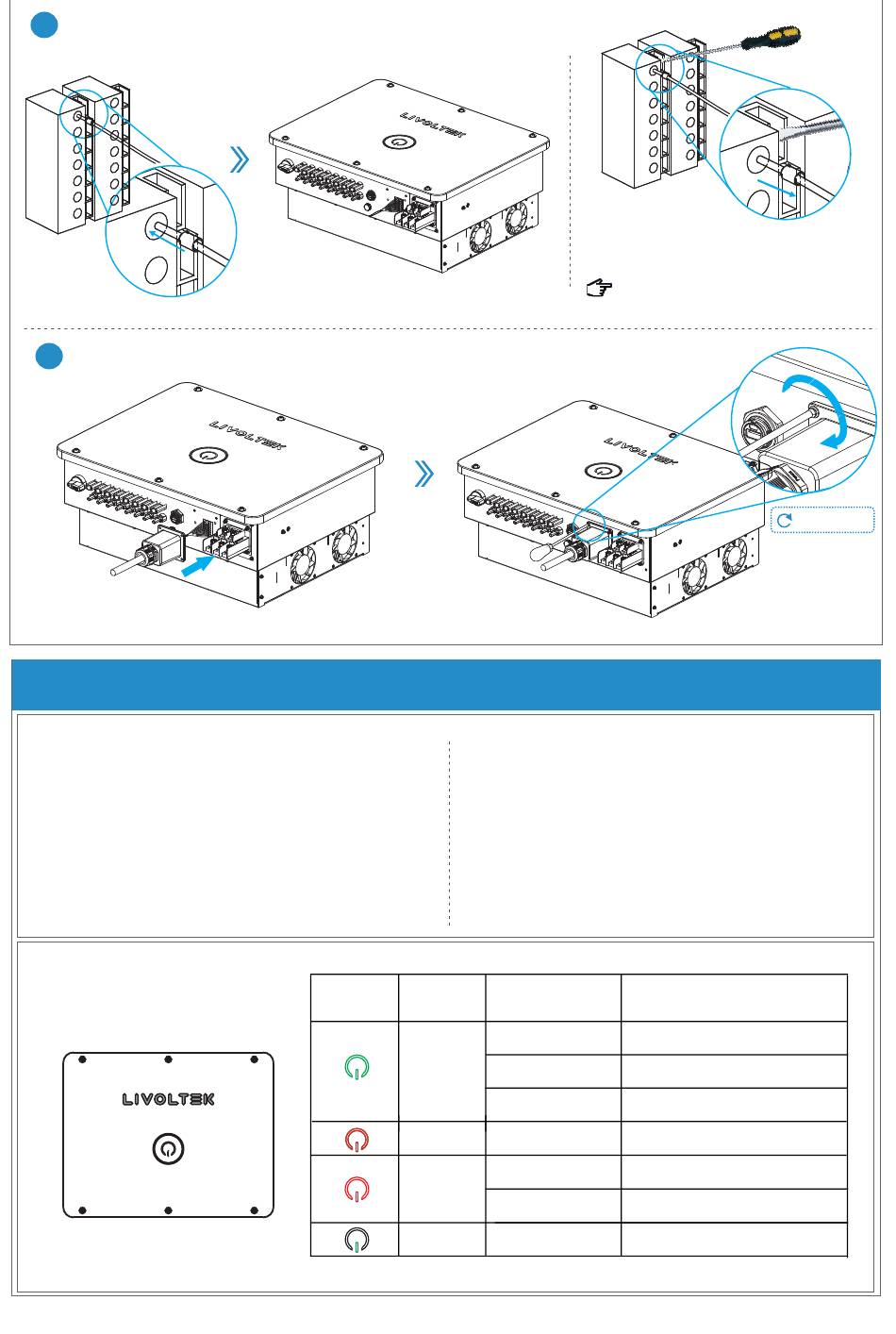

When connecting the COM cable, please insert the cable
3
terminal directly into the corresponding interface with force.
4

System Operation

Powering on the System
Step 1:Turn on the AC breaker on the GRID side.
Step 2:Turn on the PV breaker.
Step 3: Switch on the loads (if needed to set 0-feed-in function).
Step 4: Wi-Fi Dongle network connection.
Step 5: Observe the LED indicator.
Indicator Description
Powering off the System
Step 1:Turn off the loads (if needed).
Step 2: Turn off the PV.
Step 3:Turn off the AC switch.
Step 4: Observe the LED indicator.
Step 5: Disconnect the power cable and communication
cable if needed.
Indicator Color
Green
Green/Red
Red
Green
16
To remove the COM cable, please use a tool
to press the button on the right side of the
jack, then the COM cable could be removed.
Notice: Do not press the button with too
much force to avoid damaging the port.
Status
On Inverter Operating Normally
Off
Inverter Not Operating Normally
Blink
Standby
Alternate Flashing
System updating
On
Fault occurs
Off
No fault occurs
On PID Recovering
1.5 0.2 N.m ±
Description
