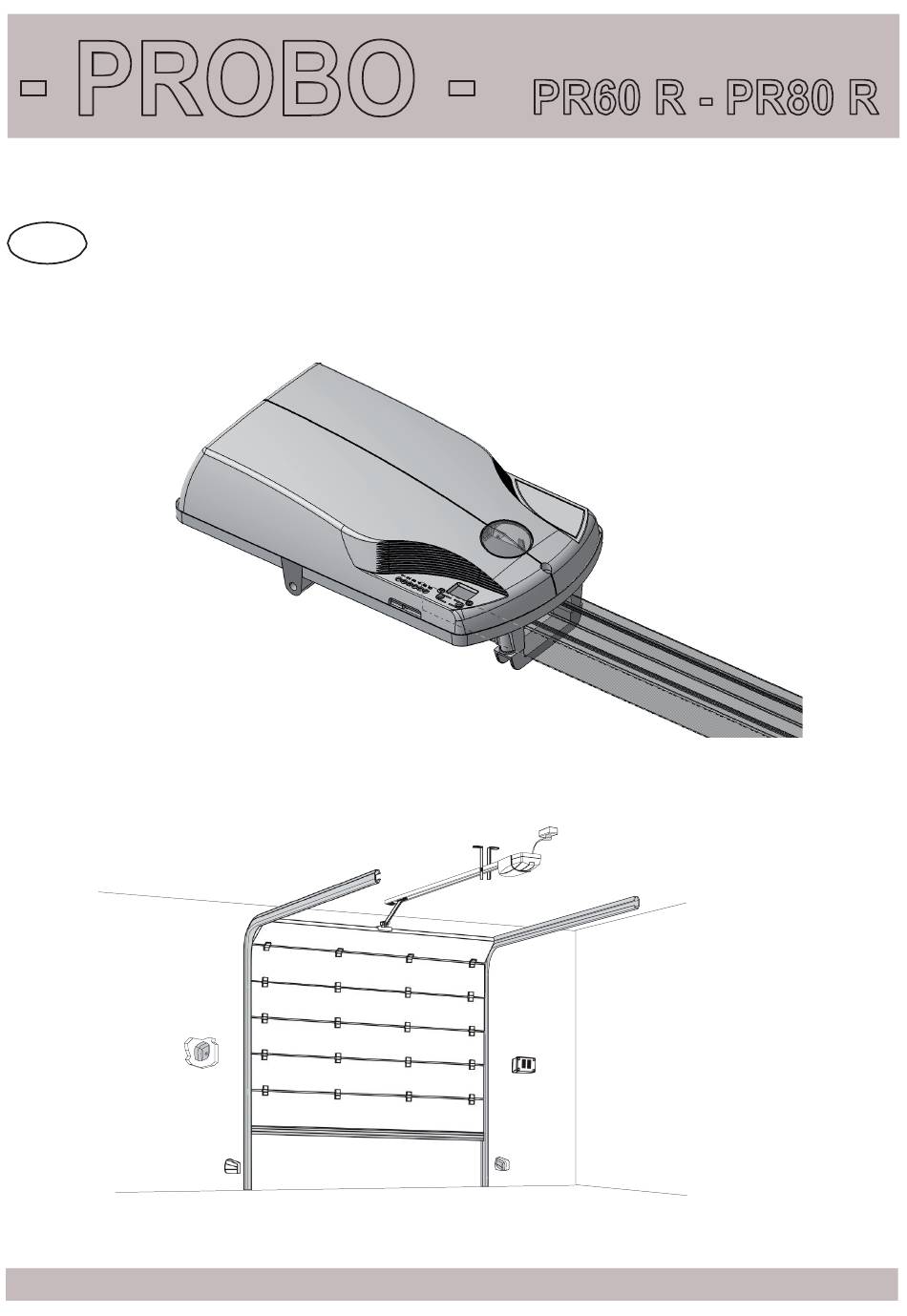

- PROBO -
PR60 R - PR80 R
MOTOR FOR SECTIONAL DOORS
GB
INSTRUCTIONS AND WARNINGS FOR USE AND MAINTENANCE
V. Rev. 16 - 48/2019 LG

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROBO PR60 R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LIFE home integration PROBO PR60 R

  • Page 1 - PROBO - PR60 R - PR80 R MOTOR FOR SECTIONAL DOORS INSTRUCTIONS AND WARNINGS FOR USE AND MAINTENANCE V. Rev. 16 - 48/2019 LG...
  • Page 2 WARNING Important Safety instructions. It is important for the safety of persons to follow all instructions. Save these instructions. Keep these instructions, the technical manual is also available in electronic format on the website www.homelife.it The drive shall be disconnected from its power source during cleaning, maintenance and when replacing parts. Do not allow children to play with the appliance or its controls, including remotes.
  • Page 3 GENERAL INDEX 1 – List of components 2 – Tools and material needed for installation 3 – Use limits 4 – Technical data 5 – Installation 5.1 Preliminary checks and usage restrictions 5.2 Rail installation 5.3 Belt tensioner 5.4 Motor mounting on the rail 5.5 Frontal part installation 5.6 Limit switch installation and fixing in Opening 5.7 Installation support for rail...
  • Page 4: List Of Components

    1 - List of components Pcs. Description Pcs. Description Wall bracket Connecting pin Gear Motor Door bracket Manual unlock Arm connection Fixing screw jumper Guide support Plug D6 Jumper Ceiling mounting bracket Plug lock Screw bracket M6X20 Mechanical stop Large washer M6 Plastic spacer Bolt M6 Spiral spring...
  • Page 5: Use Limits

    10mm Cement 8/10mm 3 - Use limits PROBO PR60 R Max 600N L. 2,8 m X H. 2,4 m Max GRB30-GRB30/2 PROBO PR80 R Max 800N L. 3,5 m X H. 2,4 m Max GRB30-GRB30/2 L. 3,3 m X H. 2,7 m Max GRB33/2 L = 3,5 m Max Min.8mm...
  • Page 6: Technical Data

    Under applicable law, installation may only be performed by professional fitters. 4 - Technical data LIFE home integration reserves the right to vary technical features at any time and without giving prior notice, whilst maintaining the same intended usage and functions.
  • Page 7: Rail Installation

    5 - Installation Preliminary checks and usage restrictions Before proceeding with the installation, it is necessary to carry out the following preliminary checks: - The automation installation area must provide the space necessary to carry out maintenance and manual release operations. - Check that the door is in good mechanical condition, balanced and that it opens and closes correctly.
  • Page 8 5.4 Motor mounting on the rail 5.5 Frontal part installation...
  • Page 9 5.6 Limit switch installation and fixing in Opening 5.7 Installation support for rail Push...
  • Page 10: Electrical Connections

    6 - Electrical connections ATTENTION The connection cables must be inserted inside a protective tube or channel fixed with suitable cable tie in compliance with regulations in force. 230 Vac 50/60 Hz Connect the cable to the electrical system. Emergency release 6.1 Replacing the remote-control battery CAUTION RISK OF EXPLOSION IF THE BATTERY IS REPLACED BY ANOTHER MODEL CR2032 3V...
  • Page 11: Electronic Control Unit

    7 – Electronic control unit Terminal connection: Output + 28 Vdc Max 200 mA Output - 28 Vdc (Common Commands) Input STOP Input STEP - 5 - Input PHOTOCELLS Output FLASHING Led 28Vdc Max 2W FUSE F2 FUSE F1 5X20 0.2mA T 5X20 4A T Exit 28 Vdc max 100 mA...
  • Page 12 8- Programming and managing options Any safety devices (Photocells or Stop) must be N.B. connected before programming, otherwise, these are NOT active. 8.1 – INTIAL SETUP Press and hold button B; after 5” the icon flashes on the display; keeping the button pressed the door opens;...
  • Page 13: Default Reset

    8.3 – Remote control programming – Partial opening Press and hold button A, after 5"the icon [A] lights up on the display; release the button, press button B and release, the icon [P] lights up on the display, now press the key on the fob to be programmed within 5";...
  • Page 14: Options Menu

    8.6 - Options menu Press and hold button B, immediately after press button A in sequence; at each pressure the display shows the number of the menu [1] - [2] ..[9] for 5"; release the buttons and confirm the desired menu by pressing button B. Now the display indicates with a flashing the adjusted level, with buttons A and B it is possible to change the parameters, after 5"...
  • Page 15 [5] – Short inversion adjustment. [0] Short inversion disabled [1] Minimum [2] ……… Open 1-10 mm [3] (Default) [4] ……… Closed [5] Maximum [6] – Slowdown space adjustment. [0] Minimum [1] ……… [2] (Default) Closed [3] ……… [4] ……… [5] Maximum [7] –...
  • Page 16: General Information

    SAFETY INSTRUCTIONS AND WARNINGS chapter. With the aim of improving its products, LIFE home integration reserves the right to bring about alterations to them at any time, without giving prior notice.
  • Page 17: Installation Warnings

    • The Manufacturer declines all responsibility for damage to electromechanical operator functioning caused by non-compliance to the storage instructions given below. • The electromechanical operator must be stored in closed, dry places, at room temperatures between –20 and +70°C and raised off the ground. •...
  • Page 18 12.1 Testing During testing, ensure that the measurement of the gate’s impact force has been performed in accordance with EN standards 12445 and 12453. • Check that the indications given in the SAFETY INSTRUCTIONS AND WARNINGS and INSTRUCTIONS AND INDICATIONS FOR INSTALLATION chapters have been carefully observed.
  • Page 19: Maintenance

    14 - Maintenance 14.1 Maintenance instructions and warnings • Once the automation has been tested, the parameters set must not be altered. If further adjustments (e.g. alterations to the voltage value) are made, ALL THE CHECKS REQUIRED FOR TESTING AND COMPLIANCE WITH STANDARDS MUST BE REPEATED. •...
  • Page 20 Via Sandro Pertini 3/5 31014 COLLE UMBERTO (TV) Italia Declares that the following product: PROBO PR60 R - PROBO PR80 R Electromechanical operator is for sectional doors. Serial number - Production lot It complies with the essential requirements of the following directives:...
