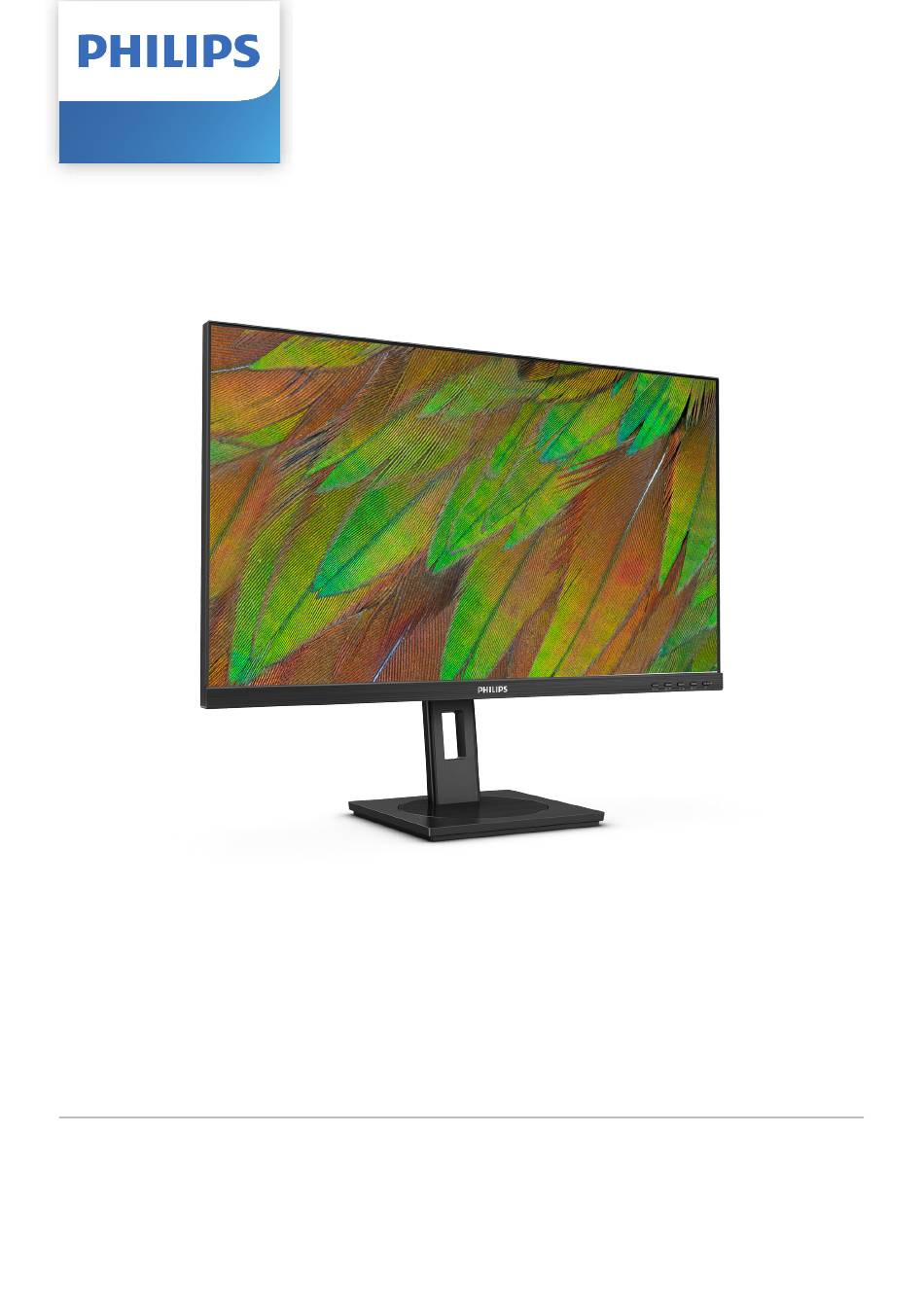

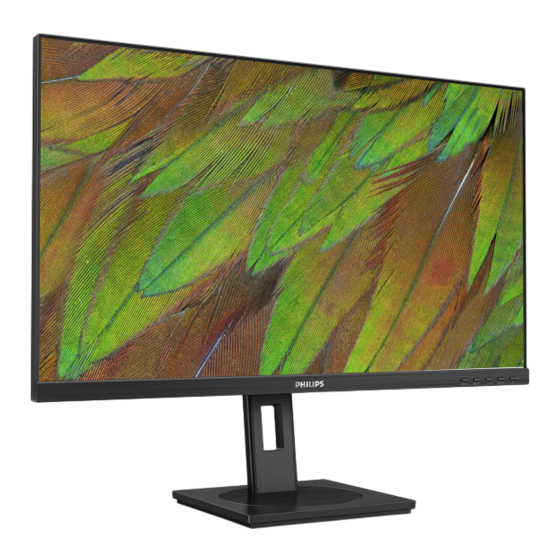

- Page 1 Business Monitor 3000 Series 27B1N3800 User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
5.1 Resolution & Preset Modes ..17 6� Power Management ������������������ 19 7� Customer care and warranty ��� 20 7.1 Philips’ Flat Panel Monitors Pixel Defect Policy ......... 20 7.2 Customer Care & Warranty ..23 8� Troubleshooting & FAQs ����������� 24 8.1 Troubleshooting ...... -
Page 3: Important
Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips • Remove any object that could fall monitor. Take time to read this user into ventilation holes or prevent manual before you use your monitor. - Page 4 damage will not be covered under • Oil-based cleaning solutions may warranty. damage the plastic parts and void the warranty. • Do not knock or drop the monitor during operation and/or • Unplug the monitor if you are not transportation. going to use it for an extensive period.
-
Page 5: Notational Descriptions
1.2 Notational Descriptions • “Burn-in”, “after-imaging”, or “ghost imaging” is a well-known The following subsections describe the phenomenon in LCD panel notational conventions used in this technology. In most cases, the document. “burn-in”, “after-imaging” or “ghost imaging” will disappear gradually Notes, Cautions, and Warnings over some time after the power has Throughout this guide, blocks of text... -
Page 6: Disposal Of Product And Packing Material
From the planning, design, and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or its entails participation in national take-... -
Page 7: 2� Setting Up The Monitor
Package contents Business Monitor 3000 Series 27B1N3800 Quick Start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. Power (1) Gently attach the base to the stand. (2) Use your fingers to tighten the... - Page 8 Connect to PC Connecting to your PC 1. Connect the power cord to the back of the monitor firmly. 2. Turn off your computer and unplug its power cable. 3. Connect the monitor signal cable to the video connector on the back of your computer.
-
Page 9: Operating The Monitor
2.2 Operating the monitor USB charging This display has USB ports capable of Description of the control buttons standard power output including some with USB charging functions (identifiable with power icon )� You can use these ports to charge your Smartphone or power your external HDD, for example�... - Page 10 1 HDMI 2.0 2 HDMI 2.0 On-Screen Display (OSD) is a feature in DisplayPort On, Off Auto all Philips LCD monitors. It allows an end Picture SmartImage EasyRead, Office, Photo, Movie, Game, Economy, LowBlue Mode, Off Picture Format Wide Screen, 4:3...
-
Page 11: Height Adjustment
Physical Function Height adjustment Tilt 25° -5° 130mm Pivot Swivel 0° 0° +180° -90° 90° -180° Warning • To avoid potential screen damage, +180° such as panel peeling, ensure that the monitor does not tilt downward -180° by more than -5 degrees. •... -
Page 12: Remove The Base Assembly For Vesa Mounting
2.3 Remove the Base Assembly for VESA Mounting 100mm Before you start disassembling the monitor base, please follow the 100mm instructions below to avoid any possible damage or injury. 1. Place the monitor face down on a smooth surface. Pay attention not to scratch or damage the screen. -
Page 13: 3� Image Optimization
Whether you're working There are multiple selections: EasyRead, with text applications, displaying images Office, Photo, Movie, Game, Economy, or watching a video, Philips SmartImage LowBlue Mode, Off. delivers great optimized monitor performance. Why do I need it? ... -
Page 14: Smartcontrast
• Off: No optimization by SmartImage. Note Philips LowBlue mode, mode 2 compliance with TUV Low Blue Light certification, you can have this mode by simply press the hotkey , then press... -
Page 15: 4� Designs To Prevent Computer
(CVS) according to your height. 4. Choose Philips monitor for easy-on- Philips monitor is designed to prevent eye eyes. strain caused by prolonged computer use. Follow below instructions and use Philips • Anti-glare screen: Anti-glare... -
Page 16: Technical Specifications
5. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight W-LED Panel Size 27" W (68.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.1554 (H) mm x 0.1554 (V) mm Contrast Ratio(typ.) 1000:1 Native Resolution 3840 x 2160 @ 60 Hz Maximum Resolution 3840 x 2160 @ 60 Hz Viewing Angle... - Page 17 Plug & Play Compatibility DDC/CI, sRGB, Windows 11/10, Mac OS X Stand Tilt -5 / +25 degree Swivel -180 / +180 degree Height adjustment 130 mm Pivot -90 / +90 degree Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 100VAC , at 115VAC ,...
- Page 18 100% PVC BFR free housing Cabinet Color Black Finish Texture For more information, please refer to Chapter 5.1 on Display Input Format. Note This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 19: Resolution & Preset Modes
5.1 Resolution & Preset Modes H. freq Resolution V. freq (Hz) (kHz) 31.47 720x400 70.09 31.47 640x480 59.94 35.00 640x480 66.67 37.86 640x480 72.81 37.50 640x480 75.00 35.16 800x600 56.25 37.88 800x600 60.32 48.08 800x600 72.19 46.88 800x600 75.00 47.73 832x624 74.55 48.36... - Page 20 Display Input Format 422/420 444/RGB 422/420 444/RGB (HDMI2.0) (HDMI2.0) (DP1.4) (DP1.4) 3840 x 2160 60Hz, 10bits 3840 x 2160 60Hz, 8bits 3840 x 2160 30Hz, 10bits 3840 x 2160 30Hz, 8bits lower resolutions 8bits/10bits Note In order for the monitor to function properly, your PC’s graphics card must support DisplayPort 1.4 or HDMI 2.0.
-
Page 21: 6� Power Management
6. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 22: 7� Customer Care And Warranty
Other combinations of Pixel Defect Policy lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing... - Page 23 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or sub panel in a Philips flat panel monitor pixels that are always dark or 'off'. That must have pixel or sub pixel defects is, a dark dot is a sub-pixel that stands...
- Page 24 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 25: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 26: 8� Troubleshooting & Faqs
• Contact with Philips customer service • First, ensure that the power button representative immediately. on the front of the monitor is in the... -
Page 27: General Faqs
For further assistance, refer to the Service • Uninterrupted display of still or contact information listed in Important static images over an extended Information Manual and contact Philips period may cause "burn-in", also customer service representative. known as "after-imaging" or "ghost * Functionality different according to imaging", on your screen. - Page 28 Shut down your computer, monitor, make sure that there is disconnect your old monitor and no pressure or force applied to reconnect your Philips LCD monitor. the panel surface side. This may • Turn on your monitor and then turn affect your warranty conditions.
- Page 29 PC, workstation or Mac? repaired. The damage mentioned above is not covered under your warranty. Ans.: Yes. All Philips LCD monitors are fully compatible with standard Q12: Why is my Display not showing PCs, Macs and workstations.
- Page 30 Q14: Where can I find Important Information Manual mentioned in EDFU? Ans.: Important Information Manual can be download on the Philips website support page.
- Page 31 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
