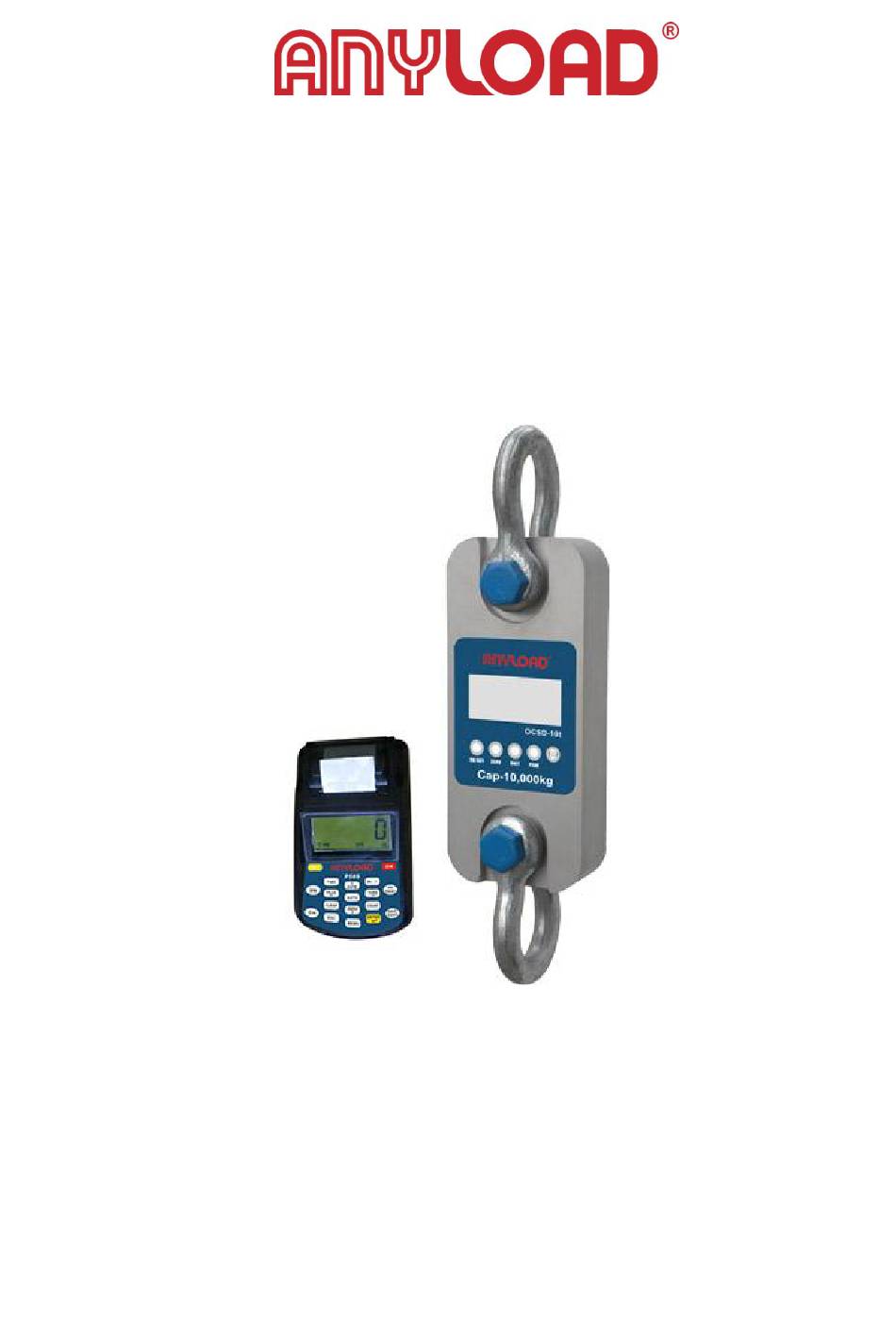

- Page 1 OCSD WIRELESS DYNAMOMETER USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFE OPERATION GUIDE……………………………………………………………….2 CHAPTER 1 FEATURES AND SPECIFICATIONS…………… …………………….3 1. Features……………………………………………………………………………3 2. Main technical data……………………………………………………………….3 3. Specifications……………………………………………………………………...4 4. Appearance illustration…………………………………………………………...4 5. Power supply………………………………………………………………………5 CHAPTER 2 DISPLAY AND KEYS……………………………..………………………5 1. Dynamometer display……………………………………………………………..5 2. Indicator display…………………………………………………………………...6 CHAPTER 3 FUNCTION GUIDE…………………………………………………………7 1. -
Page 3: Safe Operation Guide
SAFE OPERATION GUIDE： 1. Do not make lifts beyond rated load capacity of the dynamometer and the shackle(s). 2. Do not perform overhead weighing. Stay clear when Dynamometer is in operation. 3. Do not perform weighing under strong wind conditions as it may cause incorrect readings. -
Page 4: Chapter 1 Features And Specifications
CHAPTER 1 FEATURES AND SPECIFICATIONS 1.1 Features Body protection: Aluminum and alloy steel capacities are powder coated. Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity. Units: Units are clearly displayed on the screen available in the following measurement readings: Kilograms (kg), short Tons (t) pounds (lb), Newton and kilo-Newton (kN) ... -
Page 5: Specifications
1.3 Specifications Capacity (kg) Min. Weight (kg) Division (kg) Total counts (n) MENU OCSD-1t 1000 2000 OCSD-2t 2000 2000 OCSD-3t 3000 3000 OCSD-5t 5000 2500 OCSD-10t 10000 2000 OCSD-20t 20000 2000 OCSD-30t 30000 3000 OCSD-50t 50000 2500 OCSD-100t 100000 1000... -
Page 6: Power Supply
WEIGHTS MODEL OCSD-1t OCSD-2t OCSD-3t OCSD-5t OCSD-10t Unit Weight (kg) 10.4 Weight with shackles (kg) 24.8 MODEL OCSD-20t OCSD-30t OCSD-50t OCSD-100t OCSD-200t Unit Weight (kg) 17.8 Weight with shackles (kg) 48.6 1.5 Power supply Dynamometer battery: “LR6 (AA)”size alkaline batteries. 1.5VX3 Indicator battery: 7.2V/ 3.3Ah Ni-H rechargeable battery... -
Page 7: Indicator Display
b. ZERO When Dynamometer is switched on with no load, but there are small digits on the screen, press this key to obtain the zero reading. c. UNIT Press UNIT key, the unit on LCD will display in loop as follows: “kg”→ “lb” →“N” → “kN”→ “t”→ “kg”. d. -
Page 8: On/Off
CHAPTER 3 DYNAMOMETER FUNCTION GUIDE ( ) means the key on the dynamometer 〖 〗means the display content 3.1 ON/OFF ◆ TURN ON dynamometer OPERATION DISPLAY ILLUSTRATION 〖88888〗 (ON/OFF) Displays twice, self test 〖 Ert 〗 Displays twice 〖U=3.72〗 Displays current software version 〖CH=E3〗... -
Page 9: Zero
◆ TURN OFF indicator Manual Power OFF Press key for 1 Second The indicator will turn off automatically after 3 minutes if Auto Power OFF not in operation 3.2 ZERO When Dynamometer is turned on, generally it OPERATION DISPLAY displays〖 0〗, if display reads small digits Press（ZERO）... -
Page 10: Set Cn
3.7 SET CN(CARGO NUMBER) OPERATION DISPLAY ILLUSTRATION 〖 00 〗 Displays current cargo number, press Press to set new cargo number, 〖 Press 0〗 Save and return Attn: After set new CN, it means that the goods weigh later are classified to this CN 3.8 SET SN(SERIAL NUMBER) OPERATION DISPLAY... -
Page 11: Set Print Method
3.11 SET PRINT METHOD OPERATION DISPLAY ILLUSTRATION Displays current print method, AutoP means 〖 AutoP 〗or Press auto print, once weighing over 20e and stable, 〖 HAndP 〗 indicator will auto print the weighing date. HAndP means manual print, you have to press key to print data when weighing is stable, press to shift from these two... - Page 12 There are two user programmable Set-Points SP1 and SP2 that can be used for safety and warning applications or for limit weighing. 1 LO SP1 1 HI 2 LO SP2 2 HI OPERATION DISPLAY ILLUSTRATION 〖SETUP〗 Press twice Confirm, enter into parameter setting program 〖SP1 〗...
-
Page 13: Chapter 4 Weighing Data Processing
Chapter 4 WEIGHING DATA PROCESSING In normal weighing status, every time weighing data will be saved in memory, and number it as No:0001, No:0002 etc, 580 indicator can save up to 2000 weighing data 4.1 Input in CN & SN number CN and SN are mainly used to classify different goods. -
Page 14: Print Per Cn
4.4 Print per CN OPERATION DISPLAY ILLUSTRATION 〖 XX 〗 It means current CN is XX, press Press to set CN in which you want to print data. 〖 0 〗 Press The indicator will print all time weighing data classified in the CN set, total weight and total times. -
Page 15: Parameter Settings
CHAPTER 5 PARAMETER SETTING & CALIBRATION 5.1 Parameter setting OPERATION DISPLAY ILLUSTRATION Press 〖SETUP〗 Confirm, enter into parameter setting program twice The screen will display FS=06 ， if dynamometer is 〖FS=06〗 Press calibrated, it will display capacity. Choose capacity, the screen will display 02/03/05/06/10/15/20/30/50/60/75/80 circularly. - Page 16 achieve high accuracy, after calibration, set Cd=11 again, generally choose Cd=12 when ex-stock. 〖LL=2〗 Press The screen will display LL=2, if dynamometer is confirm calibrated, it will display calibrated value. 〖LL=1〗 Press LL：filter parameter，0~5 total 6 options, from to choose smallest to biggest, before calibration, set LL=0, after calibration, set LL=1, generally choose LL=1 when ex-stock..
- Page 17 〖2 OFF〗 Press The screen will display 2 OFF, if parameter is set, it confirm will display set value. 〖2 HI〗 Press There are 3 choices, 2 OFF means you do not set choose point, 2 HI means the indicator will alarm when 〖2 LO〗...
-
Page 18: Calibration
Calibration User must set all parameters before calibration OPERATION DISPLAY ILLUSTRATION Take Cap:5000kg dynamometer as an example, make sure Turn on dynamometer 〖 0〗 it displays〖 0〗before calibration, you can hang tare and indicator weight first, then turn on to get zero reading 〖CLIbr〗... -
Page 19: Chapter 6 Communication With Pc
CHAPTER 6 COMMUNICATION WITH PC 580 wireless indicator has a USB port which can input weighing data into PC 6.1 Installing drive software When 580 USB kit is connected to the PC for first time, PC will request drive software, please run drive software. - Page 20 6.2 Run weighing software After installing drive software, you can run PC software in CD ROM, and the PC displays as follows: Select COM port number same as device manager showed, generally choose COM3, the PC displays as follows: Then Click “Receive” button Occasionally, the PC will mention to check port COM3, if you are sure you selected port COM3, USER MANUAL ERT07.025 SSE...
-
Page 21: Display Illustration
just ignore it and click “Receive” button again. When “STB” is changed to red color, it means dynamometer load is stable, meanwhile, you can click “SAVE” button to save weighing value as “*.ini” file, you can select file path and file name to save. -
Page 22: Chapter 8 Troubleshooting Guide
CHAPTER 8 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOUTION No display Defective battery Replace Defective button Requires authorized service Power button Press ON/OFF key firmly properly pressed in three seconds Digits flash Low battery Replace battery Display does not Faulty load cell or PCB Requires authorized service respond to load Out of calibration... -
Page 23: Chapter 9 Rs232 Protocol
CHAPTER 9 RS232 PROTOCOL Data(ASCII) 39 39 Pre-code data data data data data +/-(0 means+ Commodity Stable Wireless F means -) number Signal Signal X is decimal position (stable) Have signal (unstable) Without signal RS-232 Setup Instructions Communication Configuration Port: COM1 Baud Rate: 4800...
