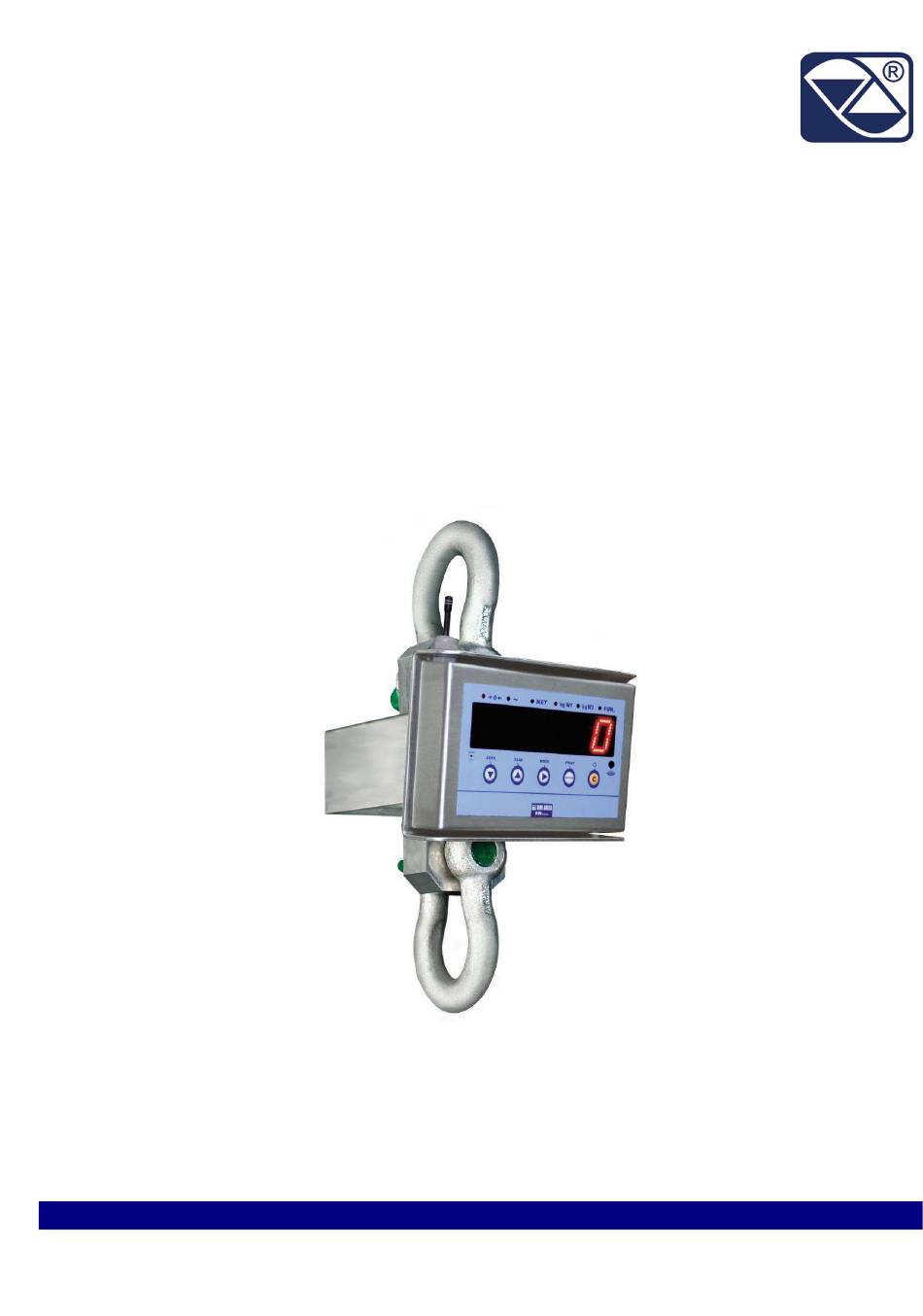

- Page 1 INSTRUCTIONS MANUAL ELECTRONIC CRANE SCALE MCW09 “PROFESSIONAL” MCW09_03_12.01_EN_U...
-
Page 2: Table Of Contents
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U INDEX 1 GENERAL INFORMATION ............................... 3 1.1 INTRODUCTION ............................... 3 1.1.1 Designation of the machine and manufacturer data ..................3 1.1.2 Premises ................................3 1.1.3 Symbols ................................4 1.1.4 General precepts ............................... 5 1.1.5 Destination of use .............................. 5 1.1.6 Typical CE conformity declaration ........................ -
Page 3: General Information
1.1 INTRODUCTION Dear Customer, We thank you for choosing a Dini Argeo product and we invite you to carefully read this manual before carrying out any operation on the instrument that you have purchased. It is of utmost importance that the main checks and maintenance or repair interventions be recorded in the appropriate section of the booklet. -
Page 4: Symbols
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.1.3 Symbols Please find below the symbols in the manual which recall the operator’s attention, in regards to the various danger levels. The danger levels will be subdivided in four classes of importance: Concept or procedure which, if not carried out DANGER!! accurately, causes the danger or harsh personal injuries in case of accident. -
Page 5: General Precepts
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.1.4 General precepts The warnings shown in this manual recall the ATTENTION OF THE OPERATOR in regards to information or procedures which advise the best use of the equipment in order to: work safely; lengthen the duration and functionality; avoid the damages or loss of the programming;... -
Page 6: Typical Ce Conformity Declaration
1.1.6 Typical CE conformity declaration DICHIARAZIONE DI CONFORMITA’ DECLARATION OF CONFORMITY KONFORMITÄTSERKLÄRUNG DÉCLARATION DE CONFORMITÉ DECLARACIÓN DE CONFORMIDAD Fabbricante: Manufacturer: Hersteller: DINI ARGEO srl Fabricant: Fabricante: Dinamometro elettronico modello: Electronic crane scale model: Electronische Kranwaage Modell: MCW09 Dinamomètre électronique modèle: Gancho pesador electrnico modelo:... -
Page 7: Markings
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.1.7 Markings On the equipment one will find a label in which there are shown the metrological and technical information as well as the relative CE marking of the instrument. CAUTION!! For no reason the data or closing and legalisation seals on the instrument’s plate, must be modified or removed. In case of tampering or removal of this information, the warranty of the instrument ceases, and the manufacturing company is released from any eventual damage, direct or indirect, caused to people or to things. -
Page 8: Directives And Reference Norms
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U Markings on the load cell: In which: 1 CE marking 2 Name of the series or model of the load cell 3 Serial number (sn) 4 Maximum useful load (maximum capacity) 5 With the issuing of the July 22nd, 2005 nr. 151 decree-law, relative to the European Directive 2002/96/EC in regards to the Waste Electrical and Electronic Equipment (known as WEEE), the relative manufacturers are called to intervene and manage the life cycle end of their introduced products. -
Page 9: Technical Features Of The Weighing System
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.2 TECHNICAL FEATURES OF THE WEIGHING SYSTEM 1.2.1 Main components The “MCW09” instrument is an electronic weighing device which carries out the “lifting accessory” function through the parts which compose it. In order to better understand this product, please find below the main components which are part of this machinery. - Page 10 MCW09 PROFESSIONAL MCW09_03_12.01_EN_U In MCW09 electric crane scale, power is supplied by a rechargeable 6 V- 4,5 Ah to be inserted into the battery box located on the back of the equipment. G: Are the battery box and the relative way of insertion in the electronic crane scale MCW09. H: is the insertion slot in which you insert the battery box.
-
Page 11: Crane Scale Dimensions
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.2.2 Crane scale dimensions DIMENSIONS EXPRESSED IN mm MODEL 272,5 MCW09T12 272,5 MCW09T17 272,5 MCW09T25 272,5 MCW09T35 1350 292,5 MCW09T55... -
Page 12: Shackle Dimensions
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.2.3 Shackle dimensions Along with the “MCW09” electronic crane scale, 2 lifting shackles are supplied. The fitted shackles have the following characteristics: SCREW PIN SHACKLE (models MCW09T12, MCW09T17) MODEL CAPACITY WEIGHT cuss [Tons] [mm] [inch] [mm] [mm] [mm] [mm] [mm]... -
Page 13: Electronic Device Features
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.2.4 Electronic device features PROTECTION DEGREE IP 67 POWER SUPPLY 6 Vdc – 4,5 Ah rechargeable internal battery, standard, range of about 60 hours. 12 Vdc with external power supply 100 ÷ 240 Vac (50÷60 Hz)/12 Vdc standard. MAXIMUM POWER 5 VA. -
Page 14: Load Cell Features
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.2.5 Load cell features The load cell is of the strain gauge type, with temperature compensation. The main technical features are: Precision and repeatability conform to the OIML R60 recommendation. Precision: 0,8% of the Full Scale capacity (F.S.). High precision and repeatability. -
Page 15: Remote Control: Keys And Commands
ANTENNA Swivelling and inclinable NOTE: For details regarding the configurations and use of the radio module contact the Dini Argeo Assistance Centre. The device manual can be downloaded from the www.diniargeo.com internet web site or requested to the Assistance Centre. -
Page 16: General Safety Norms
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.3 GENERAL SAFETY NORMS The user must respect the manufacturer’s prescriptions of the crane scale; one must respect the prescriptions requested by the manufacturer of the lifting device, and those highlighted in the eventual safety data sheet of the product which must be weighed. -
Page 17: Organisational Measures Of The User Company
- When one notices anomalies while using the electronic crane scale, IMMEDIATELY stop all operations and do not reuse the instrument until the instrument has been submitted to specific controls by specialised and authorised personnel or by Dini Argeo service assistance personnel. Incorrect use, but reasonably foreseeable, by untrained people entails a non acceptable residual risk. -
Page 18: Indications And Warnings Regarding The Crane Scale
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.3.4 Indications and warnings regarding the crane scale - It is strictly FORBIDDEN for non authorised personnel to enter in the operating zone. - It is strictly FORBIDDEN to walk or halt below or near suspended loads. - It is strictly FORBIDDEN to exceed the nominal capacity of the crane, the scale or of any load support element fixed to the scale. -
Page 19: Indications And Bans For Working In Safe Conditions
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 1.3.5 Indications and bans for working in safe conditions - It is FORBIDDEN to use the equipment for lifting or transporting people. - It is FORBIDDEN to pull or drag loads, but only to apply vertical forces. - DO NOT exceed the rated capacity of the crane, scale or any bearing element attached to the scale. -
Page 20: User Manual
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 2 USER MANUAL 2.1 USER 2.1.1 Professional features The staff assigned to the electronic crane scale and all activities related to it must: - Have appropriate physical and mental characteristics; - Be an expert or have sufficient knowledge on lifting equipment and be trained in the proper use of scales; - Be familiar with the requirements of labour protection and accident prevention in the field;... -
Page 21: Description Of The Machines And Controls
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 2.2 DESCRIPTION OF THE MACHINES AND CONTROLS 2.2.1 Power supply – Start-up – Switch-off The instrument is powered by a 6 VDC internal rechargeable battery. It is possible to charge the battery through the 12V power adapter (supplied) which should be connected to the 230 Vac mains voltage. -
Page 22: Front Panel Keys And Indicators
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 2.2.2 Front panel keys and indicators The front panel is projected in order to make easy and immediate use of the indicator by the user; it consists of a display 6 DOT LED 40mm high digits, 7-LED indicators and a waterproof film keypad at 5 keys. Indicates the presence of power supply. - Page 23 MCW09 PROFESSIONAL MCW09_03_12.01_EN_U SCALE KEY FUNCTION - Zeros the displayed gross weight, if it is within +/- 2% of the total capacity. - Cancels the negative tare value - When entering numbers it decreases the digit to be modified. - If pressed for a long time, it allows to enter the MENU of the user (see paragraph “USER MENU”).
-
Page 24: Basic Functions
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 2.3 BASIC FUNCTIONS 2.3.1 Functioning with remote control “19-key” infrared remote control The command system is “directive”, therefore the receiving measurement device must be “in view”; the maximum functioning distance is 8 m. With this type of remote control, the functioning of the keys will be as described in the following table. -
Page 25: Functioning
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 2.4 FUNCTIONING 1) Suspend the instrument from the crane it will be used on and press push-button “C” for a few seconds: all segments on the display will light for a few seconds as the MCW conducts a lamp and other self-tests. 2) After the self-tests, if the display shows a non-zero value without a load on the scale, press the "ZERO”... -
Page 26: Functioning Modes
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 2.4.2 Functioning modes SWITCH Kg / Lb Press STANDARD SWITCH NET / GROSS Press NET / GROSS TYPE Press 2 sec SETPOINT VALUE IN / OUT IN WEIGH OUT WEIGH Press Press TYPE TYPE ALIBI MEMORY Press REWRITING ID TOLERANCE CHECK Press... -
Page 27: Technical Information
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 3 TECHNICAL INFORMATION 3.1 PACKAGING, TRANSPORT, HANDLING, STORAGE, AND INSTALLATION 3.1.1 Packaging During the transport, the instrument is shipped in a standard protective wooden box. In the packaging of the "MCW09" instrument, the following material is supplied: - 2 lifting safety pin shackles (versions MCW09T35, MCW09T35 and MCW09T55). -
Page 28: Transport, Handling, Storage
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 3.1.2 Transport, handling, storage In the transport of electronic crane scales, it is necessary to use their wooden boxes ready to protect the instrument from any cut or damage during transportation. The realization of the box provides the lift by forks to make the instrument handling easier. -
Page 29: Maintenance And Verifications
To ensure a safe operation, follow these instructions: - carry out a continuous regular maintenance and cleaning. - entrust the maintenance and repair operations only to trained and authorized personnel or to the Dini Argeo service dept. - use only original spare parts. - Page 30 MCW09 PROFESSIONAL MCW09_03_12.01_EN_U For further information on regular checks, see the following table: COMPONENT PART CONTROL LIMIT REMEDY SOLUTION • Loosening Locking bolts Tightening • Deformation Pivot • Wear Shackle Shackle • Deformation surface • Positioning Full insertion of Split pin the split pin in the pivot •...
-
Page 31: Maintenance Registry
It is also advisable to make sure that: - the internal responsible person carries out the quarterly verification and regularly records it on this booklet; - the Dini Argeo authorised personnel stamps the appropriate box at the end of each annual maintenance intervention. NOTE: This manual is an integral part of this instrument, and therefore it is necessary that it accompany each maintenance operation or instrument return. -
Page 32: Clean
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 3.2.4 Clean If the electronic crane scale is often used in different places, especially in places with the presence of dust and moisture, it is necessary to have the instrument regularly cleaned. Clean the keyboard of electronic crane scale with a soft damp cloth with a detergent or a mild detergent solution. CAUTION!! Do not use any type of solvent or industrial chemical product while cleaning the instrument and all the system parts. -
Page 33: Electronic Crane Scale Battery: Instructions And Recharge
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 3.2.6 Electronic crane scale battery: instructions and recharge As mentioned earlier, the power supply in MCW09 electronic crane scale is provided through a rechargeable 6V - 4,5 Ah, to be included in the box on the back of the equipment (see section “MAIN COMPONENTS”). In order to prevent problems with the battery, it is recommended to remove the battery from the load cell, if the electronic crane scale is not used for a long time so as not to cause damage to both the battery and the crane scale itself. -
Page 34: The Battery Recharge By Optional Kit
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 3.2.7 The battery recharge by optional kit If there would need to use the MCW09 crane scale constantly, it is possible to request an optional kit including a spare battery pack and charger adapter. To perform a battery change and development its functions, perform the following steps: 1) Screw out the socket head screws on the back of the instrument. - Page 35 MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 4) Unplug the connector automotive AMP from the battery pack. 5) Connect the charger to the battery pack by the auto-motive AMP connector.
- Page 36 MCW09 PROFESSIONAL MCW09_03_12.01_EN_U Insert the power supply (12Vdc) to the network at 230Vac and plug the charger by the connection jack. Once the battery is charging, it is possible to connect the spare battery pack to the crane scale. CAREFUL!! The battery recharge must be performed using only the power supplied (12Vdc) supplied with the instrument.
-
Page 37: Decommissioning And Disposal
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U PHASE OF THE BATTERY RECHARGE BY CHARGER ADAPTER The charger’s led indicate the charge level reached: DESCRIPTION When lit, it indicates the presence of voltage. When lit, it indicates the presence of the battery; it means that the battery is connected correctly to the charger. -
Page 38: Warranty
MCW09 PROFESSIONAL MCW09_03_12.01_EN_U 4 WARRANTY The two years warranty period begins on the day the instrument is delivered. It includes spare parts and labour repair at no charge if the instrument is returned prepaid to the dealer’s place of business. Warranty covers all defects not attributable to the Customer (such as improper use) and not caused during transport.
