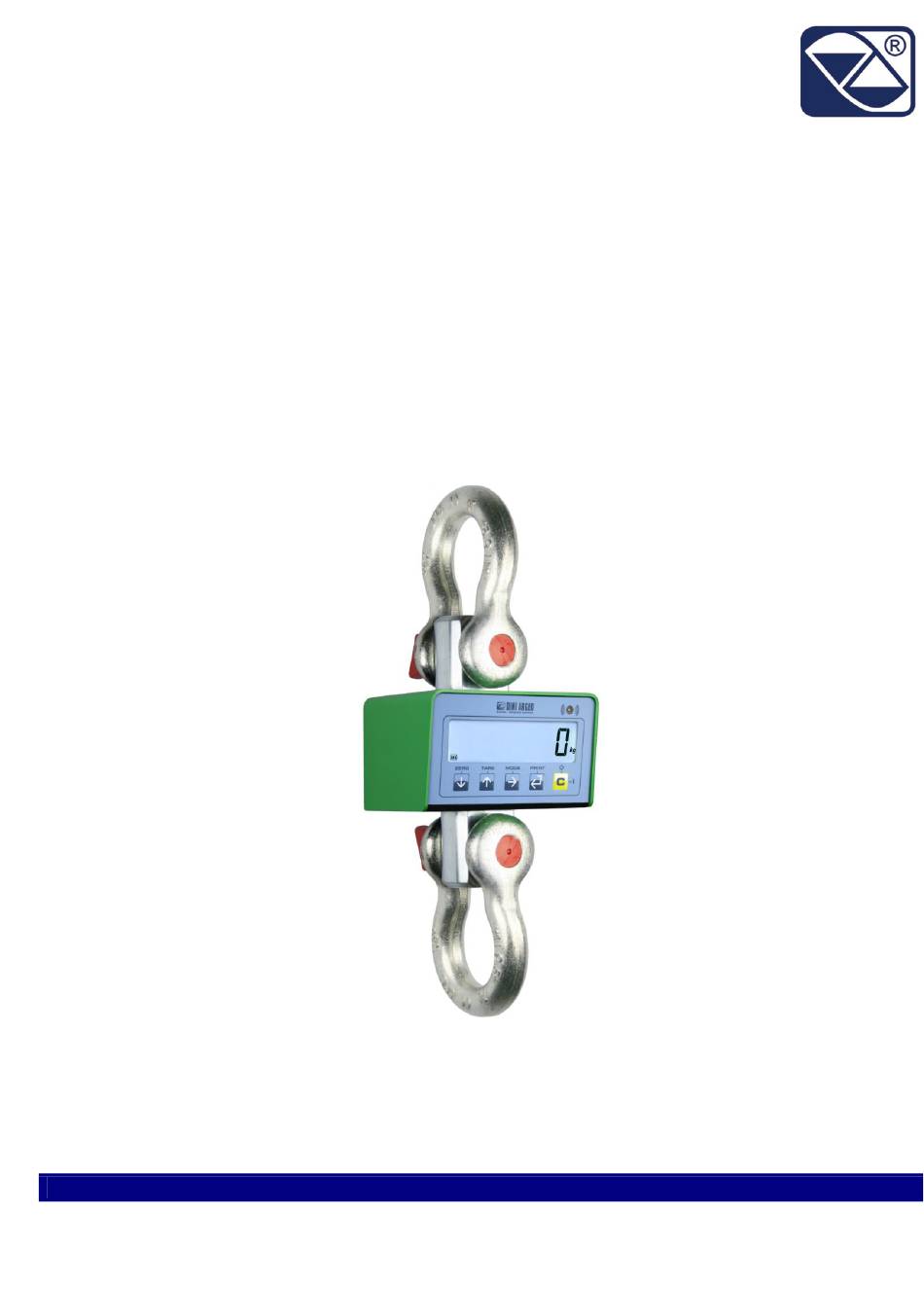

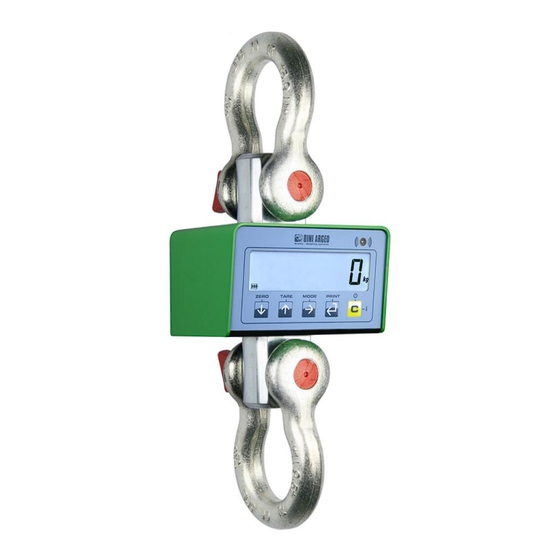

- Page 1 USER MANUAL ELECTRONIC CRANE SCALE MCWN “NINJA” MCWN_03_16.07_EN_U...
-
Page 2: Table Of Contents
MCWN INDEX 1 GENERAL INFORMATION ............................... 3 1.1 INTRODUCTION ..................................3 1.1.1 Designation of the machine and manufacturer data ......................3 1.1.2 Premises .................................... 3 1.1.3 Symbols....................................4 1.1.4 General Instructions ................................5 1.1.5 User: Professional features ..............................5 1.1.6 Location ....................................5 1.1.7 Clothing and equipment .............................. -
Page 3: General Information
1.1 INTRODUCTION Dear Customer, We thank you for choosing a Dini Argeo product and we invite you to carefully read this manual before carrying out any operation on the instrument that you have purchased. It is of utmost importance that the main checks and maintenance or repair interventions be recorded in the appropriate section of the SAFETY MANUAL AND DYNAMOMETR’S MAINTENANCE. -
Page 4: Symbols
MCWN 1.1.3 Symbols Please find below the symbols in the manual which recall the operator’s attention, in regards to the various danger levels. The danger levels will be subdivided in four classes of importance: Concept or procedure which, if not carried out DANGER !! accurately, causes the danger or harsh personal injuries in case of accident. -
Page 5: General Instructions
MCWN 1.1.4 General Instructions The warnings shown in this manual recall the ATTENTION OF THE OPERATOR in regards to information or procedures which advise the best use of the equipment in order to: work safely; lengthen the duration and functionality; avoid the damages or loss of the programming;... -
Page 6: Declaration Of Conformity
MCWN 1.1.8 Declaration of conformity The declaration of conformity is available for each product. It can be downloaded through the serial number from the dedicated section on www.diniargeo.com 1.1.9 Markings On the equipment, in relation to the allowed use, one will find a label on which there are shown the metrological and technical information as well as the relative CE marking of the instrument. -
Page 7: Periodic Metrological Verification
MCWN Markings on the load cell: In which: CE marking Name of the series or model of the load cell Serial number (sn) Maximum useful load (maximum capacity) With the issuing of the July 22nd, 2005 nr. 151 decree-law, relative to the European Directive 2002/96/EC in regards to the Waste Electrical and Electronic Equipment (known as WEEE), the relative manufacturers are called to intervene and manage the life cycle end of their introduced products. -
Page 8: Technical Features Of The Weighing System
MCWN 1.2 TECHNICAL FEATURES OF THE WEIGHING SYSTEM 1.2.1 Main components A: body in which there is the tension load cell; B: shackle for connection between the lifting device hook and the load cell; C: shackle for connection between the load cell and the load-gripping devices; D: electronic device for converting the signal coming from the transducer into a weight unit, with measurement display, and command and adjustment systems;... -
Page 9: Safety Manual And Dynamometr's Maintenance
MCWN In the MCWN electronic crane scale, the electrical power supply is supplied through 4 AA batteries, to be inserted in the appropriate battery box. E: represents the battery box and the relative direction for its insertion inside the MCWN electronic scale. F: represents the insertion hole in which one should insert the battery box. -
Page 10: Description Of The Machines And Controls
MCWN 2 DESCRIPTION OF THE MACHINES AND CONTROLS 2.1 POWER SUPPLY-START UP-SWITCH OFF The instrument is supplied by 4 AA type batteries, to put in the battery box. TO TURN ON the instrument press the C key until the indicator turns on; then release. The display shows in sequence: XX.YY is the installed software version. -
Page 11: Front Panel Keys And Indicators
MCWN 2.2 FRONT PANEL KEYS AND INDICATORS The front panel of the indicator is designed for quick but simple weighing applications. It consists of a display to 6 digits 25mm high, a film waterproof keyboard with 5 keys. During the weighing, different symbols indicating the status of multifunction operation are also activated (see section “SYMBOLS ON THE LCD DISPLAY”). -
Page 12: Symbols On The Lcd Display
MCWN 2.3 SYMBOLS ON THE LCD DISPLAY The LCD display has symbols which show the indicator’s functioning status; you will find the description for each symbol below. NUMBER SYMBOL FUNCTION The weight detected on the weighing system is near zero, within the interval of –1/4 0... - Page 13 MCWN (13) The number of pieces is being displayed. (14) Indicates the unit of measure in use (“kg” for kilogram, “g” gram). (15) Indicates the percentage of the weight on the scale (“Sample Weight Percentile” functioning mode) (16) Indicates the unit of measure in use (tons). (17) Indicates the unit of measure in use (pounds).
-
Page 14: Basic Functions
MCWN 2.4 BASIC FUNCTIONS 2.4.1 Functioning with remote control “19-key” infrared remote control The command system is “directive”, therefore the receiving measurement device must be “in view”; the maximum functioning distance is 8 m. With this type of remote control, the functioning of the keys will be as described in the following table. -
Page 15: Functioning
MCWN 2.5 FUNCTIONING 1) Suspend the instrument from the crane it will be used on and press push-button “C” for a few seconds: all segments on the display will light for a few seconds as the MCW conducts a lamp and other self-tests. 2) After the self-tests, if the display shows a non-zero value without a load on the scale, press the "ZERO”... -
Page 16: Functioning Modes
MCWN 2.5.2 Functioning modes... -
Page 17: Technical Information
MCWN 3 TECHNICAL INFORMATION 3.1 TRANSPORT, HANDLING, STORAGE, AND INSTALLATION 3.1.1 Transport, handling, storage When transporting the electronic crane scale, it is required to use their case, which protects the instrument from any knocks or shocks during their transport. Transportation must be made taking into account of the fact that the appropriate case should not be compressed from any external objects on the side or from above. -
Page 18: Clean
MCWN 3.2. CLEAN If the electronic crane scale is often used in different places, especially in places with the presence of dust and moisture, it is necessary to have the instrument regularly cleaned. Clean the keyboard of electronic crane scale with a soft damp cloth with a detergent or a mild detergent solution. CAUTION !! Do not use any type of solvent or industrial chemical product while cleaning the instrument and all the system parts. -
Page 19: Electronic Crane Scale Batteries: Instructions And Replacement
MCWN 3.2.2 Electronic crane scale batteries: instructions and replacement As mentioned above, the power supply of the MCWN electronic crane scale is provided by 4 AA type batteries, to be inserted inside battery box. In order to avoid problems with the batteries, it is recommended to take into account the following instructions: - do not mix together different types and/or old and new batteries. -
Page 20: Decommissioning And Disposal
MCWN 3.3 DECOMMISSIONING AND DISPOSAL Each consumer should help protect the environment by reducing pollution risks and adopting a responsible attitude, according to the recycling norms in force in the country where the instrument is used. The symbol of the crossed garbage on the product indicates that, at the end of its useful life, the product must be given to appropriate centres for collection or returned to the distributor when purchasing a new equivalent product. -
Page 21: Warranty
MCWN 4 WARRANTY The two years warranty period begins on the day the instrument is delivered. It includes spare parts and labour repair at no charge if the instrument is returned prepaid to the dealer’s place of business. Warranty covers all defects not attributable to the Customer (such as improper use) and not caused during transport.
