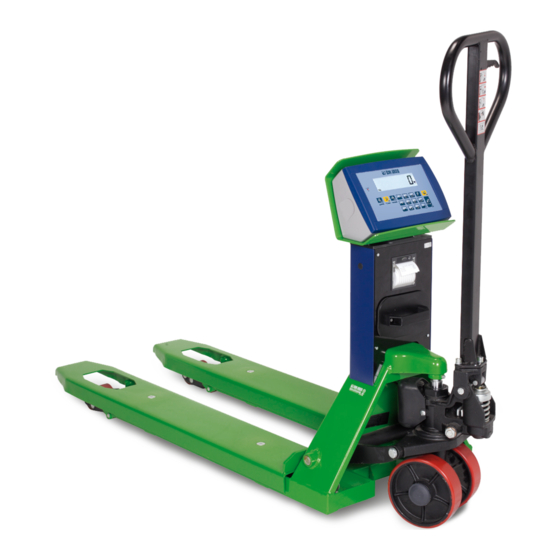

  • Page 1 Pallet truck with integrated scale ENGLISH USER, INSTALLATION, MAINTENANCE INSTRUCTIONS - v4 www.diniargeo.com...

  • Page 3: Table Of Contents

    Contents Contents IDENTIFICATION Identification of the Manufacturer Machine identification Identification plate EC Declaration of Conformity Reference directives PRELIMINARY INFORMATION Recipients Supply and storage Updates Language Operators Symbols used inside the manual Personal protective equipment Warranty SAFETY DEVICES Noise Vibrations Residual risks Safety pictograms applied to the machine DESCRIPTION Intended use (correct)
  • Page 4 Contents PACKAGING AND HANDLING Packaging and handling warnings Packaging Packaging handling Packaging removal Packaging disposal ASSEMBLY Assembly warnings Assembly procedure Descent adjustment COMMANDS Tiller commands Display Keyboard types General warnings for correct use Pallet truck conditions Checks before use Display switch-on Pallet truck positioning Load lifting and weight reading How to replace the roll...
  • Page 5 Contents Set a known tare value (PT) Print Metrics ADDITIONAL FUNCTIONS FOR MODELS WITH NUMBER KEYPAD 30-tare log Automatic tare deletion Number IDs Date and time Print (and reprint of last receipt) Metrics ADVANCED SCALE FUNCTIONS How to access the function menu Horizontal accumulator Mixing several components Piece count...
  • Page 6 Contents TROUBLESHOOTING CASES Error messages USER_MAN_ENG_TPW_v4...
  • Page 7 Introduction Dear Customer, Thank you for choosing a DINI ARGEO product. The manual weighing pallet truck that you have purchased is ideal for handling and weighing pallets or standardised containers directly where they are located, saving you time and money.

  • Page 8: Identification

    The identification details of the machine, to be cited to the Support Centre if required, are provided on the plate. Mod. TPWLKP-5 UK 2945 0100574294 6V DC Dini Argeo - v. Fisica, 20 - 41042 Fiorano (MO) Italy B1W1 B1W2 B1W3 500 kg 1000 kg...

  • Page 9: Ec Declaration Of Conformity

    EC Declaration of Conformity The EC Declaration of Conformity is available on: www.diniargeo.com DICHIARAZIONE DI CONFORMITA’ DECLARATION OF CONFORMITY KONFORMITÄTSERKLÄRUNG DÉCLARATION DE CONFORMITÉ DECLARACIÓN DE CONFORMIDAD Fabbricante: DINI ARGEO srl Manufacturer: Via della Fisica,20 Hersteller: Fiorano Modenese (MO) Italy Fabricant: Fabricante: Modello:...

  • Page 10: Reference Directives

    Reference directives The machine supplied by DINI ARGEO does not fall within one of the categories of machines listed in Annex IV of the Directive; therefore, for the purposes of certifying conformity of the machinery with the provisions of this Directive, DINI ARGEO shall apply the conformity assessment procedure with internal check on the manufacture of the machinery, as set out in Annex VIII.

  • Page 11: Preliminary Information

    (even in case of movements, sale, lease, rental, etc..); DINI ARGEO declines any liability for improper use of the machine and/or damage caused as a result of operations not covered by the technical documentation.

  • Page 12: Language

    Preliminary information Language The original manual has been drawn up in Italian. Any translations into additional languages must be carried out starting from the original instructions. The Manufacturer considers himself responsible for the information contained in the original instructions; translations in different languages cannot be fully verified, therefore if an incongruity is detected, it is required to follow the original text or contact the Support Centre.

  • Page 13: Personal Protective Equipment

    Preliminary information Personal protective equipment When working near the machine, both for assembly operations and for maintenance and/or adjustment, it is strictly required to comply with the general accident-prevention regulations, therefore it will be important to use the personal protective equipment (PPE) required for each individual operation. The complete list of personal protective equipment (PPE) that may be required for the different procedures is provided below: Symbol...

  • Page 14: Warranty

    • maintenance must be carried out in the times and in the ways required by the manual, using original DINI ARGEO spare parts and entrusting the operations to qualified personnel.

  • Page 15: Safety Devices

    Safety devices SAFETY DEVICES Noise Noise measurements have been carried out in accordance with the provisions of standards UNI EN 11200 and UNI EN ISO 3746. During the operating cycles, under conditions of perfect functioning and maintenance and on a smooth industrial surface, noise exposure of the personnel is less than 70 dB .

  • Page 16: Safety Pictograms Applied To The Machine

    Stickers and safety plates are applied to the machine, as shown in the following table. Refer to the image for positioning. Pos. Pictogram Description Mod. TPWLKP-5 UK 2945 0100574294 6V DC Dini Argeo - v. Fisica, 20 - 41042 Fiorano (MO) Italy CE IDENTIFICATION PLATES B1W1 B1W2 B1W3 500 kg 1000 kg 2000 kg 4 kg...

  • Page 17: Description

    Description DESCRIPTION Intended use (correct) The machine in question is intended for industrial use for: • the weighing and handling of objects placed on Europallet. Max Europallet capacity permitted: MODEL CAPACITY TPWN 2000 kg TPWP 2500 kg TPWLK 2000 kg TPWA 2000 kg TPWI...

  • Page 18: Obligations And Prohibitions

    (consult the paragraph “Environmental conditions permitted”). WARNING! DINI ARGEO is not liable for damage to things or people if it is ascertained that the machine has been used in a non permitted environment. USER_MAN_ENG_TPW_v4...

  • Page 19: Technical Data

    Description Technical data TPWN Material PAINTED STEEL Fork dimensions 1150 x 550 x 87 mm * Weight 110 kg Wheels GUIDE WHEELS AND DOUBLE LOADING WHEELS IN POLYURETHANE * 2000 kg Max capacity IP Degree Power supply BATTERY, 4 “AA” TYPE Printer Keyboard 5 KEYS...
  • Page 20 Description TPWET Material PAINTED STEEL Fork dimensions 1150 x 550 x 85 mm * Weight 125 kg GUIDE WHEELS AND DOUBLE LOADING WHEELS IN POLYURETHANE * Wheels Max capacity 2000 kg IP Degree 65 (ONLY VERSIONS WITHOUT PRINTER) Power supply WITH REMOVABLE BATTERY Printer OPTIONAL...
  • Page 21 Description TPWLKI Material STAINLESS STEEL Fork dimensions 1180 x 550 x 80 mm * Weight 135 kg GUIDE WHEELS AND DOUBLE LOADING WHEELS IN NYLON * Wheels Max capacity 2000 kg IP Degree 68 (ONLY VERSIONS WITHOUT PRINTER) Power supply WITH NON REMOVABLE INTERNAL BATTERY Printer OPTIONAL (IP65)

  • Page 22: Environmental Conditions Permitted

    Description Environmental conditions permitted The environment in which the machine must be used is an internal environment protected from weathering such as rain (except IP versions), hail, snow, fog, suspended dust, combustible dust and must not be classified and protected from aggressive agents such as corrosive vapours or excessive heat sources.

  • Page 23: Main Components

    Description Main components The machine is made up of the following main components: Pos. Component LOADING FORKS LOAD CELLS STEERING WHEELS DOUBLE LOADING WHEELS TILLER WITH MULTIFUNCTION LEVER FIXED OR ADJUSTABLE MULTIFUNCTION WEIGHT INDICATOR RECHARGEABLE BATTERY BUILT-IN PRINTER from 80 or 85 mm to 180 or 200 mm USER_MAN_ENG_TPW_v4...

  • Page 24: Rechargeable Battery

    Description Rechargeable battery Depending on the model purchased, the Pallet truck can be equipped with: • battery drawer (AA type) (A), • internal rechargeable battery (B), • removable rechargeable battery (C). The battery life depends on the model, if from 10 to 80 hrs. RECHARGEABLE PILE BATTERIES...

  • Page 25: Optional Components

    Description Optional components The machine can be equipped with the following optional components: Component Description and Image SWIVEL COLUMN Ensures maximum display reading comfort. 160° 160° (standard depending on model) USB PORT Enables to store all completed weighing operations on memory stick. (depending on model) ANTENNA Fixed antenna for wireless data transmission.
  • Page 26 Description BRAKE Pedal parking brake unit installed on steering wheels. INTEGRATED THERMAL It allows to print the receipt or the label, which in turn can be customised. PRINTER USER_MAN_ENG_TPW_v4...

  • Page 27: Packaging And Handling

    PACKAGING AND HANDLING Packaging and handling warnings WARNING! DINI ARGEO is not liable for damage, to things or people, caused by accidents due to failure to follow the instructions provided in this manual. WARNING! Use lifting equipment with a capacity suitable for the weight to be lifted.

  • Page 28: Packaging

    Packaging and handling Packaging The pallet truck is transported disassembled and packaged inside a cardboard box with a strapped pallet. The TPWLKI and TPWLKW models on the other hand, are transported fully assembled on a pallet and strapped to it. Upon receiving the packaged machine, the customer must verify that there is no damage caused by the mode of transport or by the personnel in charge of the specific operations.

  • Page 29: Packaging Removal

    Packaging and handling Packaging removal To remove the packaging, proceed as follows: Place the packaging containing the machine in the place of destination. 2. Remove the machine parts from the packaging and place them on a flat surface. 3. Proceed with assembly operations (refer to chapter “ASSEMBLY”). WARNING! The TPWLKI and TPWLKW models on the other hand, are transported fully assembled on a pallet and strapped to it.

  • Page 30: Assembly

    ASSEMBLY Assembly warnings WARNING! DINI ARGEO is not liable for damage, to things or people, caused by accidents due to failure to follow the instructions provided in this manual. IMPORTANT! Assembly operations must only be carried out by specialised and trained personnel, who are qualified to carry out these activities.

  • Page 31: Assembly Procedure

    Assembly Assembly procedure The machine is delivered divided into 3 parts: • tiller, • column, • carriage. To assemble the parts, proceed as follows: A. Place the column on the base of the carriage and fix it by using the 4 bolts supplied. USER_MAN_ENG_TPW_v4...
  • Page 32 Assembly B. Assemble the tiller “version 1” or “version 2”, depending on the pallet truck model purchased. VERSION 1 B.1. Make sure the lifting lever is in “lowered” position. B.2. Position the tiller vertically above the carriage, making sure that the chain falls at the hole. B.3.
  • Page 33 Assembly VERSION 2 B.5. Position the tiller vertically above the carriage, making sure that the chain falls at the hole. Then insert the pin into the side hole. B.6. Insert the split pins to lock the pin. B.7. Hook the chain to the specific locking lever. B.8.
  • Page 34 Assembly C. Install the battery in the specific compartment. The battery can be connected to the machine by means of: • with connection cable (C.1), • snapping on (C.2). When connecting the battery by using a connecting cable, after connecting the cable, place the battery in the specific compartment.

  • Page 35: Descent Adjustment

    Assembly Descent adjustment The machine is already adjusted for correct operation. However, should it be required to perform descent adjustment, refer to the procedure described below: A. Place the forks at the maximum height. B. Place the tiller control lever in POS. 1 (centre). C.

  • Page 36: Commands

    Commands COMMANDS Tiller commands The raised load is moved forwards or backwards by the tiller, which controls the steering wheels. The tiller can be used in the following conditions: Condition Image Mode TRANSPORT The tiller is completely free for transport manoeuvres. AT THE CENTRE LIFTING Pull the tiller downwards to start up the lifting pump.

  • Page 37: Display

    Commands Display Pos. Icon Description Indicates that the scale is unloaded and at zero (gross). Indicates that the weight is unstable. Displays the time. The net weight is displayed. Note: there is a saved tare. 5 / 6 The gross weight is displayed. Indicates the battery level: Metrics are displayed.

  • Page 38: Keyboard Types

    Commands Keyboard types KEYBOARD FOR DFWLKI INDICATOR KEYBOARD FOR DFWK06 INDICATOR KEYBOARD FOR 3590EGTXP INDICATOR KEYBOARD FOR DFWL-1 INDICATOR Button Description • Resets the weight on the scale. • If pressed for a long time (2 sec), it is possible to set the brightness of the display. •...
  • Page 39 Commands Performs the function (followed by pressing a number). If on, it indicates that the instrument is charging (for battery powered instruments). It allows to quickly set a numerical value. WARNING! For a clearer view and advanced functions related to the keys and operating modes, see the chapter “BASIC SCALE FUNCTIONS”...

  • Page 40: Use

    General warnings for correct use WARNING! Pay attention during manoeuvring operations as the tiller has an upright return system. USER_MAN_ENG_TPW_v4...
  • Page 41 ONLY LIFT FROM STATIONARY* IMPORTANT! The pallet truck is equipped with a dual-function tiller: traction or manoeuvre and hydraulic lift. Note: raise or lower the truck ONLY when stationary. USER_MAN_ENG_TPW_v4...

  • Page 42: Pallet Truck Conditions

    Pallet truck conditions Condition Description The pallet truck is on, loaded and the forks are raised from the ground. The pallet truck is on, loaded and the forks in lowered position. In this condition it does not matter whether the pallet truck is loading or unloading.

  • Page 43: Checks Before Use

    Checks before use Before using the pallet truck, check that: • the forks do not show evident damage; • the area of use is clear of any obstacles; • no consumables losses are present in the area under the machine; •...

  • Page 44: Pallet Truck Positioning

    Pallet truck positioning Position the pallet truck under the load to be weighed, as shown in the figure below. IMPORTANT! With approved scale, you can perform weighing on EUR pallet 800 x 1200 mm (UIC standards 435-2 and UIC 435-4 ref.). Load lifting and weight reading Lift the load, as shown in the figure below.

  • Page 45: How To Replace The Roll

    How to replace the roll To replace the integrated thermal printer roll (if present), proceed as follows: A. Open the door by pressing the centre button. B. Put the roll in, keeping the thermal surface facing outward. C. Close the door by pressing on both sides. D.

  • Page 46: Basic Scale Functions

    Basic scale functions BASIC SCALE FUNCTIONS Start-up - On Display: Display: 0 .0 Pallet Truck Condition: Pallet Truck Condition: Shutdown - Off Display: Display: 0 .0 -off- Press for 2s Pallet Truck Condition: Pallet Truck Condition: Zero Display: Display: ZERO 0.

  • Page 47: Display Brightness Adjustment

    Basic scale functions Display brightness adjustment Display: Display: ZERO brGt 0 Press for 2s Pallet Truck Condition: Setting the brightness value: Increase the value Decrease the value Confirm Automatic tare ? kg ? kg Display: Display: TARE 15 .0 Pallet Truck Condition: Pallet Truck Condition: Display: Display:...

  • Page 48: Tare Deletion

    Basic scale functions Tare deletion Display: Display: TARE -15 .0 Pallet Truck Condition: Pallet Truck Condition: Set a known tare value (PT) 15,0 kg ? kg Display: Display: TARE 00015.0 Press for 2s Pallet Truck Condition: Setting the tare value: Increase / Decrease the value...

  • Page 49: Print

    Basic scale functions 120,0 kg 15,0 kg If the pallet truck has a number keypad, it is possible to enter the tare quickly: Enter the tare value: TARE Print Display: Display: PRINT 120.0 print Pallet Truck Condition: Pallet Truck Condition: NUM.

  • Page 50: Metrics

    Basic scale functions Metrics Display: Display: INFo Press for 4s Pallet Truck Condition: Pallet Truck Condition: 2000 USER_MAN_ENG_TPW_v4...

  • Page 51: Additional Functions For Models With Number Keypad

    Additional functions for models with number keypad ADDITIONAL FUNCTIONS FOR MODELS WITH NUMBER KEYPAD 30-tare log This memorises the most commonly used tares (up to 30), to simplify retrieval with quick selection. Example 10,0 kg 12,0 kg 15,0 kg HOW TO STORE A TARE Display: Display: T.01...

  • Page 52: Automatic Tare Deletion

    Additional functions for models with number keypad HOW TO RETRIEVE A STORED TARE Display: Display: Display: 135, 0 T.01 Fun 1 Pallet Truck Condition: Select the memory: Increase / Decrease the value Enter the value Display: PRINT 120,0 Pallet Truck Condition: Automatic tare deletion Display: Display:...

  • Page 53: Number Ids

    Additional functions for models with number keypad Number IDs The instrument has 2 memories for the temporary recording of numerical codes that can be used to identify the product, the operator, the batch, etc. These codes, if entered, will be shown on the receipt at the time of printing. HOW TO ENTER THE ID Display: Display:...

  • Page 54: Date And Time

    Additional functions for models with number keypad HOW TO ENABLE AUTOMATIC ID DELETION Display: Display: Display: iidn Fun 4 Pallet Truck Condition: Select the memory: Enter the value Display: Display: iidn id1L Automatic deletion disabled id1u Automatic deletion enabled: the entered ID will be deleted automatically when the pallet truck is unloaded.

  • Page 55: Print (And Reprint Of Last Receipt)

    Additional functions for models with number keypad Print (and reprint of last receipt) PRINT Display: Display: PRINT 120.0 print Pallet Truck Condition: Pallet Truck Condition: NUM. PESATA LORDO 15.000 kg TARA 3.000 kg NETTO 12.000 kg N. SCONTRINO 54321 15/11/2018 15:39:03 REPRINT OF LAST RECEIPT Display:...

  • Page 56: Metrics

    Additional functions for models with number keypad Metrics Press Display: Display: for 4s INFo Pallet Truck Condition: Pallet Truck Condition: Press for 2s 2000 USER_MAN_ENG_TPW_v4...

  • Page 57: Advanced Scale Functions

    Advanced scale functions ADVANCED SCALE FUNCTIONS How to access the function menu Display: Display: funCt MODE Press for 5 s Pallet Truck Condition: The indicator is in the configuration menu: the currently active function appears. Horizontal accumulator total Sum of the weight of several objects to obtain the total weight Mixing several components formul...

  • Page 58: Horizontal Accumulator

    Advanced scale functions Horizontal accumulator HOW TO ADD UP THE WEIGHINGS Display: Display: 50.0 PRINT Pallet Truck Condition: Pallet Truck Condition: NUM. PESATA 00000001 NETTO 50.0 kg Display: Display: PRINT 180.0 Pallet Truck Condition: Pallet Truck Condition: NUM. PESATA 00000001 NETTO 50.0 kg NUM.
  • Page 59 Advanced scale functions HOW TO MOMENTARILY READ THE TOTAL Display: MODE Number of weighings 320.0 Total weight With the number keyboard, pressing displays the current total without printing it/resetting it. HOW TO END ACCUMULATION AND RESET THE TOTAL Display: NUM. PESATA 00000001 PRINT NETTO...

  • Page 60: Mixing Several Components

    Advanced scale functions Mixing several components HOW TO ADD UP THE WEIGHINGS Display: Display: 30.0 TARE Pallet Truck Condition: Pallet Truck Condition: Display: Display: 250.0 PRINT Pallet Truck Condition: Pallet Truck Condition: NUM. PESATA 00000001 NETTO 250.0 kg Display: Display: 100.
  • Page 61 Advanced scale functions HOW TO MOMENTARILY READ THE TOTAL Display: MODE Number of weighings 350.0 Total weight With the number keyboard, pressing displays the current total without printing it/resetting it. HOW TO END ACCUMULATION AND RESET THE TOTAL Display: NUM. PESATA 00000001 NETTO 250.0 kg...

  • Page 62: Piece Count

    Advanced scale functions Piece count HOW TO SAMPLE AND COUNT Display: Display: 15.0 0 . 0 TARE Pallet Truck Condition: Pallet Truck Condition: Display: Display: MODE Press for 2 s Set the loaded reference amount Load the selected reference (5, 10, 20, ..., 200 pieces): quantity.
  • Page 63 Advanced scale functions HOW TO SWITCH FROM PIECE TO WEIGHT DISPLAY AND VICE VERSA Display: Display: 3000 300.0 MODE Pallet Truck Condition: Pallet Truck Condition: MODE You can go from counting to weighing at any time by pressing HOW TO ENTER THE AVERAGE UNIT WEIGHT (PMU) PRINT Display: Press for...
  • Page 64 Advanced scale functions TOTAL LOAD COUNT TARE Display: Press for 1000.0 PRINT Pallet Truck Condition: Manually set the tare value (pallet + container): Increase / Decrease the value Enter the value Display: Display: 985.0 MODE Press for Select desired reference quantity (5, 10, 20, ..., 200 pieces): Pallet Truck Condition: Increase / Decrease...

  • Page 65: Weight Check

    Advanced scale functions Weight check HOW TO START THE CHECK WITH KNOWN REFERENCE WEIGHT Display: MODE Press for Display: tarGet Pallet Truck Condition: Display: Display: T00000 l00000 PRINT Manually set the value: Enter the lower tolerance: Increase / Decrease Increase / Decrease the value the value Enter the value...
  • Page 66 Advanced scale functions HOW TO START THE CHECK WITH AUTOMATIC TARGET ACQUISITION Display: Display: 500. 0 l00000 MODE Press for Pallet Truck Condition: Enter the lower tolerance: Increase / Decrease the value Enter the value Display: H00000 PRINT PRINT Enter the higher tolerance: Increase / Decrease the value Enter the value...
  • Page 67 Advanced scale functions HOW TO UPDATE THE NOMINAL WEIGHT WITH KNOWN REFERENCE WEIGHT Display: Display: MODE tarGet Pallet Truck Condition: t00000 HOW TO UPDATE THE NOMINAL WEIGHT WITH AUTOMATIC TARGET ACQUISITION Display: 500.0 MODE Pallet Truck Condition: USER_MAN_ENG_TPW_v4...
  • Page 68 Advanced scale functions HOW TO EDIT THE CHECK THRESHOLDS MODE Press for Display: Display: t.min l00000 Display: Display: t . max h00000 USER_MAN_ENG_TPW_v4...

  • Page 69: Exchange Between Net Weight And Gross Weight

    Advanced scale functions Exchange between net weight and gross weight Display: Display: 15.0 TARE Pallet Truck Condition: Pallet Truck Condition: Display: Display: 100. 0 Pallet Truck Condition: Pallet Truck Condition: Display: Display: 115.0 MODE 100.0 Pallet Truck Condition: Pallet Truck Condition: MODE You can go from net weight to gross weight at any time by pressing USER_MAN_ENG_TPW_v4...

  • Page 70: Percentage Weighing

    Advanced scale functions Percentage weighing PERCENTAGE CHECK I. How to acquire the 100% reference Display: Display: 50.0 S- 100.0 MODE Press for Set the value: Pallet Truck Condition: Increase / Decrease the value Display: 100.0 PRINT Pallet Truck Condition: II. How to check the weight Display: Display: MODE...
  • Page 71 Advanced scale functions PERCENTAGE METERING Example of formula: Product: RP28K 1. 2127A3 - 50% 2. 23AB4 - 30% 3. Water - 20% Meter 500 kg Display: 10.0 ZERO Display: 0 . 0 Pallet Truck Condition: Display: 00500.0 MODE PRINT Press for Enter the total quantity to achieve: Increase / Decrease the value...
  • Page 72 Advanced scale functions Display: Display: 0 .0 30.0 TARE Pallet Truck Condition: Pallet Truck Condition: Display: Display: 0 .0 20.0 Pallet Truck Condition: Pallet Truck Condition: Display: Display: 100.0 500.0 MODE Pallet Truck Condition: Pallet Truck Condition: MODE You can go from weight in % to weight in kg at any time by pressing USER_MAN_ENG_TPW_v4...

  • Page 73: Unit Of Measurement Conversion

    Advanced scale functions Unit of measurement conversion HOW TO COVERT THE UNIT OF MEASUREMENT INTO POUNDS (STANDARD MODE) Display: Display: 50.0 110,23 MODE Pallet Truck Condition: Pallet Truck Condition: MODE You can go from weight in kg to weight in pounds at any time by pressing HOW TO CONVERT THE UNIT OF MEASUREMENT WITH FREE CONVERSION FACTOR MODE Display:...
  • Page 74 Advanced scale functions Display: Display: 50.0 MODE 110,23 Pallet Truck Condition: Pallet Truck Condition: MODE You can convert the unit of measurement with free conversion factor at any time by pressing USER_MAN_ENG_TPW_v4...

  • Page 75: Metrological Scale Information

    Metrological scale information METROLOGICAL SCALE INFORMATION 1. Turn off the scale 2. Follow the procedure: Turn on the scale and press the key while the startup messages are being displayed. 888888 888888 2 sec 2 sec Prefix: identifies the tool xx .

  • Page 76: Maintenance

    Repair or maintenance operations not contained in this manual may only be carried out with the prior authorisation of DINI ARGEO No responsibility for damage to persons or property may be attributed to DINI ARGEO for operations other than those described or carried out in ways other than those indicated.

  • Page 77: Scheduled Maintenance

    Maintenance Scheduled maintenance The machine, when delivered to the user, is already adjusted to work properly; however, in order to ensure its proper functioning over time, it is required to carry out periodic and preventive checks and maintenance. The scheduled maintenance includes inspections, checks and operations that, to prevent breakdowns, keep under control: •...

  • Page 78: Oil Level Top-Up

    Maintenance Oil level top-up Tank top-up for models with pump with plug Check the oil level every 6 months. Only use hydraulic oil (not motor or brake oil) to top-up. Oil viscosity: 30 CST at 40°C Total volume: 0.3 l A.

  • Page 79: Tank Top-Up By Means Of Syringe For Models With Mono-Block Pump

    Maintenance Tank top-up by means of syringe for models with mono-block pump Check the oil level every 6 months. Only use hydraulic oil (not motor or brake oil) to top-up. Oil viscosity: 30 CST at 40°C Total volume: 0.3 l A.

  • Page 80: Unscheduled Maintenance

    Maintenance Unscheduled maintenance For unscheduled maintenance on the machine, contact the Authorised Support Centre. WARNING! Unscheduled maintenance and repair of the machine are reserved for qualified, instructed and authorised technicians, depending on the manufacturer or authorised service centre. These operations require in-depth and specialised knowledge of the machines, of the operations required, of the risks involved and of the correct procedures to operate in safety.

  • Page 81: Troubleshooting Cases

    Troubleshooting cases TROUBLESHOOTING CASES • Another printout is already in progress (busy) • Make sure there is a roll in the printer • The printer does not switch on The scale does not • The weight is unstable (unStAb) PRINT print •...
  • Page 82 Troubleshooting cases • Check whether the weighing filter is active. The weight is • If the support surface is subjected to vibrations from machinery or mov- unstable ing vehicles, move the scale onto another surface and try again. The scale does •...

  • Page 83: Error Messages

    Troubleshooting cases Error messages MESSAGE DESCRIPTION SOLUTION Another printout is already in Wait for the printout in progress to be finished and BUSY progress try again. Check the weighing filter. If the support surface is subjected to vibrations from UNSTAB The weight is unstable machinery or moving vehicles, move the scale onto another surface and try again.
  • Page 84 Notes This publication, or portions thereof, may not be duplicated without written permission from the Manufacturer. All information contained in this manual is based on the data available at the time of its publication; the Manufacturer reserves the right to make changes to its products at any time without notice and without incurring any penalty.
  • Page 85 Notes USER_MAN_ENG_TPW_v4...
  • Page 86 Notes USER_MAN_ENG_TPW_v4...
  • Page 87 Notes USER_MAN_ENG_TPW_v4...
  • Page 88 HEAD OFFICE Authorised service centre stamp Via Della Fisica, 20 41042 Spezzano di Fiorano, Modena - Italy Tel. +39 0536 843418 - Fax +39 0536 843521 SERVICE ASSISTANCE Via Dell’Elettronica, 15 41042 Spezzano di Fiorano, Modena - Italy Tel. +39 0536 921784 - Fax +39 0536 926654 www.diniargeo.com...

This manual is also suitable for:

TpwnTpwaTpwlkTpwlkiTpwlkwTpwi ... Show all
