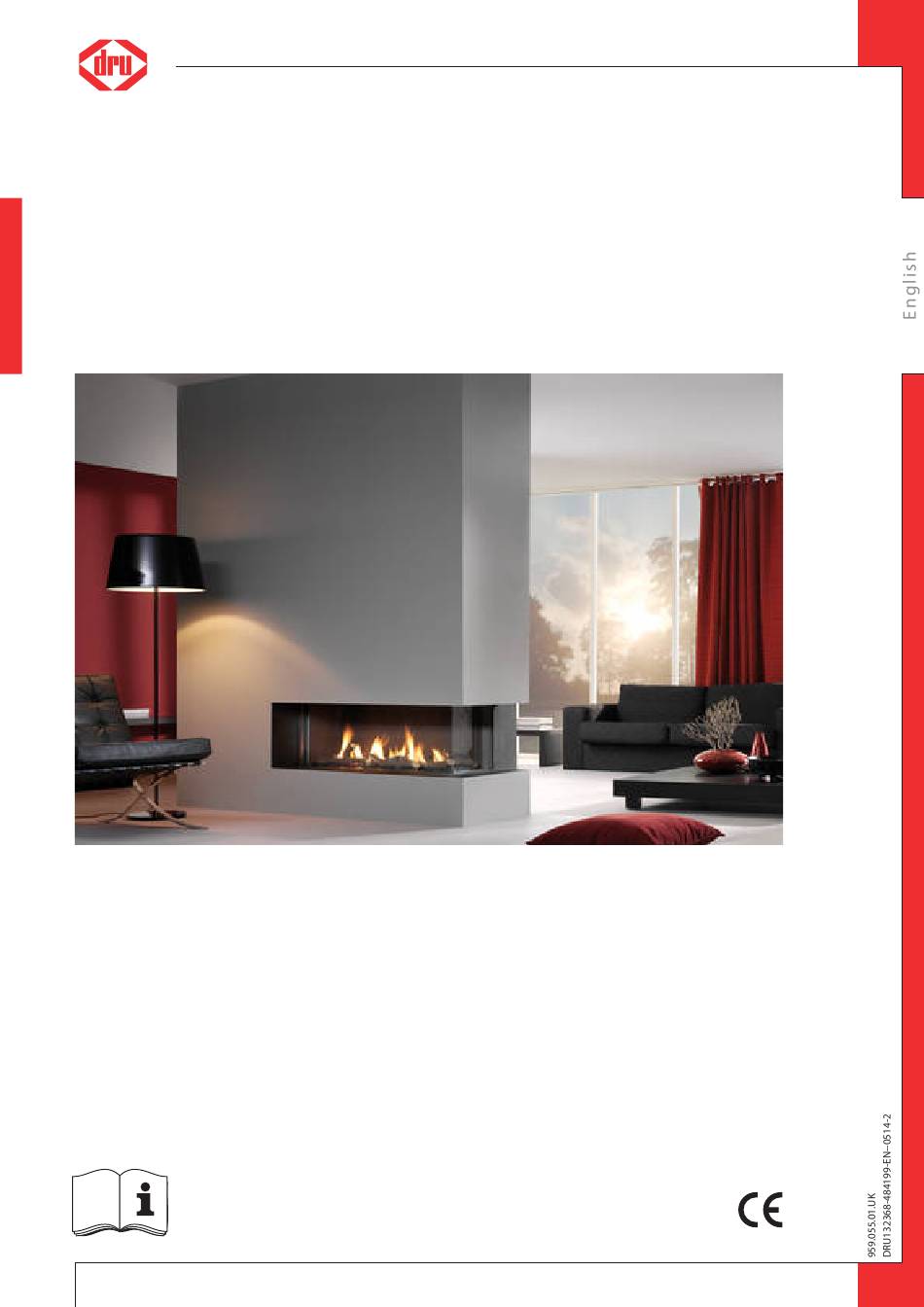

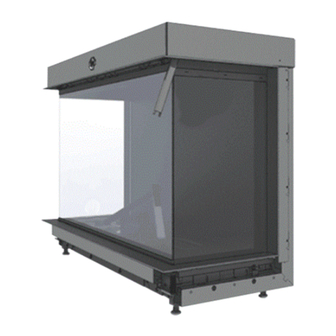

- Page 1 Metro 100XT-2 RCH Metro 100XT-3 RCH G20/G25/G25.3 (Natural gas) G31 (Propane) Installation manual (UK/IE) Store this document in a safe place...
-
Page 2: Table Of Contents
I NS T AL L A TI O N MA N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4. Removing the packaging 5. -
Page 3: Introduction
Please, read and use this installation manual carefully and completely, prior to installing this appliance. If you use the DRU Powervent system®, the DRU Smartvent system® or the DRU Maxvent system®, you must carefully and fully read and use the accompanying installation manual as well, prior to its installation. -
Page 4: Safety
CE label; Ø if you are installing an appliance with closed combustion: only use the concentric systems supplied by DRU; Ø if you are installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text;... -
Page 5: Principle Of Ignition Cycle
I NS T AL L AT I ON M A N U A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The appliance is off and will be switched on by means of the remote control. The receiver will get the signal to start the ignition process. -
Page 6: Installation
It is possible to operate one or more lamps (in case of several lamps, a maximum of 8A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36). -
Page 7: Placing A Built-In Appliance
(if applicable) Not all built in appliances by DRU are supplied with a control hatch. If it is not included, this control hatch is available separately. We recommend using the Dru control hatch at all times. In this chapter, it is assumed that the appliance is used with a control hatch. -
Page 8: Placing The Control Hatch
The dimensions of the control hatch; see Placing the control hatch section 5.7; The Dru control hatch is not supplied with all appliances. Nevertheless, we recommend only using a Dru control hatch, which can be supplied separately, if necessary. If you decide not to take this option, you will... - Page 9 I NS T AL L AT I ON M A N U A L Ø Mount the bracket with components to the inner frame (A). Proceed as follows: Unwind the cables. This will, amongst other things, prevent a poor operation of the ignition. Unwind the flexible gas pipe(s).
-
Page 10: Construction Of The Concentric System
If necessary, you can also use an existing chimney (see section 5.9.4). !Caution Only use the concentric system supplied by DRU This system has been tested in combination with the appliance. DRU cannot guarantee a proper and safe operation of other systems and does not accept any responsibility or liability for this;... -
Page 11: Placing The Concentric System
The surrounding space is used to supply combustion air. The following requirements apply when connecting to an existing chimney: only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery;... -
Page 12: Additional Instructions
I NS T AL L A TI O N MA N U A L 5.10 Additional instructions Attach the appliance to the wall by means of wall brackets (B) (see Appendix 3, fig.1). !Tip Extension legs are available for this appliance. 5.11 Platform The appliance should be placed with a platform, this can be in combination with lower decorative strip or adjacent to the glass, the accompanying chimney breast can be used with or without a false wall (see Appendix 3, fig. -
Page 13: Glass Panes
I NS T AL L AT I ON M A N U A L 5.13 Glass panes After placement of the wood set, it is possible to place the glass panes: Avoid damaging the glass panes during removal/placing; !Caution Use the socket spanner supplied for loosening/tightening the self-tapping screws; If applicable, use the supplied allen key for loosening/fastening the allen screws;... -
Page 14: Adjusting The Appliance
I NS T AL L A TI O N MA N U A L 5.14 Adjusting the appliance The appliance has to be set in such a way that it works correctly in combination with the discharge system applied. For that purpose, a restrictor slide is placed and/or the air inlet guide is removed. The conditions for application with wall terminal and roof terminal are stated in Appendix 2, Tables 4, 5 and 6. -
Page 15: Placing The Wood/Pebble Set
I NS T AL L AT I ON M A N U A L 5.15 Placing the wood/pebble set The appliance is supplied with a wood set or a pebble set. The vermiculite that is used to fill the burner is black when using the wood set and has a natural colour when using the pebble set. -
Page 16: Control
I N ST A L L A T I ON M A NU AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling a receiver. -
Page 17: Connection Via 'Modbus' Protocol
Such a connection can only be established with a communication module (see Appendix 3, fig. 35 (W)). This module can be ordered from DRU. This communication module translates the ‘modbus’ protocol from the Domotics system into a wireless signal to the receiver. -
Page 18: Gas Pressure/Line-Pressure
I NS T AL L A TI O N MA N U A L 7.2 Gas pressure/line-pressure The burner pressure is set at the factory; see data plate. The line-pressure in house installations must be checked, because it can be wrong. !Caution Ø... -
Page 19: Flame Picture
I NS T AL L AT I ON M A N U A L Ø Check operation of the main burner from a cold condition. Ø If sparks are determined between the ignition electrodes, the main burner should burn within a few seconds. !Tip The flame picture and a good flame transfer can only be properly judged if the glass window is installed. -
Page 20: Delivery
I NS T AL L A TI O N MA N U A L Delivery You must explain to the user how to operate the appliance. You must give him/her instructions on putting it into operation, the safety measures, the operation of the remote control and the annual maintenance (see the User Manual). -
Page 21: Appendix 1 Malfunctions
I NS T AL L AT I ON M A N U A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact... - Page 22 IN S TA L L A TI O N M A N U A L Error messages Error code Problem Possible cause Remedy Ionization pin Replace the ionization (follow-up) defective (measure ionization current when 0) ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself.
-
Page 23: Appendix 2 Tables
I NS T AL L AT I ON M A N U A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Installation manual User manual Wood set / pebble set Glow material Restrictor slide Gauge for restrictor slide Remote control Mains lead Control hatch... - Page 24 IN S TA L L A TI O N M A N U A L Table 2: Technical data Product name Metro 100XT-2 RCH / Metro 100XT-3 RCH Type of appliance Built-in Combustion Closed combustion Supply and discharge system Concentric 150/100...
- Page 25 I NS T AL L AT I ON M A N U A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3/G31...
- Page 26 IN S TA L L A TI O N M A N U A L Table 5: Determining permissibility concentric system with roof terminal G20/G25/G25.3/ Total number of meters Total no. of meters vertical and/or sloping pipe length horiz. pipe length no bends 2 bends 3 bends...
-
Page 27: Appendix 3 Figures
I NS T AL L AT I ON M A N U A L Appendix 3 Figures 1114 1150 1035 38C-1866/0 Metro 100XT-3 RCH 1055 1138 1012 Metro 100XT-2 RCH... - Page 28 I NS T AL L A TI O N MA N U A L Tot. min Tot. min 200 cm2 200 cm2 Metro 100 XT-2 RCH Metro 100 XT-3 RCH 38c-1867 1125 1045 1135...
- Page 29 I NS T AL L AT I ON M A N U A L 1060 1020 1065...
- Page 30 IN S TA L L A TI O N M A N U A L 70 -100...
- Page 31 I NS T AL L AT I ON M A N U A L 38C-1868 d /0 1x90° 1x90° 38C-744zh 38C-744zg >0 - 3m...
- Page 32 IN S TA L L A TI O N M A N U A L...
- Page 33 I NS T AL L AT I ON M A N U A L 38C-1634 38C-1695 M (4x) 38C-1344...
- Page 34 IN S TA L L A TI O N M A N U A L 38P-0263 38P-0432 38P-0433 38P-0434 38p-0022 38p-0023 38P-0028 /1...
- Page 35 I NS T AL L AT I ON M A N U A L 38P-0262 38p-0435 38p-0256...
- Page 36 IN S TA L L A TI O N M A N U A L 38P-0258 38P-0259 38P-0436...
- Page 37 I NS T AL L AT I ON M A N U A L 38C-1760 A 38p-0438 38p-0437...
- Page 38 IN S TA L L A TI O N M A N U A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router 38p-0320 /0 – 0 – 3V...
- Page 39 I NS T AL L AT I ON M A N U A L І І І І І ...
- Page 40 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
