NEC MultiSync M-2 Series Installation Manual page 10

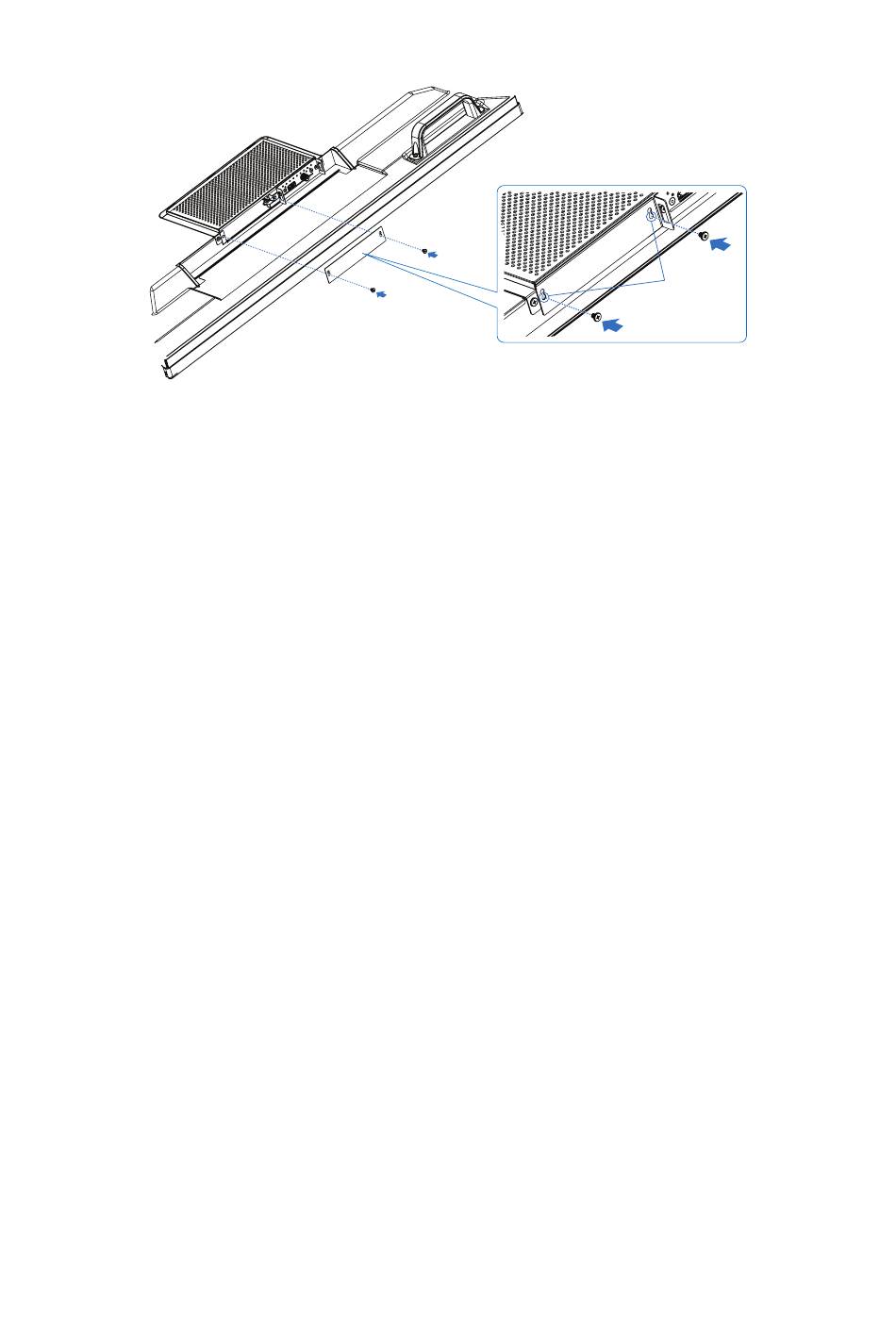

6. To close the opening of the slot you did not use, reattach the SLOT COVER ( a or b ) with the removed screws
(See Figure 1). When attaching the SLOT COVER a or b , use the holes (A) shown below in the SLOT COVER (Figure 3).



OTEE: Unless your monitor is purchased as part of a special bundle package, no Option Boards will be in the box or installed
in the monitor. These are optional accessories available for separate purchase. Please contact your supplier for a list of
Option Boards available for your monitor.

M ake sure the board is inserted into the slot in the correct orientation.

D o not apply excessive force to manipulate the Option Board before attaching it with screws.


Figure 3
English−10
(A)
