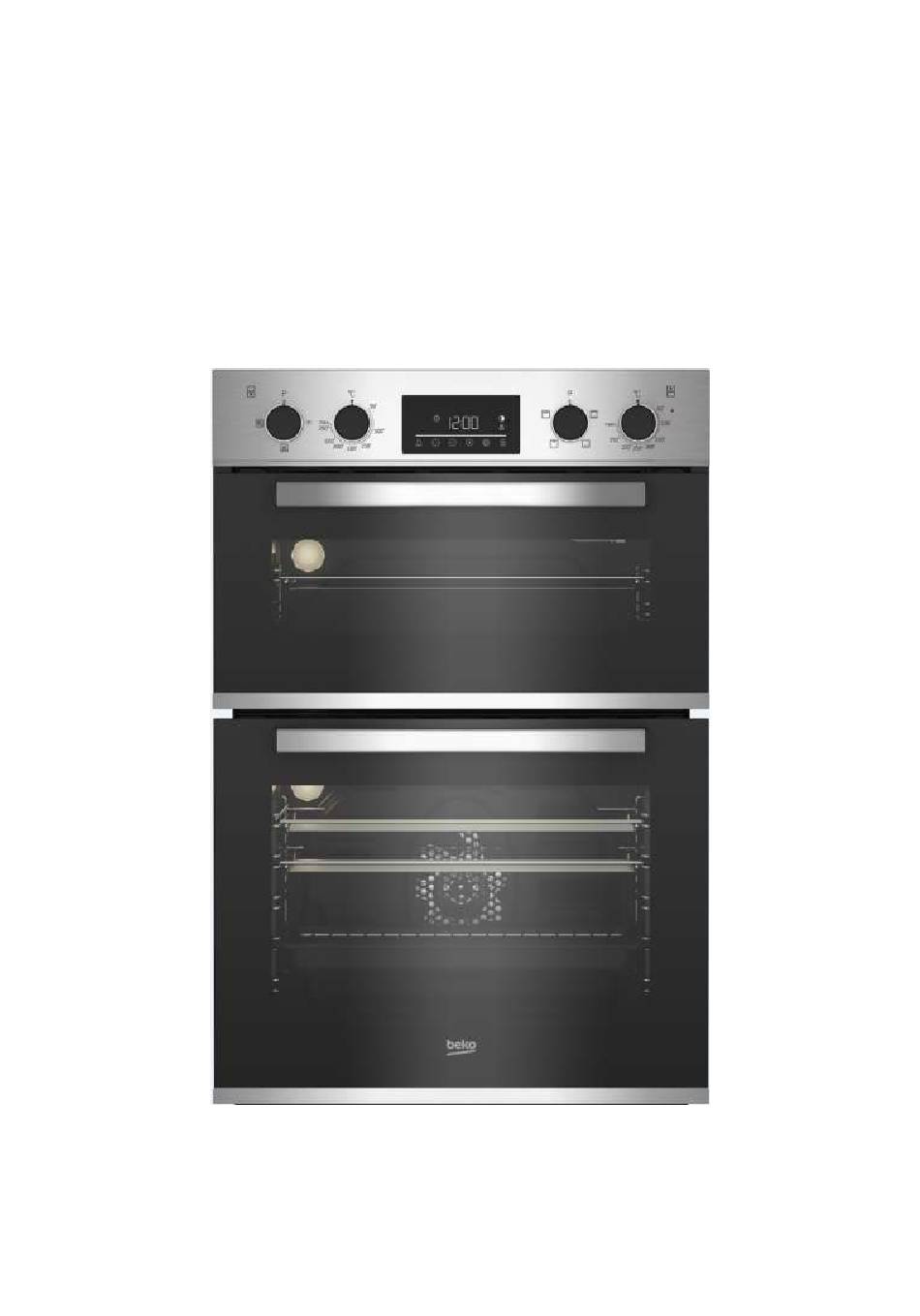

BUILT IN DOUBLE OVEN
SERVICE MANUAL
1 | EN
Sensitivity: Public

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBDF26300X and is the answer not in the manual?

Questions and answers

Related Manuals for Beko BBDF26300X

Summary of Contents for Beko BBDF26300X

  • Page 1 BUILT IN DOUBLE OVEN SERVICE MANUAL 1 | EN Sensitivity: Public...

  • Page 2: Table Of Contents

    1.COVER 2.INDEX 1. COVER 2.INDEX 1.COVER ............................2 3. SAFETY WARNING ........................4 3.1 G ..........................4 ENERAL AFETY 3.2. S ......................4 AFETY FOR ONFİGURATİONS 3.3 I ......................5 NFORMATİONS FOR ONSUMER 4. TECHNICAL SPECIFICATIONS ..................... 6 5. PRODUCT ASSEMBLY/ ASSEMBLY RULES/ SETTINGS ..............7 5.1 P ........................
  • Page 3 10.2.1 Furnace is working but the oven does not illuminate ............32 10.2.2 Oven does not work,oven lamp does not light, ..............33 10.3 T ......................... 34 ERMOSTAT AULT 10.3.1 Furnace runs continuosly,the thermostat is not tripped............ 34 10.4 T .........................

  • Page 4: Safety Warning

    3. SAFETY WARNING This section contains safety instructions that will help protect from risk of personal injury or property damage. Throughout this user manual the following symbols are used. Important information or useful hints about usage. Warning of hazardous situations with regard to life and property. Warning of electric shock..

  • Page 5: Informations For Consumer

    3.3 Informations for Consumer • Product may be hot during the usage.Do not touch with hot parts ,inside the oven,heating components etc. .When the product is working it is hot so do not put combustable materials near the product. • Do not wash the product with water! It is dangerous for electrick shock!Ürünü, üzerine s •...

  • Page 6: Technical Specifications

    4. TECHNICAL SPECIFICATIONS Refer to the product specifications manusoft. 6 | EN Sensitivity: Public...

  • Page 7: Product Assembly/ Assembly Rules/ Settings

    5. PRODUCT ASSEMBLY/ ASSEMBLY RULES/ SETTINGS 5.1 Product Transportation To carry or move the product, do not use door or handle of the product. Door, handle or hinges can be harmed. Product should be carried by two person for safety of the product and ergonomics When the product is being carried or the product is being put to the ground, do not put it keenly, do not drag it and do not skid it from...

  • Page 8: Unpacking Product

    5.2 Unpacking Product To consider product changing in the mounting process, please do not harm package, product and the product package when extracting. Extract package with a knife without harming top and bottom carton. Take the top carton. Take lathes on the product’s front and behind sides, like shown in below. 8 | EN Sensitivity: Public...
  • Page 9 Take stripers which are left and right side of the products. Symbols on the package of the products and meaning of them; Do not carry Carry the product Carry with Preserve the product in this way by Do not step on Fragile barrow in from damp...

  • Page 10: Installation

    5.3 Installation 10 | EN Sensitivity: Public...
  • Page 11 11 | EN Sensitivity: Public...

  • Page 12: Electrical Connection

    5.4 Electrical connection 12 | EN Sensitivity: Public...
  • Page 13 13 | EN Sensitivity: Public...

  • Page 14: Use Of Products

    6. USE OF PRODUCTS Control panel layout 1 Main oven function knob 2 Main oven thermostat knob 3 Digital timer 4 Top oven function knob 5 Top oven thermostat knob 6 Thermostat lamp for top oven Setting the time Always set the time of day before using your oven. If you do not set it, you cannot cook in some oven models.

  • Page 15: First Cleaning Of The Appliance

    1. When after the oven is energized for the first time, hour field "12:00" and symbol will flash on the display. 2. Set the time of day by touching / . 3. Touch key to activate the minute field. 4. Set the minute of day by touching / . 5.
  • Page 16 Select temperature and operating mode 1 Main oven function knob 2 Main oven thermostat knob Turning on the oven When you select an operating function you want to cook with using the function selection knob and set a certain temperature with using the temperature knob, the oven starts operating.
  • Page 17 Oven lamp The oven is not heated. Only the oven lamp is turned on. Possibly, the external cooling fan will also operate to avoid heating of the compartments. Top and bottom heating Top and bottom heating are in operation. Food is heated simultaneously from the top and bottom. For example, it is suitable for cakes, pastries, or cakes and casseroles in baking moulds.

  • Page 18: Using The Oven Clock

    Using the oven clock The oven clock only controls the bottom oven. It has no effect for the top oven. General warnings Maximum time that can be set for end of cooking is 5 hours 59 minutes. Program will be cancelled in case of power failure. You must reprogram the oven.
  • Page 19 Display symbols : Cooking time symbol : Cooking end time symbol* : Alarm symbol : Brightness symbol : Key lock symbol : Temperature symbol : Volume symbol : Door lock symbol* * It varies depending on the product model. It may not be available on your product. Cooking by setting the cooking time;...
  • Page 20 2. Touch until the symbol appears on the display for the cooking time. After setting the operation function and temperature, you can set the cooking time for 30 minutes by touching the key directly for quick setting of the cooking time and change the time with the keys.

  • Page 21: Settings

    If any key is pressed at the end of the audible warning, the oven will start operating again. To prevent the oven from operating again at the end of the warning, get the temperature knob and function knob to the "0"...
  • Page 22 3. After the alarm time is completed, the symbol starts flashing and gives you an audible warning. Turning off the alarm 1. At the end of the alarm period, the warning audio for two minutes. Touch any key to stop the warning audio.
  • Page 23 3. Touch key to activate the minute field. 4. Set the minute of day by touching / . 5. Confirm the setting by touching the key. » The time of day is set and the symbol disappears on the screen. 23 | EN Sensitivity: Public...

  • Page 24: By Products/Products Labels Used

    7.BY PRODUCTS/PRODUCTS LABELS USED 7.1 Accessories Standard tray Used for pastries, frozen foods and big roasts. Wire grill Used for roasting and for placing the food to be baked, roasted or cooked in casserole dishes to the desired rack. 24 | EN Sensitivity: Public...

  • Page 25: Tags And Descriptions Used In The Product

    7.2 Tags and Descriptions used in the product 7.2.1 Type the label Given information on the product nameplate label on the product gas. Sticker on the location; According to the type of product, or the product can be seen in the front door or the rear wall of the lower lid is opened.

  • Page 26: Barcode Label

    7.2.2 Barcode Label Product bar code label of the product produced in the country, defining the characteristics of the brand and model, defined lines and spaces according to the rules of international label. Barcode label location; Product packaging is pasted on cardboard. 7.3.3 Energy Label Product energy label product energy class, the label shows the volume of the product.
  • Page 27 Energy Label lacatıon; Energy label products are in a group of periodicals. 27 | EN Sensitivity: Public...

  • Page 28: General Working Principle

    8. GENERAL WORKING PRINCIPLE Mechanical control circuit used in the mechanical clock-controlled oven (Module) control of the oven function, showing the mechanical formats, such as furnace uptime, choose food from the cooking guide, cooking demonstration of recipes, automatic cooking made from the cooking guide, showing the cooking time, the timer (set the time counting backwards , making a sound when time runs out) and gives the internal temperature of the oven control facilities.

  • Page 29: List Of Components / Component Working Principle

    9. LIST OF COMPONENTS / COMPONENT WORKING PRINCIPLE 9.1 Technical specifications of the components; Grid Resistance With the control button which allows you to act and electric ovens, grill and thermostat resistor .. is controlled by the control button under the commutator. Oven Heatıng Clemens Which is controlled by the control button...
  • Page 30 Turbo Heater Turbo and multifunctional ovens, oven On the wall in the back of the chassis embedded resistor (heating element). This air is drawn over the surface with the aid of suction holes and the suction holes on the rear wall with vent holes blown.

  • Page 31: Fault Flow / Fault Finding Diagrams

    10. FAULT FLOW / FAULT FINDING DIAGRAMS 10.1.Resistance Faults 10.1.1 Resistance does not work;the food is not cooked 31 | EN Sensitivity: Public...

  • Page 32: Lamp Fault

    10.2 Lamp Fault 10.2.1 Furnace is working but the oven does not illuminate 32 | EN Sensitivity: Public...

  • Page 33: Oven Does Not Work,Oven Lamp Does Not Light

    10.2.2 Oven does not work,oven lamp does not light, 33 | EN Sensitivity: Public...

  • Page 34: Termostat Fault

    10.3 Termostat Fault 10.3.1 Furnace runs continuosly,the thermostat is not tripped. 34 | EN Sensitivity: Public...

  • Page 35: Therminal Fault

    10.4 Therminal Fault 10.4.1There is no power from the terminal does not diffuse into the electric furnace 35 | EN Sensitivity: Public...

  • Page 36: When The Fuse Blows The Oven Is Plugged Into The Wall Socket

    10.4.2 When the fuse blows the oven is plugged into the Wall socket. 36 | EN Sensitivity: Public...
  • Page 37 11.COMPONENTS CONTROL Current and power drawn by components on the product with the instrument called a multimeter measured. The current drawn by the components on the product and the power is measured with a multimeter name given instrument. For the measurement of resistance Turbo example; Multimeter to measure resistance is brought into position to measure the resistance of the resistor Turbo.
  • Page 38 The work of the look of a resistance value in the multimeter display shows that in the case. a resistance value in a secure, avometer resistance is seen. resistance value does not appear damaged. 38 | EN Sensitivity: Public...

  • Page 39: Component Assembly / Disassembly Be Used In Equipment

    12. COMPONENT ASSEMBLY / DISASSEMBLY BE USED IN EQUIPMENT Screwdrivers Needlenose Nippers 39 | EN Sensitivity: Public...

  • Page 40: Component Assembly / Di̇sassembly

    13.COMPONENT ASSEMBLY / DİSASSEMBLY NOTE: The following components disassembly operations in reverse order. Component Apply installations. Replacement of the knob Pull knob to yourself to remove. Push the new knob against the control panel. Rounded sufoces on the knobs shaft and commutators shaft must overlap. 40 | EN Sensitivity: Public...

  • Page 41: Replacement Of The Upper Cover Sheet

    Replacement of the upper cover sheet Remove 10 screws connected to the top plate of the oven. Get the sheet. 41 | EN Sensitivity: Public...

  • Page 42: Replacement Of The Control Panel

    Replacement of the control panel Unscrew two screws mounted on both right and left side of the panel. Lit the control panel until pins become free form the housing.Pull the control panel by taking care of cables.Pull the cable sockets.Away from the panel. 42 | EN...

  • Page 43: Replacement Of The Front Door

    Replacement of the front door Open the oven door. As shown in the picture,pull down the hinge clips on both sides ot the oven door. 43 | EN...

  • Page 44: Replacement The Front Door Hinge

    Position the door halt open as shown. Remove the oven door by pulling it away trom the oven as it is in the halt open position. Important: Don't forget to close the hinge clips when reassembling the door. Other wise,the door can't be closed.

  • Page 45: Replacement Of The Removable Glass Cover 2

    After removing the screws on the hinges to pull the empty slot and change with a new hinge. Replacement of the removable glass cover 2 Remove the cover upper decor. Get the glass in between. 45 | EN...

  • Page 46: Replacement Of The Handle

    Replacement of the handle Cover and insert the remaining 2 screws holding the screwdriver handle with the help of the clipboard. Replacement of the comutators Firstly,remove the knobs and disassemble the control panel. Unplug the electrical connection plugs ot the comutator to be replaced. 46 | EN...

  • Page 47: Replacement Of The Oven Thermostat

    Unbend the pins ot control panel.Demount the pin ot comutator plasic placed in to hole on the control panel.Turn the comutator plastic in clockwise direction to the plastic trom demount. Replacement of the oven thermostat First remove the thermostat knob and disassamble the conrol panel.Unbend the panel pin and demount the thermostat plastic pin trom the control panel.
  • Page 48 Turn commutator plastic clockwise direction to remove the group trom the panel. 48 | EN...

  • Page 49: Replacement Of The Thermostat Bulb

    Replacement of the thermostat bulb Thermostat bulb is placed on the right top ot the rear wall ot the cavity To reach thermostat bulb,upper and rear cover sheets should be demounted unscrew the screw ot bulb support sheet. Pull the sheet away trom the cavity. Pull the bulb away trom the support sheet.Replace the bulb with new one and do operations ot demounting in reverse order to assemble the new bulb.
  • Page 50 View ot the bulbin oven cavity can be seen in the picture. 50 | EN...

  • Page 51: Replacement Of The Bi-Metal Thermostat

    Replacement of the bi-metal thermostat DISCONNECT OR TURN OFF ALL ELECTRICAL POWER AND SUPPLY BEFORE SERVICING APPLIANCE. Bimetal thermostat has 2 screws. Screw off these with a screwdriver. Then remove and replace the thermostat with a new one. Replacement of the engine cooling To reach the cooling motor upper cover sheet should be demounted.

  • Page 52: Replacement Of The Ventilation Plate

    Replacement of the ventilation plate First replace the upper cover sheet. Unscrew 2 screws which hold the ventilation sheet metal,are placed the cavity inner ceilling. Ventilation sheet metal could be removed by pulling it as shown in the figure. 52 | EN...

  • Page 53: Replacement Of The Ventilation Thermostat

    Replacement of the ventilation thermostat Firstly remove oven cover upper sheet metal. Ventilation thermostat is tixed to ventilation hole by two screws. Change / remove ventilation thermostat by unscrew the screws. 53 | EN...

  • Page 54: Replacement Of The Rear Cover Sheet

    Replacement of the rear cover sheet Unscrew 8 screws lased for mounting the rear cover sheet and remove the sheet. Oven back wall will be side opening position. 54 | EN...

  • Page 55: Replacement Of The Side Walls

    This rear back wall can be dismount from notched. Replacement of the side walls Unscrew 7 screws and remove the free side wall. Dismount the side wall in order to remove the front side profiles. Afterwords, unscrews the three screws replace by the new one. 55 | EN...

  • Page 56: Replacement Of The Bottom Plate

    Replacement of the bottom plate Unscrew ten screws on the oven floor sheet. 56 | EN...

  • Page 57: Replacement Of The Switch

    Remove the oven floor sheet as shown in the figure. Replacement of the switch Top wall should be removed in order to diassembie the switch. Unscrew the screw which hold switch to side wall. 57 | EN...
  • Page 58 Afterwords,displaced the switch from oven side wall. Pull the switch and the change by the new one. 58 | EN...
  • Page 59 Switch 59 | EN...

  • Page 60: Replacement Of Top Heating Element

    Replacement of top heating element Dismount rear and top cover sheets. Dismount electrical connections. Grid resistance furnace connects to the chassis 2 Remove the screws with a screwdriver. 60 | EN...

  • Page 61: Replacement Of The Bottom Heating Element

    Open the front cover and ground grid resistance 2 Remove the screw that connects to the wall. Front grill idle resistance (through chassis) çıkartın.dah then a new scheme based on the electrical resistance of the terminals plug and close the rear wall. Replacement of the bottom heating element Fisrt dismount the rear cover sheet.
  • Page 62 Dismount electrical connections. Resistor connection Unscrew the screws with a screwdriver. Pull the heaters towards yourself to dismount. 62 | EN...

  • Page 63: Replacement Of The Ring Heater

    Replacement of the ring heater Firstly,remove the oven top and back wall. Disconnect the wiring for ring heater. 63 | EN...
  • Page 64 Remove the fan cover sheet by unscrewing the screws. Afterwords,unsscrew the two screws that fixed the ring heater to cavity. Take the ring heater from inside cavity.Connect the wire to terminal according to wiring diagram and close in back wall. 64 | EN...

  • Page 65: Replacement Of The Seal Oven

    Replacement of the seal oven Open the oven door. Remove the seal from hole on the cavity and replace with new one. 65 | EN...

  • Page 66: Replacement Of The Turbo Motor

    Replacement of the turbo motor Firstly,remove the oven top wall,back wall and tan cover sheet. Disconnect the wire. 66 | EN...
  • Page 67 Turbo fan Unscrew the nut and fan with the help of forceps taken. Turbo engine that connects to the chassis by removing 3 screws, replace the turbo engine. Then the electrical terminals according to the scheme of the new turbo engine and rear walls turn off your jewelry.
  • Page 68 68 | EN...

  • Page 69: Replacement Of The Terminal Box

    Replacement of the terminal box 69 | EN...
  • Page 70 With the help of a screwdriver open the terminal cover. Remove the screws and attach the new cable terminal. 70 | EN...
  • Page 71 71 | EN...

  • Page 72: Replacing The Runners

    Replacing the runners Located in the side walls of the furnace to get the wire rack wire rack wire rack bolts from the housing and replace it with a new wire rack. 72 | EN...

  • Page 73: Replacing The Oven Lamp

    Replacing the oven lamp Located in the oven to duy lamb + glass group just to change the lamp Unscrew the glass. Located in the oven replace it with a new lamp. Hear the oven light bulb with lamp + glass behind the bakery to change your senses in the upper right side of your nails unscrew the rescue.

  • Page 74: Replacement Of The Oven Square Lamp

    Replacement of the oven square lamp Located on the side walls within the chassis frame, freeing you from the lamp, remove the nail and replace it with a new one. 74 | EN...

  • Page 75: Replacement Of The Signal Lamp

    Replacement of the signal lamp Firstly remove the burner plate. Depends on the signal lamp socket, plug socket, remove the signal lamp behind the dashboard. Sticking Pull the plug and replace the signal lamp Replacement of the Glass Wool For this operation must remove the first side walls and the rear housing Disconnect the frame wire around the wire wrapped with glass wool.
  • Page 76 76 | EN...

  • Page 77: Replacement Of The Clock Display

    Glass wool loose change with a new one. Replacement of the Clock Display Clock display card is in back of the panel. You should turn the sheet metals connected to the clock with 90 degree pliers. 77 | EN...

  • Page 78: Removal Warning Light

    Removal Warning Light Pull yourself the warning lamp. Removal Switches Disconnect the cables on the commutator. Switchgear has 2 screws attached to the plastic. 78 | EN...
  • Page 79 Unscrew the plastic Switchgear counterclockwise direction. Switches can change with a new one. 79 | EN...
