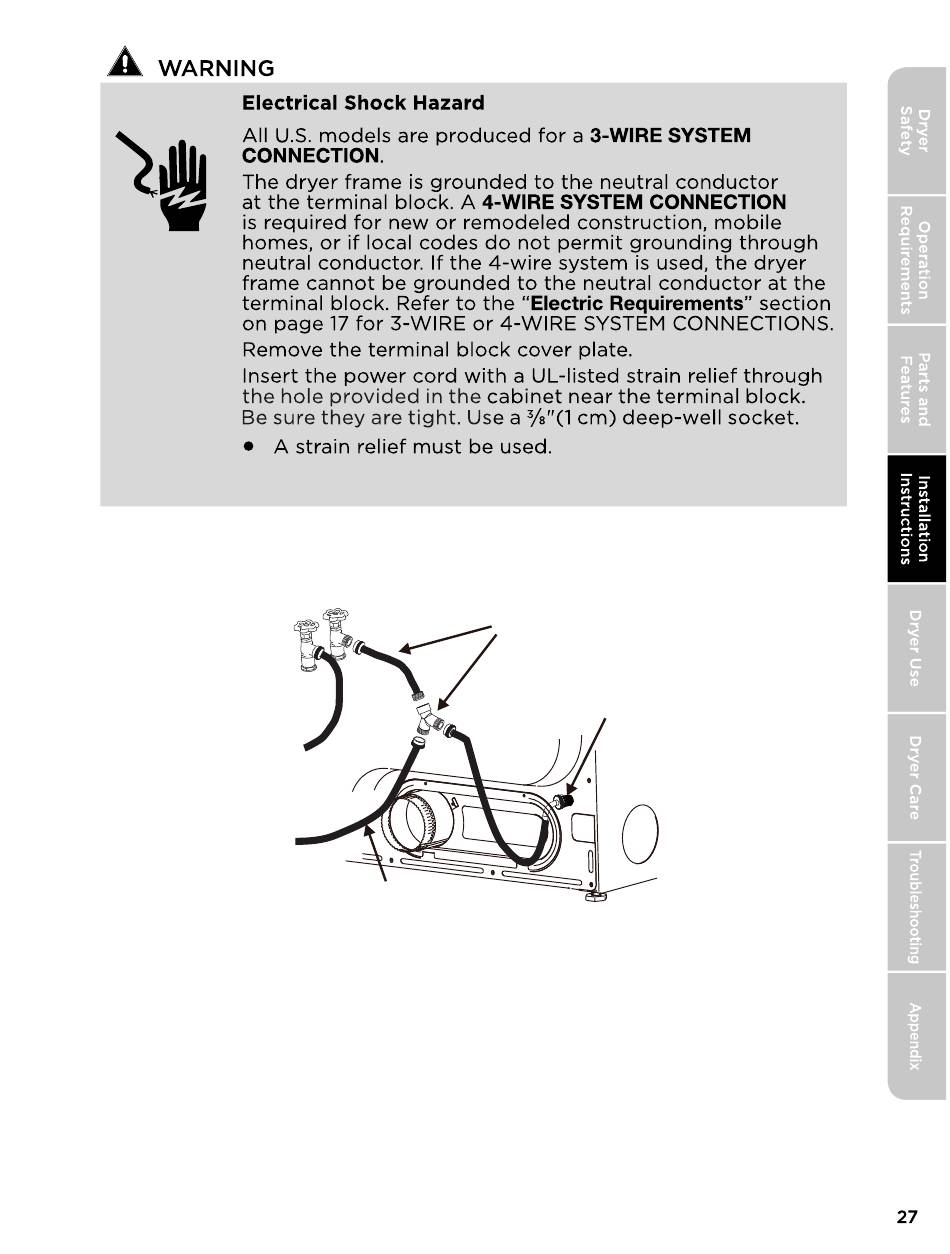

CONNECT INLET HOSES

Hot water
If possible install the "Y" connector directly, thread the short extension
hose on to the COLD water supply and snug it by hand; then tighten it
another 2/3 turn with pliers. Thread the "Y" connector to the short exten-
sion hose and snug it by hand; then tighten it another 2/3 turn with pliers.
Connect the COLD inlet hose for the washer to the "Y" connector and
snug it by hand; then tighten it another 2/3 turn with pliers.
Connect the straight end of a long hose to the other outlet on the "Y"
connector and snug it by hand. Connect the hose's 90° coupling to the
brass water inlet on the back of the dryer and snug it by hand. Tighten
each connection of the dryer inlet hose another 2/3 turn with pliers. Turn
on the water and check for leaks at all connections.
Cold water
COLD WATER SUPPLY
HOSE TO WASHER
Connect directly or use extension
hose with Y connector
Water Inlet
