Heritage Audio 500 Series User Manual

Ny style preamp with built-in lifter
Hide thumbs Also See for 500 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
500 series NY style preamp
with built-in lifter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Heritage Audio 500 Series

Summary of Contents for Heritage Audio 500 Series

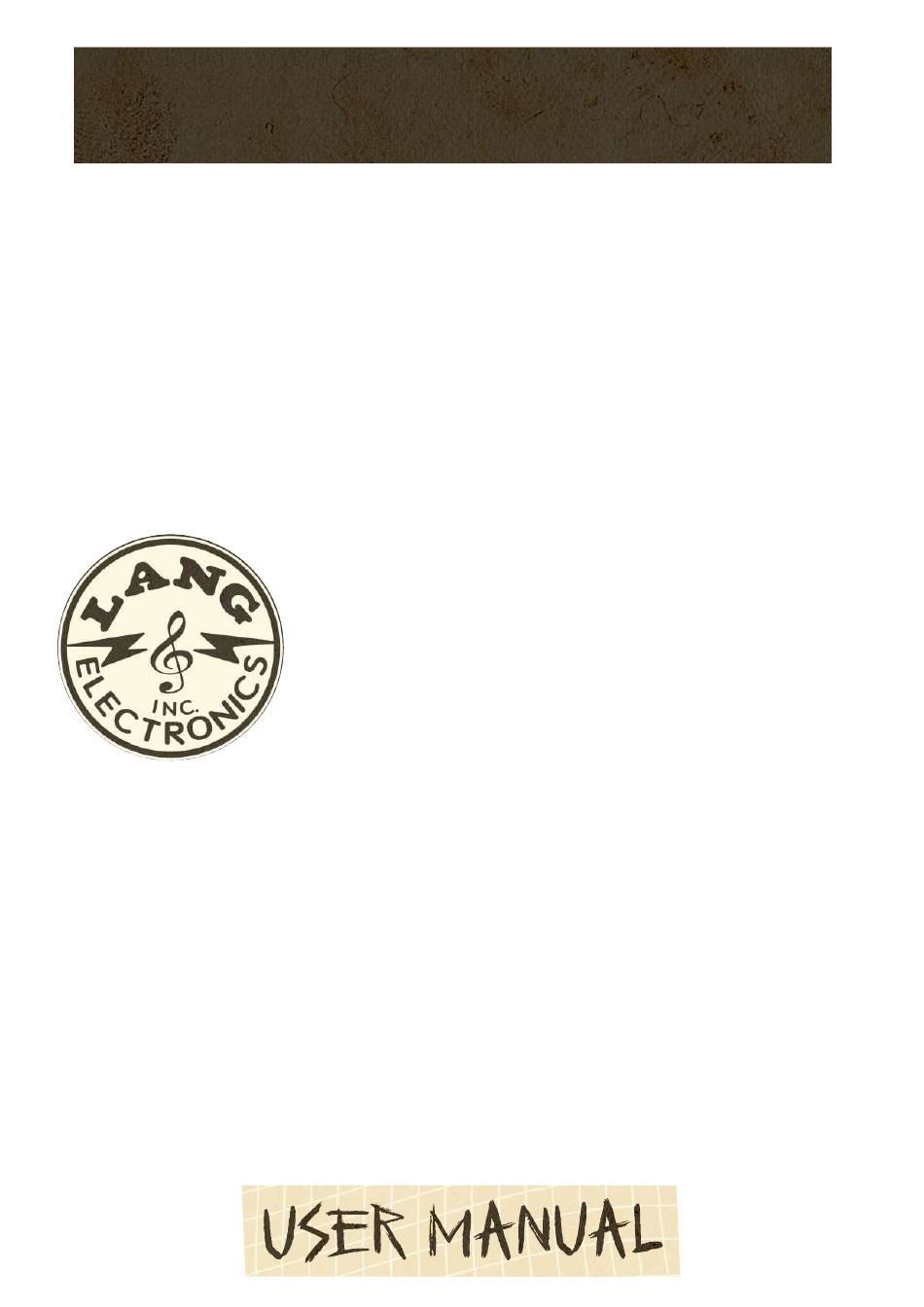

  • Page 1 500 series NY style preamp with built-in lifter...

  • Page 2: Table Of Contents

    LANG 312L USER’S MANUAL TABLE OF CONTENTS Introduction Description Getting started Applications Specifications
 T rouble Shooting Warranty Statement
 Warranty Statement
 Recall Sheet...

  • Page 3: Introduction

    Lang Electronics inc. and the LANG logo are registered Trademarks owned by Heritage audio s.l. the brand Lang Electronics inc. and the LANG logo are registered Trademarks owned by Heritage audio s.l.

  • Page 4: Description

    LANG 312L USER’S MANUAL DESCRIPTION The new LANG 312L is simply bursting with dBs…. With up to 90dBs of gain, it’s equipped with more power than almost any other Preamp out there. Now, you’ll be able to use each and every microphone in your collection without the need for any external boosting, and not even break a sweat.

  • Page 5: Getting Started

    LANG 312L USER’S MANUAL GETTING STARTED INPUT GAIN KNOB GAIN range from ribbon & SM7 +15 B to + 25 B +90 B. built-in lifter that also accomodates the signal for vintage mics PHASE Flips phase 180º +48V activates +48V of PHANTOM POWER MIC Pad activates 20 B...
  • Page 6 LANG 312L USER’S MANUAL GETTING STARTED Custom made HA-880 footprint compatible op-amp. Exclusive 2622 LANG input transformer designed by CINEMAG output Heritage Audio transformer CUSTOM made in the US. Gold Plated 500 series SLOT CONNECTOR...

  • Page 7: Applications

    LANG 312L USER’S MANUAL APPLICANTIONS Using a power hungry mic for recording through the LANG 312L OR to audio interface’s line level input RIBBON & SM7 button pushed for extra gain XLR to Mic Input XLR Output to Power hungry mic console’s line level Input...
  • Page 8 LANG 312L USER’S MANUAL APPLICANTIONS Using a ribbon mic for recording through the LANG 312L OR to audio interface’s line level input RIBBON & SM7 button pushed for extra gain XLR to Mic Input XLR Output to Ribbon Mic console’s line level Input...
  • Page 9 LANG 312L USER’S MANUAL APPLICANTIONS Using a condenser mic for recording through the LANG 312L OR to audio interface’s line level input +48V button pushed for phantom power XLR to Mic Input XLR Output to Condenser Mic console’s line level Input...
  • Page 10 LANG 312L USER’S MANUAL APPLICANTIONS Using any other mic for recording through the LANG 312L OR to audio interface’s line level input Optional use of the additional +25 dB lifter. Experimentation is encouraged! XLR to Mic Input XLR Output to Any other Mic console’s line level Input...
  • Page 11 LANG 312L USER’S MANUAL APPLICANTIONS Recording an instrument through the LANG 312L’s D.I. OR to audio interface’s line level input TS jack to D.I. Input Instrument XLR Output to console’s line level Input...

  • Page 12: Specifications

    LANG 312L USER’S MANUAL SPECIFICATIONS • Microphone input impedance: High=1200 Ω minimum; Low= 300 Ω minimum. Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics. Input is transformer balanced and floating. • Line input impedance: 10 kΩ bridging, transformer balanced and floating. •...

  • Page 13: Trouble Shooting

    LANG 312L USER’S MANUAL TROUBLE SHOOTING PROBLEMS SOLUTIONS There doesn´t appear to be any signal at all Make sure the GAIN knob is not in the ´Off´ arriving at the back XLR. position. There still doesn´t appear to be any signal at all Check to see if a jack cable has been left arriving at the back XLR.

  • Page 14: Warranty Statement

    We encourage you to register your new LANG 312L in our web in order to better manage any warranty related issues at: https://heritageaudio.com/registration/ Heritage Audio, the Heritage Audio "H" logos, LANG Electronics Inc. and the LANG Electronisc Inc. logos are registered Trademarks owned and/or licensed by Heritage Audio.

  • Page 15: Recall Sheet

    LANG 312L USER’S MANUAL RECALL SHEET Session / Title:___________ Track:__________Connected Equipment:___________ Date:_______________ Instrument: ______________ Notes:___________________...
  • Page 16 LANG 312L USER’S MANUAL www.lang-electronics.com www.heritageaudio.com...

This manual is also suitable for:

Lang 312l
