Summary of Contents for Heritage Audio 500 Series

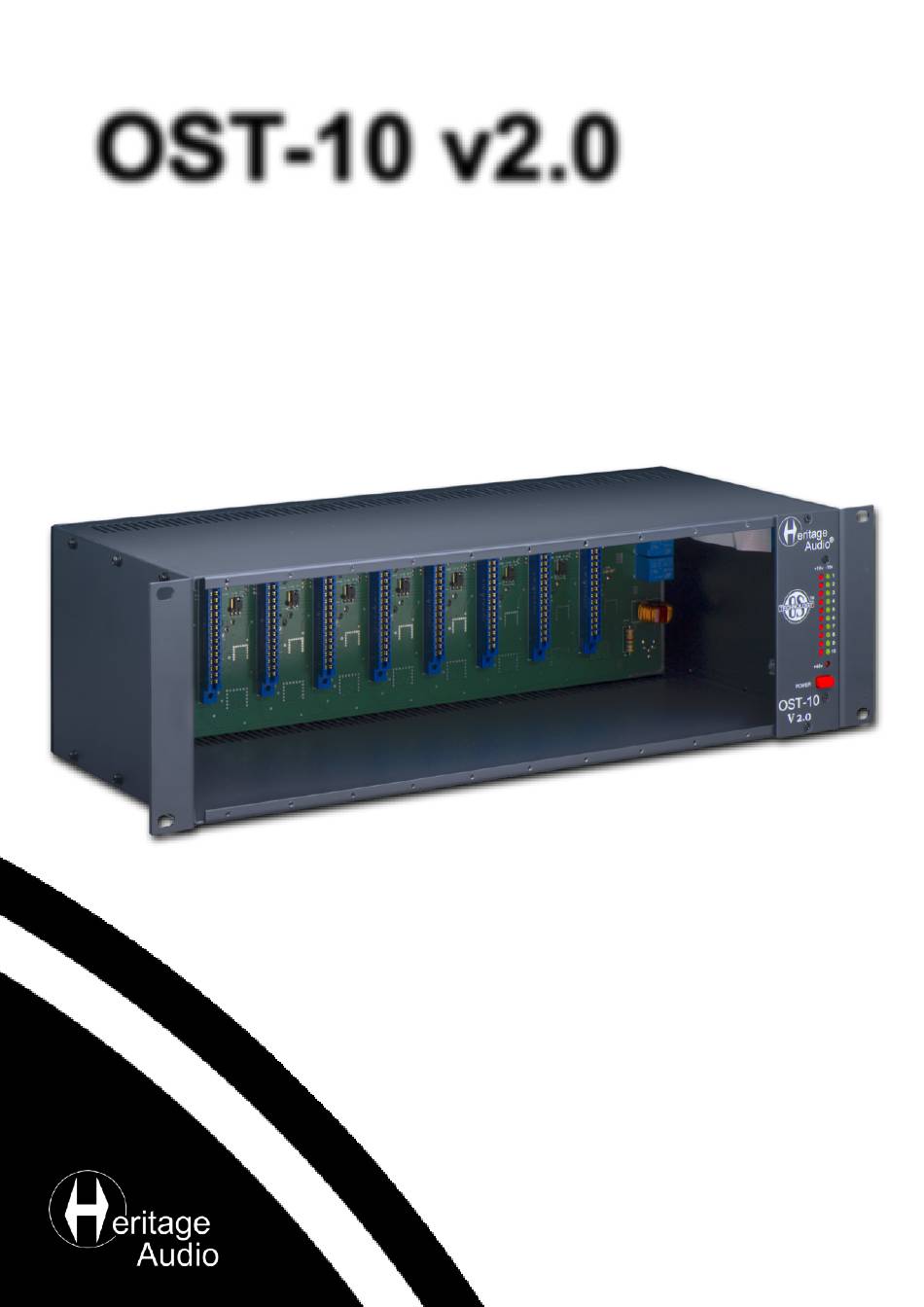

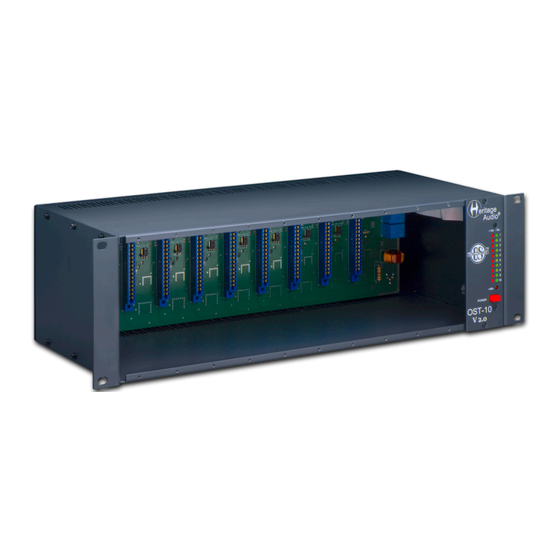

- Page 1 OST-10 v2.0 10-SLOT 500 SERIES RACK 500 Series Enclosure USER MANUAL August/2022 Rev. 1.0.
-
Page 2: Table Of Contents
Heritage Audio - Madrid, Spain © 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission. -
Page 3: Description
While a 500 Series enclosure may not seem like the most exciting thing in the studio, you’ve got to have them. It only makes sense to get one that is durable, not overpriced, compatible with any 500 Series module you may have, and most importantly, one that will bring out the cleanest and very best performance in your gear. -
Page 4: Getting Started
GETTING STARTED FRONT ON SLOT TECHNOLOGY SLOTS (6) COMPRESSION LINKS POWER SWITCH VOLTAGE LEDs Individual power per slot On Gold Plated Edge Jumpers used to determine the On front panel for easy access Verify that the correct voltage is Connectors Compression Linking between arriving at each slot (±16 V) as adjacent slots... -
Page 5: Applications
APPLICATIONS MIC PRE 73 JR II Modules not included 1 - MIC INPUT KICK 2 - MIC INPUT SNARE 3 - MIC INPUT SNARE 4 - MIC INPUT HI HAT 5 - MIC INPUT TOM 1 6 - MIC INPUT TOM 2 7 - MIC INPUT OH - L... - Page 6 D.I. 73 JR II Modules not included USB - COMPUTER D.I. INPUT MODULE 1 D.I. INPUT MODULE 2 OUTPUTS 1-2 73 JR II 73 JR II SLOT 2 SLOT 1 GUITAR FX PEDAL LINE INPUTS - AUDIO INTERFACE LINE ACTIVATE LINE SWITCH MODULE 1 & 2 73 JR II Modules not included LINE OUTPUTS...
- Page 7 LINK-EQ ACTIVATE +48 V FOR CONDENSER MIC 73 JR II & 73 EQ JR Modules not included CONDENSER MIC USB - COMPUTER ACTIVATE LINK OUTPUT 2 SWITCH (SLOT 1) INPUT 1 73 JR II 73 EQ JR SLOT 2 SLOT 1 LINE INPUTS - AUDIO INTERFACE...
-
Page 8: Specifications
SPECIFICATIONS • On Slot Technology • Maximum audio rails current: 1.8 A per rail, or 400 mA per rail per slot, whatever is reached first. • Maximum phantom power current: 140 mA. • Operating voltage: Universal 100-240 V AC. • Dimensions (W x H x L): 482 mm x 134 mm x 185 mm. •... -
Page 9: Trouble Shooting
If so, push the button again to return to the ´IND´, individual status for that slot. Trying to use several adjacent 500 series modules with Make sure you have inputted into the first slot and just one set of Input and output cables. -
Page 10: Warranty Statement
2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date. -
Page 11: Recall Sheets
RECALL SHEETS... - Page 12 HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 info@heritageaudio.com...
