Heritage Audio OST-4 User Manual

4-slot rack v2.0

Advertisement

Quick Links

OST-4 v2.0
4-SLOT 500 SERIES RACK
500 Series Enclosure
USER MANUAL
August/2022 Rev. 1.0.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OST-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Heritage Audio OST-4

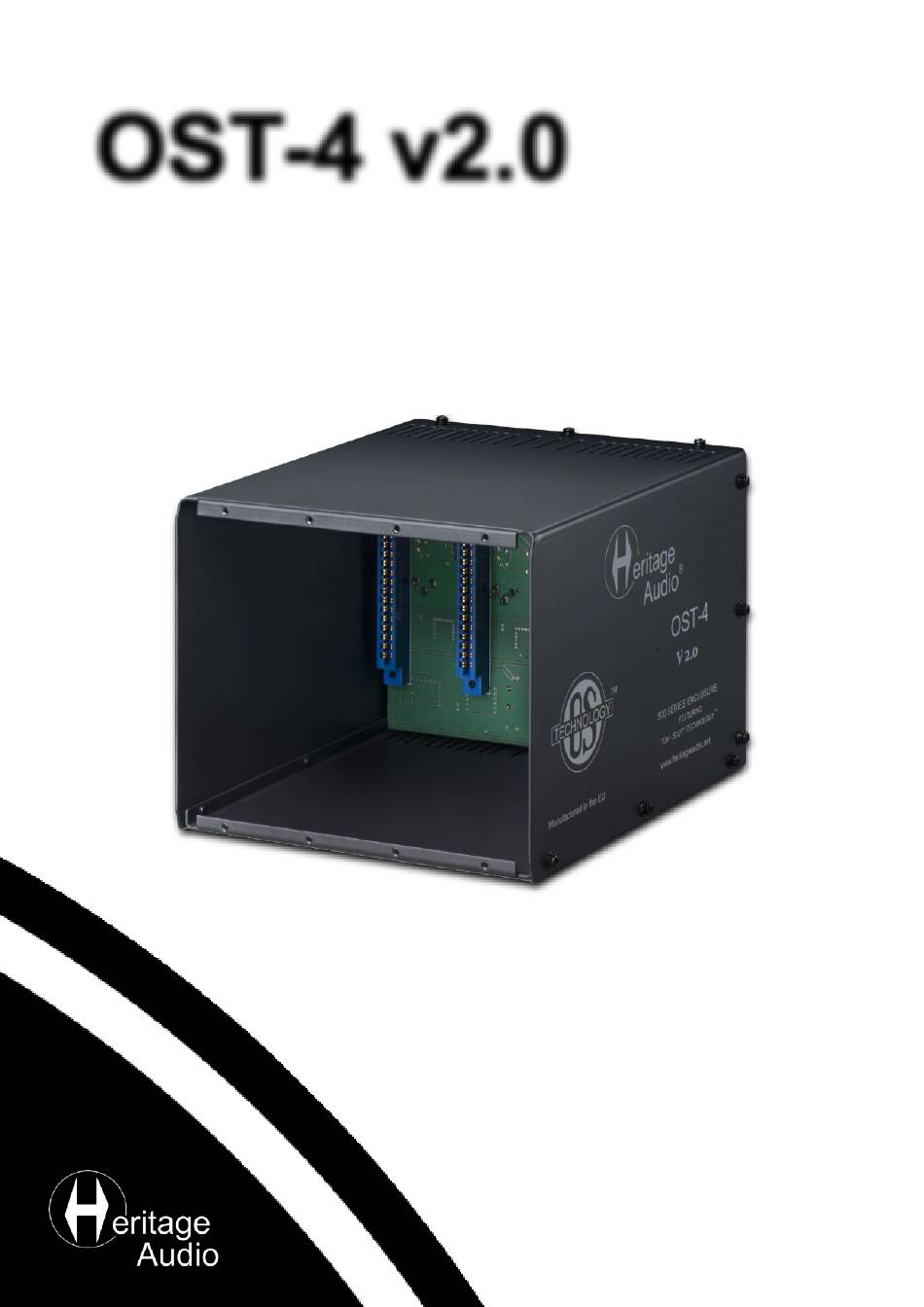

  • Page 1 OST-4 v2.0 4-SLOT 500 SERIES RACK 500 Series Enclosure USER MANUAL August/2022 Rev. 1.0.
  • Page 2: Table Of Contents

    Heritage Audio - Madrid, Spain © 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.
  • Page 3: Description

    500 Series module you may have, and most importantly, one that will bring out the cleanest and very best performance in your gear. With the OST-4 V2.0, you have a perfect solution for housing 500 Series modules in an enclosure which brings out the best of their sonic potential, in a portable, rugged enclosure that won’t break the bank.
  • Page 4: Getting Started

    GETTING STARTED FRONT ON SLOT TECHNOLOGY SLOTS (4) COMPRESSION LINKS VOLTAGE LEDs Individual power per slot On Gold Plated Edge Connectors Jumpers used to determine the Verify that the correct voltage is arriving Compression Linking between adjacent at each slot (±16 V) slots REAR INPUTS...
  • Page 5: Applications

    APPLICATIONS 73 JR II Module not included ACTIVATE +48 V FOR CONDENSER MIC CONDENSER MIC USB - COMPUTER OUTPUT 1 INPUT 1 LINE INPUT - AUDIO INTERFACE 73 JR II SLOT 1 D.I. 73 JR II Module not included USB - COMPUTER OUTPUT 1 D.I.
  • Page 6 LINE Another popular use for the ´LINE´ mode is to insert the 73 JR II on an already recorded track 73 JR II Module not included ACTIVATE LINE SWITCH USB - COMPUTER LINE MONO OUTPUT - KEYBOARD OUTPUT 1 INPUT 1 LINE INPUT- AUDIO INTERFACE 73 JR II SLOT 1...
  • Page 7: Specifications

    SPECIFICATIONS • On Slot Technology version v2.0. • Maximum audio rails current: 400 mA per rail per slot, for a total of 1.6 Amps, 1.8 non continuous. • Maximum phantom power current: 140 mA. • Operating voltage: Universal 100-240 V AC. •...
  • Page 8: Trouble Shooting

    TROUBLE SHOOTING PROBLEMS SOLUTIONS There doesn´t seem to be any power feeding the OST-4 Make sure the HA-PSU02 has been connected. v2.0. No audio seems to be getting to the modules. Double check that you have correctly connected the Inputs and Outputs for the slot.
  • Page 9: Registration

    2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date.
  • Page 10: Recall Sheets

    RECALL SHEETS...
  • Page 11 HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 info@heritageaudio.com...
