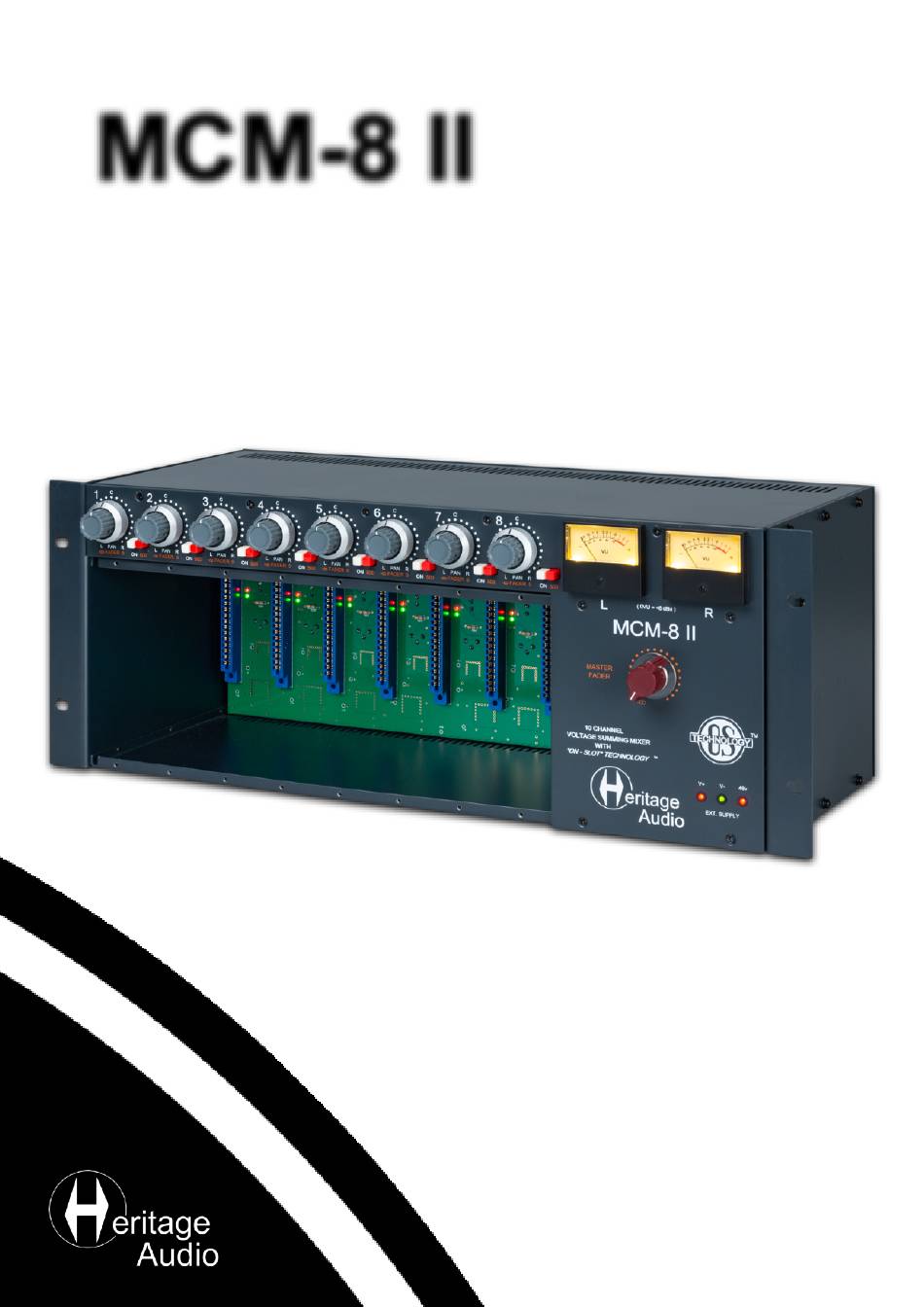

  • Page 1 MCM-8 II 8-SLOT 500 SERIES CHASSIS With Integrated 10-Channel Summing Mixer USER MANUAL August/2022 Rev. 1.0.

  • Page 2: Table Of Contents

    Heritage Audio - Madrid, Spain © 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.

  • Page 3: Description

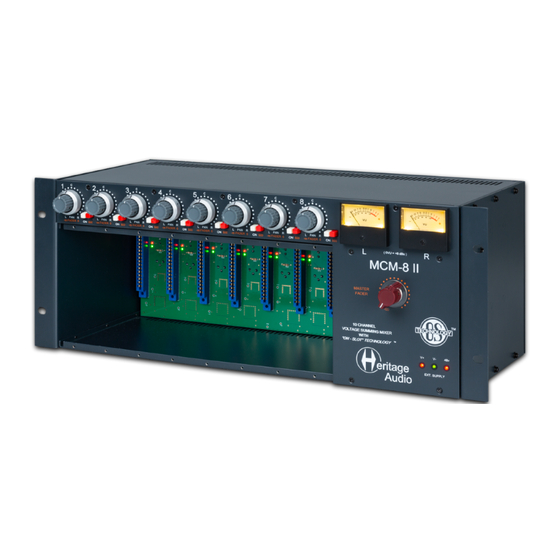

    DESCRIPTION In 2015, Heritage Audio set a new standard in 500 Series enclosures with the addition of the OST technology. Then, we introduced the MCM8, a true transformer-based voltage summing mixer for 500 Series modules. Hundreds of units later, we have taken all our customers´ feedback and included it in the new and improved version, the MCM-8 II.

  • Page 4: Getting Started

    ´On´ sends Signal to Stereo Routes the Signal Through the Calibrated at 0VU= +8 dBu From Infinity to Unity INDICATORS summing bus. 500 Series Module Confirms the Correct Voltage is arriving from the External Power Supply REAR MAIN OUTPUTS L&R AUX INPUTS L&R...

  • Page 5: Applications

    APPLICATIONS RECORDING 73 JR II Modules not included Make sure the ´500´ button is pressed to activate the 500 Series module. (73 JR II) 1 - MIC INPUT KICK 2 - MIC INPUT SNARE SNARE 3 - MIC INPUT 4 - MIC INPUT HI HAT 5 - MIC INPUT TOM 1...
  • Page 6 SUMMING USB - COMPUTER Make sure the ´On´ button is pressed to send the signal on to the Stereo Bus for summing. SUMMED OUTPUTS L&R LINE INPUTS - AUDIO INTERFACE MCM-8 II INPUTS 1-8 MULTITRACK OUTPUTS 1-8...
  • Page 7 SUMMING PROCESSING Make sure the ´500´ button is pressed to activate the 500 Series module. (73 JR II) USB - COMPUTER Make sure the ´On´ button is pressed to send the signal on to the Stereo Bus for summing. 73 EQ JR Modules not included MCM-8 II INPUTS 1-8 (DB25)

  • Page 8: Wiring For Db25 Connectors

    WIRING FOR DB25 CONNECTORS All DB25 multi pin connectors are TASCAM protocol. This same protocol is also used by AVID amongst many others, and is a follows: Pin-out for TASCAM DB25 8 Channel Balanced Connector H = HOT C = COLD G = GROUND The list of the DB25 connectors used and their corresponding channels are as follows: CHANNEL INPUTS 1-8:...

  • Page 9: Specifications

    SPECIFICATIONS MIXER SECTION • Channel Input Impedance: 20 kΩ. • Maximum input level: Over +27 dBu. • Maximum output level: Greater than +26 dBu into 600 Ω. • Frequency response: ±0,5 dB 20 Hz to 20 kHz. • THD + N: Not more than 0,07 % from 50 Hz to 10 kHz at +20 dBu output (80 kHz bandwidth) into 600 Ω. •...

  • Page 10: Trouble Shooting

    You have the option to use the pair of AUX IN L & R Inputs to connect another MCM-8 II giving you a total of 16 inputs with processing by 500 Series modules. All summed together into a Stereo Mix (OUTPUT L & R).

  • Page 11: Warranty Statement

    2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date.

  • Page 12: Recall Sheets

    RECALL SHEETS...
  • Page 13 HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 info@heritageaudio.com...
