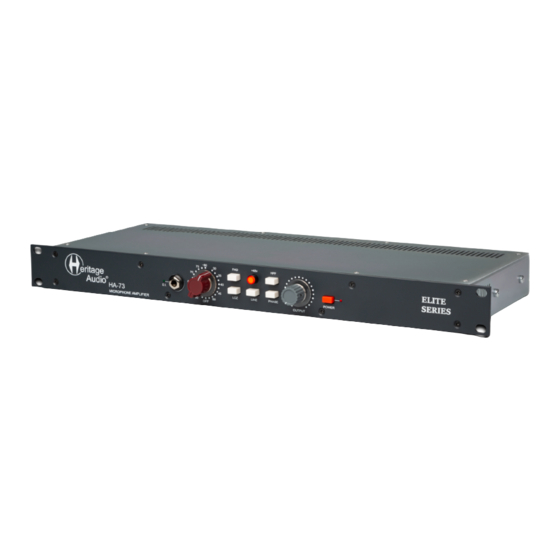

HA-73
MONO MICROPHONE PREAMP
ELITE SERIES
USER MANUAL
August/2022 Rev. 1.0.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heritage Audio ELITE Series

Summary of Contents for Heritage Audio ELITE Series

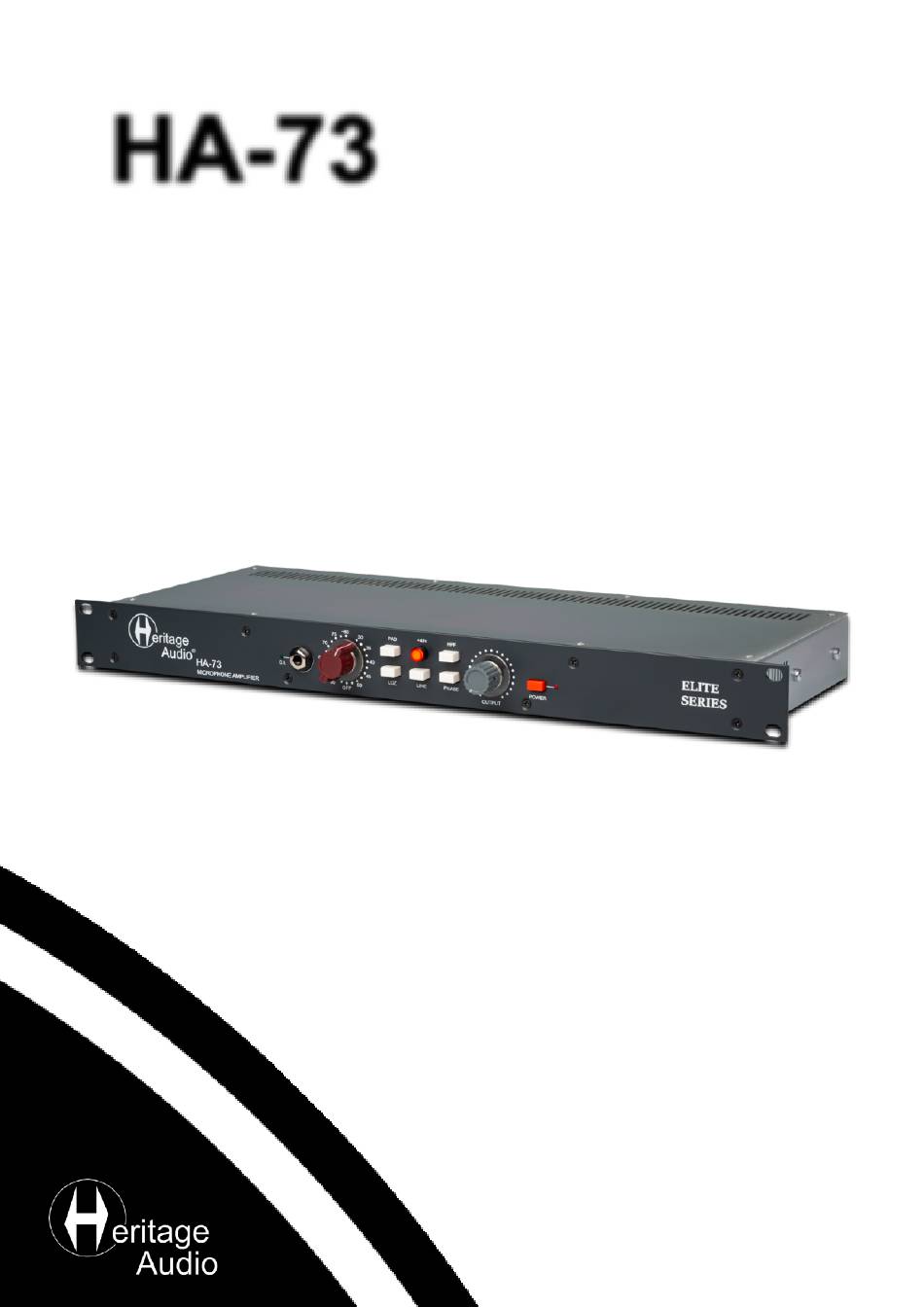

  • Page 1 HA-73 MONO MICROPHONE PREAMP ELITE SERIES USER MANUAL August/2022 Rev. 1.0.

  • Page 2: Table Of Contents

    Heritage Audio - Madrid, Spain © 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.

  • Page 3: Description

    A combination of lean manufacturing, modern construction techniques and mass production, minimizes hand labor and therefore its high associated costs when manufacturing takes place in Western Europe. By passing the savings straight into the end users´ pockets, Heritage Audio releases the most affordable outboard preamps and equalizers in its class up to date.

  • Page 4: Getting Started

    GETTING STARTED FRONT D.I. INPUT INPUT GAIN SWITCH MIC PAD PHANTOM POWER HIGH PASS FILTER High Impedance Class A JFET 5 dB Steps From 30 to 80 20 dB Reduction Ahead of Input Activates 48 V -3 dB at 82 Hz, Discrete Class Transformer OUTPUT ATTENUATOR MIC INPUT IMPEDANCE...

  • Page 5: Applications

    APPLICATIONS CONDENSER MIC ACTIVATE +48 V FOR CONDENSER MIC USB - COMPUTER OUTPUT MIC INPUT LINE INPUT - AUDIO INTERFACE D.I. USB - COMPUTER D.I. INPUT OUTPUT GUITAR FX PEDAL LINE INPUT - AUDIO INTERFACE LINE LINE OUTPUT - KEYBOARD USB - COMPUTER ACTIVATE LINE SWITCH OUTPUT...

  • Page 6: Specifications

    SPECIFICATIONS • Microphone input impedance: High=1200 Ω minimum; Low=300 Ω minimum. Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics. Input is transformer balanced and floating. • Line input impedance: 10 kΩ bridging, transformer balanced and floating. •...

  • Page 7: Trouble Shooting

    TROUBLE SHOOTING PROBLEMS SOLUTIONS There doesn´t appear to be any signal at all arriving at the Make sure the GAIN knob is not in the ´Off´ position. back XLR. There still doesn´t appear to be any signal at all arriving at Check to see if a jack cable has been left plugged into the the back XLR.

  • Page 8: Warranty Statement

    2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date.

  • Page 9: Recall Sheets

    RECALL SHEETS...
  • Page 10 HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 info@heritageaudio.com...
