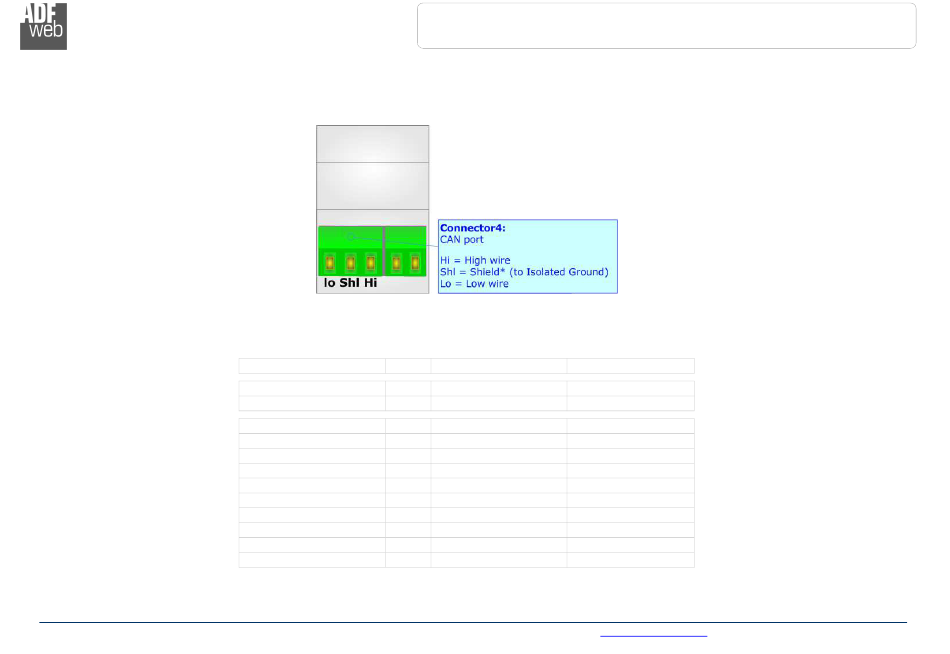

CAN:

For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of 'Dip-Switch B' is at ON position.
Cable characteristics:
ADFweb.com Srl – IT31010 – Mareno – Treviso
DC parameter:
AC parameters:
Length
User Manual OPC UA Server / DeviceNet Slave
Document code: MN67B36_ENG
Impedance 70 Ohm/m
Impedance 120
Delay 5 ns/m
Baud Rate [bps] Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25
