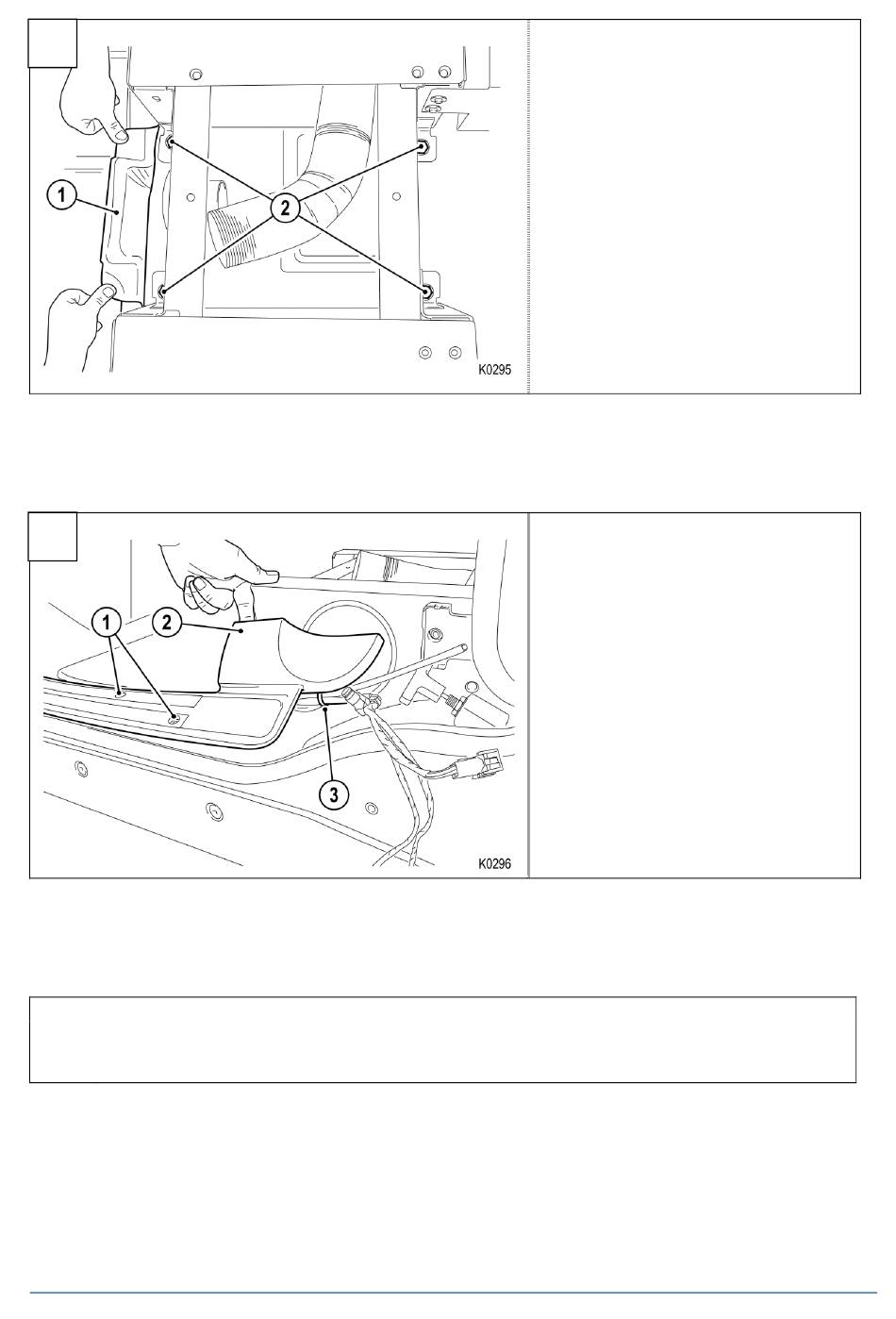

19. Fold up the floor panel (1) in front of the seat console.
20. Loosen and remove the four seat console screws (2) (SW15 adapter).
K
21. Loosen the two screws (1) in the access panel (2) and then lift off the access panel and guide the
cable harness (3) out of the console.
22. Remove the console.
Important note:
Ensure that the air hose is not damaged!
RECARO Automotive Seating
1 Floor panel
2 Console fastening screws
1 Access panel screws
2 Access panel
3 Cable harness
