5.2.14 Hopper drive unit
1. Remove the toner cartridge (Y/M/C/K).
E.3.1.4 Replacing the toner cartridge
2. Remove the upper rear cover.
F.5.1.19 Upper rear cover
3. Remove the lower rear cover.
F.5.1.20 Lower rear cover
4. Remove the left cover.
F.5.1.15 Left cover
5. Remove the exit tray.
F.5.1.16 Exit tray
6. Remove the toner cartridge motor/YM.
F.5.4.10 Toner cartridge motor/YM (M10)
7. Remove the toner cartridge motor/CK.
F.5.4.16 Toner cartridge motor/CK (M25)
8. Remove the toner supply motor/Y.
F.5.4.9 Toner supply motor/Y (M9)
9. Remove the toner supply motor/M.
F.5.4.8 Toner supply motor/M (M8)
10. Remove the toner supply motor/C.
F.5.4.7 Toner supply motor/C (M7)
[4]
[2] [3] [1]
[2] [1] [2]
[1]
[1]
[4] [3]
[2]
F DISASSEMBLY/REASSEMBLY > 5. bizhub C360i/C300i/C250i

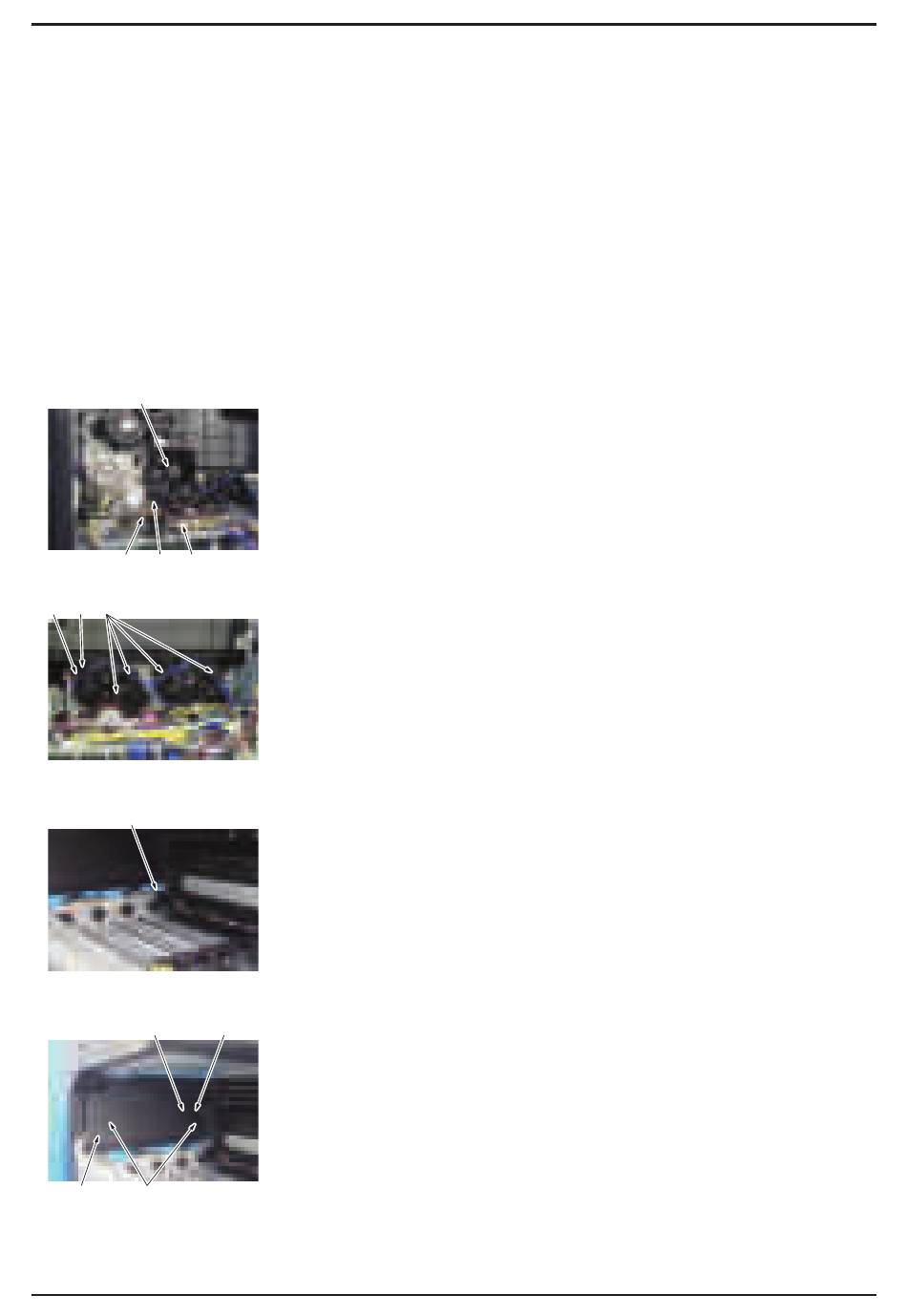

11. Disconnect the connector [1]. Remove the wire saddle [2], and remove the
harness from the harness guide. Remove the screw [3], and remove the toner
cartridge cooling fan assy [4].
12. Disconnect the connector [1], and remove the harness from five harness
guides [2].

13. Remove the screw [1].

14. Remove the screw [1], and remove the cover [2].
15. Remove two screws [3], and remove the cover [4].
