PCE Instruments PCE-RAM 8 User Manual

User Manual
Radiation Meter
PCE-RAM 8
1.Product Introduction
• This product is a built-in high sensitivity reform counter as a detector of radiation dose monitoring instrument,
mainly used to monitor all kinds of radioactive workplaces of X, Beta, Gamma ray radiation, with high sensitivity,
fast response, accurate measurement, wide range and so on.
• Widely used in nuclear power plant, iron and steel chemical industry, radiation processing enterprises, radiation
therapy, reflex laboratory, home decoration radiation and other fields of staff for personal safety protection
monitoring.
2.Main Features
γ
• Monitor X, , rays, high sensitivity, fast response time β
• Measure the dose rate in real time and record the cumulative dose
• Over dose alarm, dose rate and metering rate alarm threshold adjustable
• With time calendar function
• Buzzer alarm function
• Low power display function

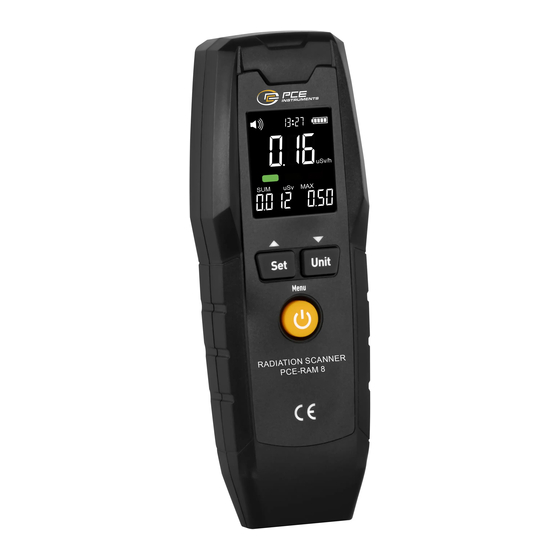

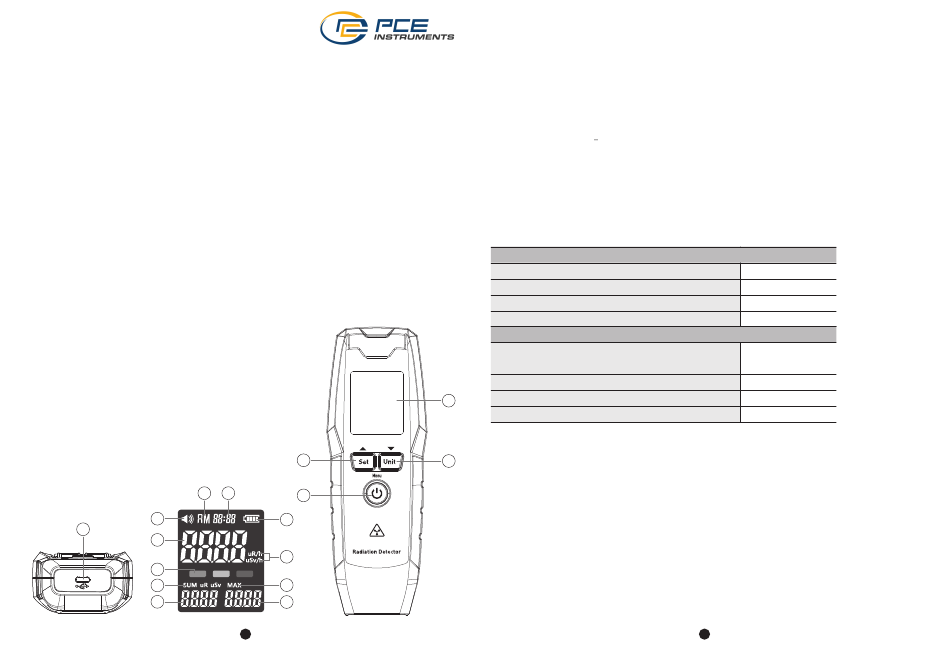

3.Description of Instrument Panel
1-LCD Display with Backlight
1.1-Pulse and Button Sound Switch 1.7-Scope Indication
1.2-12 Hour System Symbol 1.8-Cumulative Value Symbol and Unit
1.3-Clock 1.9-Cumulative Value
1.4-Battery Symbols 1.10-Maximum Symbol
1.5-Real-Time Values 1.11-Maximum Value
1.6-Unit of Measurement
2-Set Function Setting Button (Buzzer sound switch, 24-Hour
switch setting, Time setting, Alarm threshold setting)
3-µSv/h and µR/h Unit Measurement Switch Button
4-Power Switch and Menu Switch Button
5-USB
1.2
1.1
5
1.5
1.7
1.8
1.9
2
1.3
4
1.4
1.6
1.10
1.11
1
4.Technical Indicators
Sensor GM Counter
γ
Detection Ray X, , Radial β
Range 0.01µSv/h to 9999µSv/h
Cumulative Radiation 0.001µSv to 9999µSv
Sensitivity 80CPM/µSv (Co-60)
Energy Range 48keV to 3.0MeV
137
Accuracy <±10% ( CS 1msv/h)
Minimum Resolution 0.01µSv/h
Operating Temperature 0 to 40°C/32 to 104°F
Storage Temperature -10 to 60°C/14 to 140°F
Alarm Method Audible alarm
Power Supply 3.7V Rechargeable Battery
5.Safety Standard for Human Radiation Dose
Dose limits for workers in the radiation industry
Average effective dose for 5 consecutive years
Effective dose in any year
Annual equivalent dose for extremities (hands or feet) or skin
Annual equivalent dose of eye lens
Dose limits for members of the public
Annual effective dose when the average annual dose for 5
consecutive years does not exceed 1mSv
Individual annual effective dose
Skin annual equivalent dose
1
Annual equivalent dose of eye lens
6.Instrument Operation Instruction
6-1.Instrument Switch
3
1.Long press the Switch Button for about 3 seconds to start the instrument; Long press the on button again for
about 3 seconds to shut down the instrument.
2.When the instrument is on, the LCD backlight will automatically reduce the brightness after no operation for one
minute.
3.Press any button again to turn on the LCD backlight again without automatic shutdown function.
6-2.Instrument Switching Unit
1.Press the Unit Button to switch between µSv/h and µR/h, not only the current measured value, but also the
cumulative value and the maximum value (Save the current last display unit each time you shut down).
2.Unit switching formula: 1µSv/h=100µR/h
20mSv
50mSv
500mSv
150mSv
5mSv
1mSv
50mSv
15mSv
2
