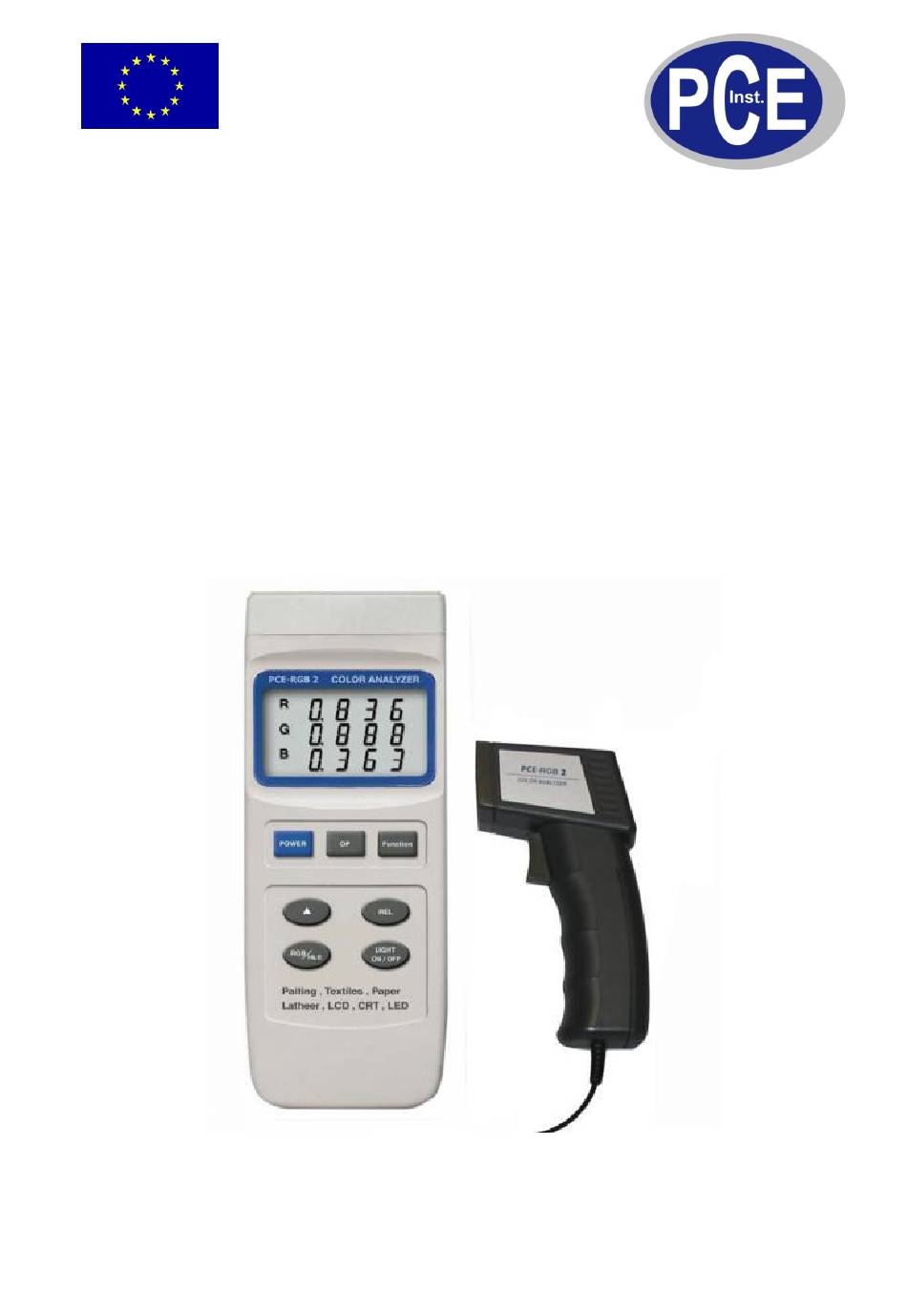

- Page 1 PCE Instruments UK Ltd Units 12/13 Southpoint Business Park Ensign Way, Southhampton Hampshire United Kingdom, SO31 4RF Phone +44(0) 2380 98703 0 Fax +44(0) 2380 98703 9 info@industrial-needs.com www.industrial-needs.com Colour Meter PCE-RGB 2 MANUAL Version 1.0 10.09.2014...
- Page 2 Manual www.industrisal-needs.com Table Of Contents 1. Safety Precautions ....................2 2. Technical Specifications .................... 2 3. Detailed description of device ................... 3 4. Measuring Procedure ....................3 Measurement of samples that are not self-luminous ..............3 Measurement on self-luminous samples ..................4 Relative measurement ........................
- Page 3 Let the device prior to application acclimate to the surrounding temperature The device may be opened only by specialized personnel of PCE instruments Never set down the device on its control panel (e.g. onto a table, with the console faced down).

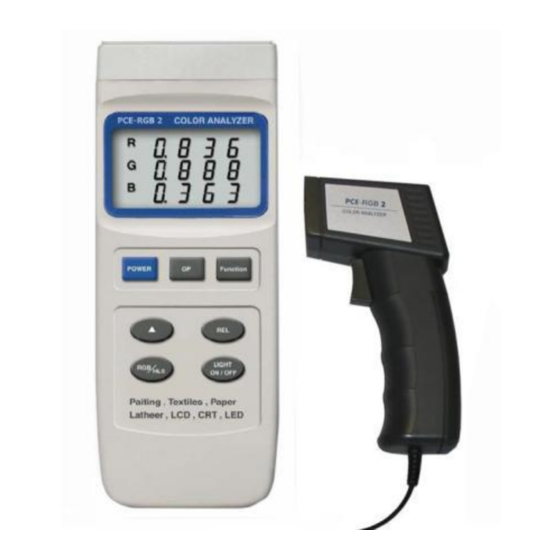

- Page 4 Manual www.industrisal-needs.com 3. Detailed description of device Fig.1 Display 4-10 RS-232 interface Power On / Off 4-11 DC 9V adapter socket Operation 1 4-12 Battery compartment Function 4-13 Support Calibration 4-14 Input for stand REL- 4-15 Sensor head RGB / HSL 4-16 Operation 2 Light on / off...
- Page 5 Manual www.industrial-needs.com RGB: Press the “OP”-button (4-16 or 4-3, Fig. 1) once, so that the display indicates “Mesu” (for measurement), and after several seconds R, G, B – values. Now you can lift the sensor head from the sample surface. If you wish to perform a new measurement, proceed the same way. HSL: If you wish to determine the H, S, L values (hue, saturation, lightness), press the “RGB / HSL”- button (4-7.
- Page 6 Manual www.industrisal-needs.com Relative measurement You can press during measurement, when the display indicates the R, G, B – values, the “REL”- button (4-6, Fig. 1) once (Relative-mode), to switch to the Relative-mode. The display will then indicate a blinking “0”. If you now want to perform a new measurement, press the “OP”-button once (4-16 or 4-3, Fig.
- Page 7 Reattach the cover of the battery compartment and secure with the screws. 8. Software The software of the colour meter PCE-RGB 2 can be purchased optionally. The delivery of the software will contain a separate instruction manual.
