Summary of Contents for Truper COMP-10L2

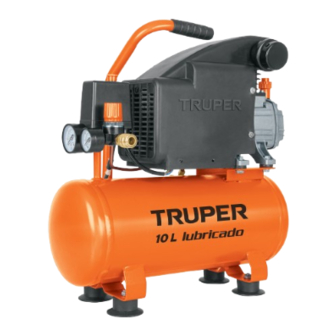

- Page 1 Manual Air compressor 116 PSI Pressure Applies for: Code Model 103030 COMP-10L2 COMP-10L2 Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical data Electrical requirements To get the most out of the tool, extend its lifespan, claim the General security warnings for electric tools warranty if necessary, and avoid serious risks or injuries, it is Security warnings for the use essential to read this manual in of pneumatic compressors its entirety before using the tool. -
Page 3: Technical Data
The thermal insulation class of the motor windings is class F. WARNING If the power cable is damaged, it must be replaced by the manufacturer or an authorized TRUPER service center to prevent any risk of electric shock or significant accidents. The electrical insulation of this tool is altered by splashes or spillage of liquids during its operation. -
Page 4: General Security Warnings
Service reduces personal injury. Repair the tool at an authorized TRUPER service center using only identical replacement parts. This will maintain the safety of the tool. Avoid accidental starts. Ensure the switch is in the "off" position... - Page 5 • Disconnect the tool after use. DANGER • Never use the compressor outdoors • The use of accessories not recommended by TRUPER when raining or on wet surfaces, as electrocution may can result in personal injury. occur.
-
Page 6: Parts
Parts Transportation handle Engine cover On/Off switch Air filter Oil level sight glass SAE-30 single-grade oil Tank 1/4” quick self-connect valve Pressure output regulator Anti-vibration mount Safety valve Thermal switch kg/cm kg/cm Lb/in2 Lb/in2 (BAR) (PSI) (BAR) (PSI) tank cap Regulated output Tank pressure pressure gauge... -
Page 7: Preparation
Preparation • The air compressor is designed to provide power to pneumatic tools which are as versatile as the electric tools, making it suitable for tasks like drilling, screwing, nailing, riveting, stapling, chiseling, polishing, blowing, cleaning, painting, etc. • The compressor operates entirely automatically and is controlled by the pressure switch, which stops the motor when the tank pressure reaches the maximum level and restarts it when it drops to a level below 600 kPa (87 PSI). -
Page 8: Start Up
Start up Turn on/off • Before operating the compressor, position it on a flat, level, and stable surface with good ventilation. Ensure a safe distance from flammable objects such as curtains. Maintain a minimum cleareance of at least 30 cm (12”) around the compressor to allow proper air circulation. -
Page 9: Maintenance
Service • Any other service or fixture of the compressor must be performed only at an authorized TRUPER service center. Service and maintenance performed by unqualified individuals can be dangerous and may cause personal injury, in addition to voiding the product warranty. -
Page 10: Troubleshooting
• Clean or replace the filter. The motor operates • Pressure switch failure. • Visit an authorized TRUPER service center to replace the pressure switch. continuously without • Excessive air usage. • The compressor is not large enough to meet the L/min requirements of stopping. -
Page 11: Authorized Service Centers
In the event of any problem contacting an authorized TRUPER service center, please see our webpage WWW.TRUPER.COM to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-873 to get information about the nearest service center. -
Page 12: Warranty Policy
It includes the costs of transportation of the product that derive from its fulfillment of its service network. . Phone number 800-018-7873. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
