- Page 1 VSX-6153-V2 DM&P Vortex86SX 300MHz PC/104 CPU Module with 4S/2USB/VGA/LCD/LVDS/LAN/GPIO/CF 128MB DDR2 Onboard User’s Manual (Revision 1.0A)
-
Page 2: Trademarks Acknowledgment
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. ©Copyright 2007 ICOP Technology Inc. -
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 1.1 Packin g List............1 1.2 Pr oduct Description .......... -
Page 4: Chapter 1 Introduction
RS232 cable x 4 PRINT cable x1 IDE cable x 1 USB cable x 1 (USB port x 2 VSX-6153-V2 VGA cable x 1 LAN cable x 1 GPIO cable x 1 PS/2 Mouse cable x 1 PS/2 Keyboard cable x 1 Screw Kit x 1 Vortex86SX™... -
Page 5: Product Description

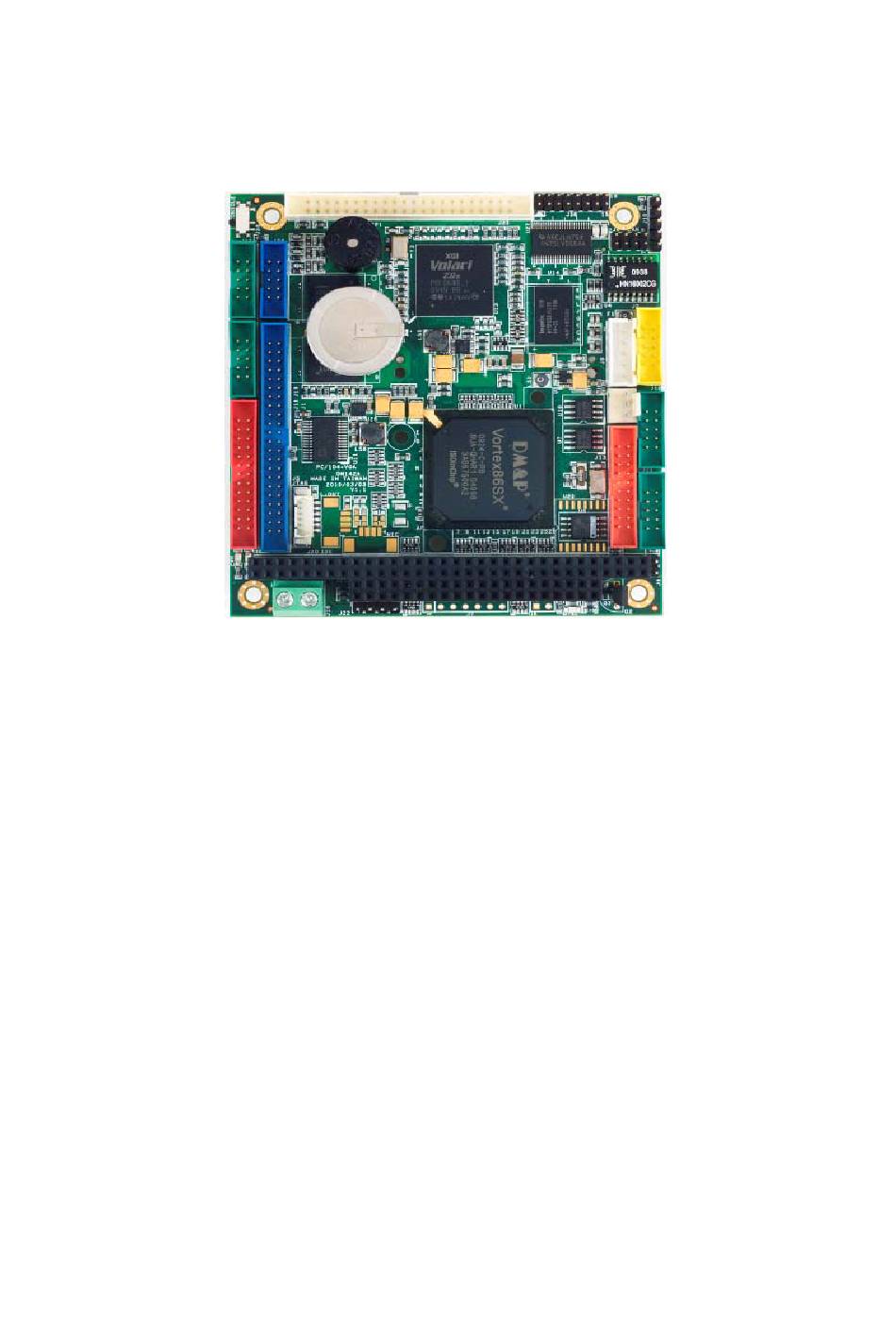

PC/104 controller. The VSX-6153-V2 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 6: Specifications
Specifications Features VSX-6153-V2 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache Cache AMI BIOS BIOS PC/104 Standard Compliant Bus Interface 128 / 256MB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2... - Page 7 Flash Disk Support Onboard 2MB SPI Flash Disk (Driver: A) 44-pin IDE Flash Disk( EmbedDisk 16MB or above) Compact Flash Type I/II 16~24 channels Single Voltage +5V @ 580mA Power Requirement 90 X 96mm (3.54 x 3.77 inches) Dimension Weight C ~ +70 Operating Temperature...
-
Page 8: Board Dimension
Board Dimension Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2... -
Page 9: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline (Note1: COM2 RS232/422/485 is selected by BIOS setting) (Note2: Audio is optional) (Note3: Redundancy Signal and System-Fail-SW are optional) Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2... -
Page 10: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2... - Page 11 Jumpers & LEDs Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2...
-
Page 12: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 44-pin Box Header, 2.0∅ ,22x2 10-pin Box Header,2.0∅ , 5x2 8-pin Pin Header, 2.0∅ , 4x2 JTAG 6-pin Wafer, 1.25∅ , 6x1 Reset 2-pin Pin Header, 2,54∅,1x2 Redundancy (Optional) 7-pin Pin Header, 2.54∅, 7x1 System –Fail-Switch (Optional) - Page 13 MTBF-Out (Orange) LED-SMD MTBF- LED 3 LAN Link/Active LED (Green) LED-SMD LED 4 LAN Duplex LED ( Yellow ) LED-SMD SP1 BUZZER Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2...
-
Page 14: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0... - Page 15 J4: LAN Pin # Signal Name Pin # Signal Name ATX+ ATX- ARX+ LED0 LED0+ ARX- LED1+ LED1 J5: JTAG Pin # Signal Name Pin # Signal Name J6: RESET Pin # Signal Name Pin # Signal Name RST_SW J7: Redundancy (Optional) Pin # Signal Name Pin # Signal Name...
- Page 16 J9: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J10: PS/2 Mouse Pin # Signal Name Pin # Signal Name MSCLK MSDATA J11: COM 1 (Optional: TTL/ GPIO-P4) Signal Signal Pin # Pin # Name Name DCD1 2 RXD1 TXD1...
- Page 17 J13: GPIO (Port 0 / 1) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J15: RS485 (Auto direction) Pin # Signal Name RS485＋ RS485－ J16: Power Connector (Terminal Block 5.0mm) Pin # Signal Name...
- Page 18 J18: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J19: COM4 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2...
- Page 19 J20: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK * RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12...
- Page 20 J21: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
- Page 21 J24: VGA Signal Signal Pin # Pin # Name Name R OUT G OUT B OUT HSYNC VSYNCD J25: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) Vortex86SX™...
- Page 22 J33: LINE OUT (Optional) Pin # Signal Name LOUTR LOUTL J34: MIC-IN (Optional) Pin # Signal Name MICVREF MIC-IN J36: LVDS Pin # Signal Name Pin # Signal Name VCC3 (3.3V) VCC3 (3.3V) RxIN0- RxIN0+ RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ Vortex86SX™...
-
Page 23: System Mapping
System Mapping Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2... - Page 24 Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2...
- Page 25 Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2...
-
Page 26: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 27: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 28: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 29: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86SX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output. -
Page 30: Appendix
Appendix TFT Flat Panel Data Output Vortex86SX™ PC/104 CPU Module Vortex86SX-6153-V2... -
Page 31: Tft Flat Panel Support List
TFT Flat Panel Support List Size Brand Resolution Model No. 5.7” Data image 320x240 FG050701DSSWBG01 5.7” Optrex 320x240 55264GD057J-FW-ABN 5.7” TOSHIBA 320x240 LTA057A343F 5.7” Sharp 320x240 (QVGA / VGA) LQ057Q3DC02 5.7” Kyocera 320x240 (QVGA / VGA) TCG057QV1AC-G10 5.7” 320x240 (QVGA / VGA) PD057VU4 /U5 5.7”... - Page 32 Size Brand Resolution Model No. 8” 800x600 (TFT 24bits) A080SN01 V0 8.4” Sharp 800x600 LQ084S3DG01 10.4” 640x480 PD104VT1/VT2 10.4” 640x480 NL6448AC33-18 10.4” 640x480 NL6448AC33-29 10.4” 640x480 NL6448BC33-59 10.4” Sharp 640x480 LQ104V1DG51/DG61 10.4” Sharp 640x480 LQ10d368 11” Sharp 800x480 LQ110Y3DG01 12.1” 800x600 NL8060BC31-01 Vortex86SX™...
-
Page 33: Lvds Flat Panel Support List
LVDS Flat Panel Support Size Brand Resolution Model No. 3.5” 640x480 PD035VL1 5” 640x480 PD050VL1 6.5” 640x480 G065VN01 8.4” 800x600 G084SN03 8.9” 1024x600 A089SW01 8.9” 1024x600 CLAA089NA0ACW 8.9” HannStar 1024x600 HSD089IFW1 10.4” MITSUBISHI 800x600 AA104SG01 10.4” 800x600 G104SN02 10.4” Sharp 800x600 LQ104S1LG61 12.1”... -
Page 34: Flat Panel Wiring And Lighting
D. Flat Panel Wiring and Lighting Hardware Before you connect the TFT LCD Flat Panel with Vortex86SX-6153-V2, please make sure that the input Voltage of LCD is+3.3V or Not BIOS Please contact or e-mail our regional sales to get the special BIOS for the any TFT LCD Flat Panels. -
Page 35: Tcp/Ip Library For Dos Real Mode
Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. -
Page 36: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 37: Warranty
Warranty This product is warranted to be in good working order for a period of one year fr om the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our optio n, replace or repa ir it at no addi tional charge except as set forth in the following terms.
