BEAM LED 64
User Manual – Version 2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the BEAM LED 64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mark BEAM LED 64

Summary of Contents for Mark BEAM LED 64

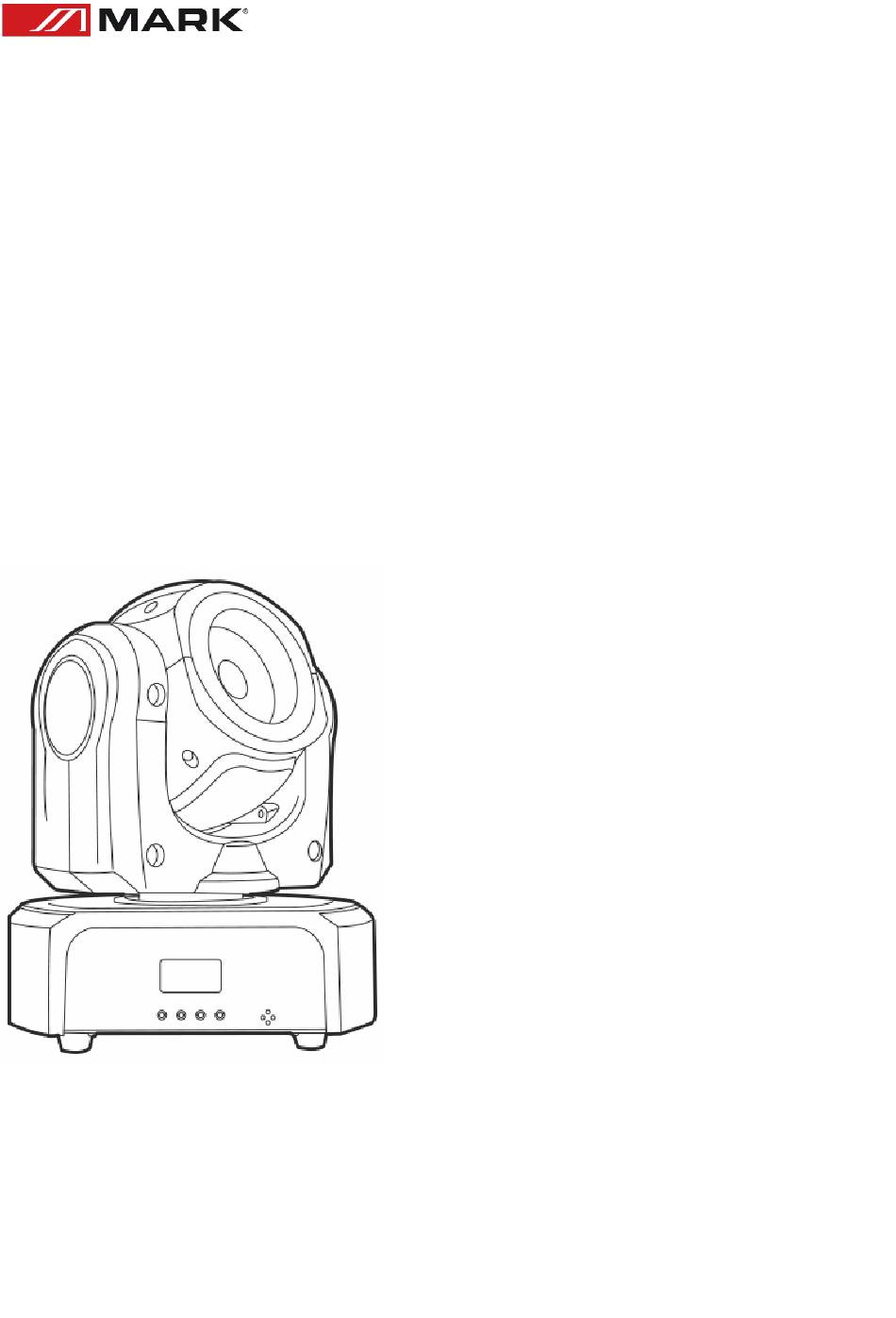

  • Page 1 BEAM LED 64 User Manual – Version 2.0...

  • Page 2: Safety Instructions

    8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Only use attachments/accessories specified by MARK. 10. Unplug this device during lightning storms or when unused for long periods of time.

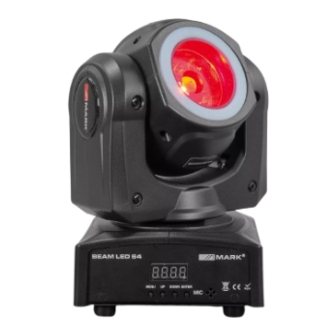

  • Page 3 OVERVIEW BEAM LED 64 is a moving head that includes 1x LED RGBW (4 in 1) of 60W. These brilliant LEDs allow to obtain a rich colour spectrum mixing the R, G, B, W. It also includes 12x LEDs RGB 3 (in 1) creating a colour ring around the lens, selecting the colour of each section or activating an automatic program.

  • Page 4: Installation

    Ensure that the unit does not met water or any other liquid. BEAM LED 64 can be placed in a stable surface or stand but the common operating mode is rigging it in a truss system. Please, check and follow the next recommendations for a safe use of this device: The truss system must be built in a way that it can hold 10 times the weight of all rigging elements for 1 hour without any harming deformation.

  • Page 5: Advanced Use

    ADVANCED USE CONTROL PANEL BEAM LED 64 can be configured in different ways thanks to its panel and selection buttons. Press the MENU button (once or several times) until you get to the desired function (according to the following chart), and press ENTER to confirm your selection.
  • Page 6 In the following table are shown all the options displayed in the menu interface to configure the BEAM LED 64: DISPLAY FUNCTION A001-512 DMX MODE (SELECT STARTING CHANNEL) ChNd SELECT DMX CHANNEL MODE 16 OR 30 CH d512 DMX512 MODE...
  • Page 7 0-255 P/T SPEED, F>S 0-255 DIMMER NO FUNCTION 9-255 STROBE, S>F 0-255 RED DIMMER 0-255 GREEN DIMMER CH10 0-255 BLUE DIMMER CH11 0-255 WHITE DIMMER CH12 0-255 LED RING DIMMER NO FUNCTION CH13 9-255 LED RING STROBE, S>F 0-127 LED RING COLOR MODE 128-135 LED RING MACRO 1 MODE 136-143...
  • Page 8 84-125 LED RING BLUE 126-167 LED RING YELLOW 168-209 LED RING MAGENTA 210-251 LED RING CYAN 252-255 LED RING WHITE 0-255 LED RING MACRO 1, S>F CH14 VALUE: 128-135 0-255 LED RING MACRO 2, S>F CH14 VALUE: 136-143 0-255 LED RING MACRO 3, S>F CH14 VALUE: 144-151 0-255 LED RING MACRO 4, S>F...
  • Page 9 30 channels mode VALUE FUNCTION 0-255 0-255 PAN FINE 0-255 TILT 0-255 TILT FINE 0-255 P/T SPEED, F>S 0-255 DIMMER NO FUNCTION 9-255 STROBE, S>F 0-255 RED DIMMER 0-255 GREEN DIMMER CH10 0-255 BLUE DIMMER CH11 0-255 WHITE DIMMER CH12 0-255 LED RING RED 1 DIMMER CH13...

  • Page 10: Troubleshooting

    Unpacking Note: Before unpacking, check it for possible damage that might have occurred during transportation or not. If you find any damage, please do not use the unit and contact the MARK dealer. TROUBLESHOOTING This short guide is meant to help and try to solve simple problems. If they continue and the device cannot operate, please, don’t try to repair it by yourself, return the device to your MARK dealer.

  • Page 11: Indicaciones De Seguridad

    8. Proteja el cable de alimentación para no ser pisado o manipulado, particularmente en los conectores (mural y de entrada a la unidad). 9. Utilice únicamente accesorios especificados por MARK. 10. Desconecte el dispositivo si no va a ser utilizado durante largos periodos de tiempo.

  • Page 12: Vista General

    VISTA GENERAL BEAM LED 64 es una cabeza móvil que incluye 1x LED RGBW (4 en 1) de 60W. Estos brillantes LED permiten obtener un amplio espectro de colores mezclando R, G, B, W. También incluye 12x LEDs RGB (3 en 1) creando un anillo de color alrededor de la lente, seleccionando el color de cada sección o activando un programa automático.

  • Page 13: Instalación

    BEAM LED 64 se puede colocar en una superficie plana y estable o en un soporte, pero el modo de funcionamiento común es el rigging en un sistema truss. Por favor, compruebe y siga las siguientes...
  • Page 14 USO AVANZADO PANEL DE CONTROL BEAM LED 64 permite ser configurado de diferentes maneras, gracias a su panel y botones de selección. Presione el botón MENU (una o varias veces) hasta llegar a la función deseada (según el siguiente cuadro), y presione ENTER para confirmar su selección.
  • Page 15 En la siguiente tabla se muestran todas las opciones para configurar el BEAM LED 64 en la interfaz del menú: DISPLAY FUNCION A001-512 MODO DMX (Selección de canal de inicio) ChNd Selección de modo DMX (16 o 30 canales) d512...
  • Page 16 SIN FUNCION 9-255 STROBO de lento a rápido 0-255 DIMMER ROJO 0-255 DIMMER VERDE CH10 0-255 DIMMER AZUL CH11 0-255 DIMMER BLANCO CH12 0-255 DIMMER ANILLO LED SIN FUNCION CH13 9-255 STROBO ANILLO LED de lento a rápido 0-127 MODO DE COLOR ANILLO LED 128-135 MODO MACRO 1 ANILLO LED 136-143...
  • Page 17 168-209 ANILLO LED MAGENTA 210-251 ANILLO LED CYAN 252-255 ANILLO LED BLANCO 0-255 ANILLO LED MACRO 1, L>R CH14 VALOR: 128-135 0-255 ANILLO LED MACRO 2, L>R CH14 VALOR: 136-143 0-255 ANILLO LED MACRO 3, L>R CH14 VALOR: 144-151 0-255 ANILLO LED MACRO 4, L>R CH14 VALOR: 152-159 0-255...
  • Page 18 Modo 30 canales VALOR FUNCTION 0-255 0-255 PAN FINE 0-255 TILT 0-255 TILT FINE 0-255 VELOCIDAD PAN/TILT de rápido a lento 0-255 DIMMER SIN FUNCION 9-255 STROBO de lento a rápido 0-255 DIMMER ROJO 0-255 DIMMER VERDE CH10 0-255 DIMMER AZUL CH11 0-255 DIMMER BLANCO...
  • Page 19 La conexión eléctrica al dispositivo debe ser realizada por personal cualificado. Antes de instalar, asegúrese de conectarla a una red eléctrica que trabaje bajo los mismos parámetros que BEAM LED 64 (100-240V/50-60Hz). Cada dispositivo debe ser adecuadamente conectado a una toma de tierra de acuerdo con las normas establecidas.
