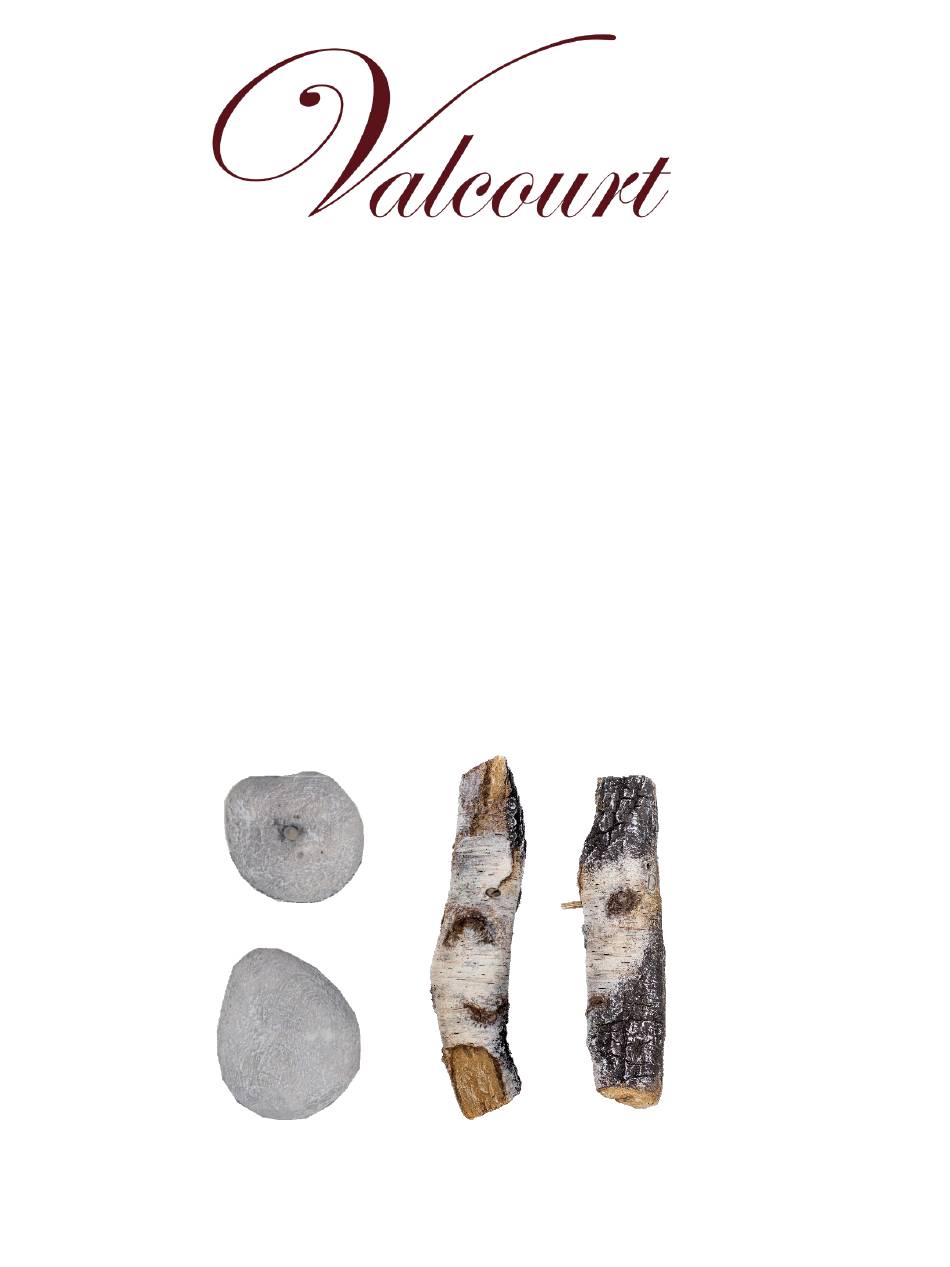

- Page 1 _________________________________________________ AC04343 _________________________________________________ INSTALLATION INSTRUCTIONS _________________________________________________ 46274A 2021-12-07 Printed in Canada...
- Page 2 LOGS AND ROCKS KIT INSTALLATION Tools Needed Log placement is critical to proper burner performance. Logs must be correctly positioned. • Protective Gloves The photos in this section show the proper pinned • Phillips Screwdriver or Power Drill with position for logs and rocks on this set. Owners Phillips Drive need to be shown proper log and rock placement and instructed not to move the logs and rocks.
- Page 3 Rocks Identification CAUTION Do not place crushed glass DESCRIPTION around pilot assembly. TOP VIEW FRONT VIEW & PART NUMBER Crushed glass must be placed on the burner screen in a single layer. Additional crushed glass may be placed on the barrier cover areas Rock A away from the barrier screen.
- Page 4 Logs Identification DESCRIPTION & TOP VIEW FRONT VIEW PART NUMBER Log #1 22475 Log #2 22471 Log #3 22476 Log #4 22472 Log #5 22474 Log #6 22473 Page 4 Installation Instructions and Owner’s Manual - L48...
-
Page 5: Top View
Rocks Placement Place Rock A onto Burner Pins 1 and 2. Place Rock J onto Burner Pin 3. Place Rock E onto Burner Pin 4. TOP VIEW FRONT VIEW Place Rock F between Burner Pins 6 and 7. Do not place the rock over the burner screen. See image below for proper placement. - Page 6 Place Rock I over the right side of Rock H. See image below for proper placement. TOP VIEW FRONT VIEW Place Rock B onto pin on rock J and rear of burner cover. See image below for proper placement. TOP VIEW FRONT VIEW Page 6 Installation Instructions and Owner’s Manual - L48...
- Page 7 Logs Placement Place log #2 onto pin on rock A and angle to rest on the left rear portion of the burner cover. Log #2 should be placed against the rear liner. See image below for proper placement. TOP VIEW FRONT VIEW 10.
- Page 8 11. Place log #6 on burner pin 7 on rock H. TOP VIEW FRONT VIEW 12. Place log #5 on burner pin 5 on rock E. TOP VIEW FRONT VIEW Page 8 Installation Instructions and Owner’s Manual - L48...
- Page 9 13. Place log #1 on pin on Log #5 and angle down to front of burner pan. See image below for proper placement. TOP VIEW FRONT VIEW 14. Place log #3 on burner Pin 6 on rock F.. TOP VIEW FRONT VIEW Installation Instructions and Owner’s Manual - L48 Page 9...
-
Page 10: Final Steps
Final Steps Crushed Glass Media Re-install the glass door assembly. Test fire to Place crushed glass media onto the burner ensure there is minimal contact between the cover, burner screen and accent glass panels. flame and the logs and rocks. NOTICE: Crushed glass should not be placed on If the test fire is acceptable, re-install the the burner screen area more than one layer deep. -
Page 11: Glass Placement
GLASS PLACEMENT Preparation of fireplace Replace the light cover over the lights. NOTE: The optional variable halogen lighting is If applicable, install logs and rock kit. available. If used, follow instructions in Add the decorative crushed glass media AC04336’s manual handy first. of your choice currently. - Page 12 This document is available for free download on the Stove Builder International inc. manufacturer’s website. It is a copyrighted document. 250, De Copenhague street, Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec), Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 418-908-8002...
