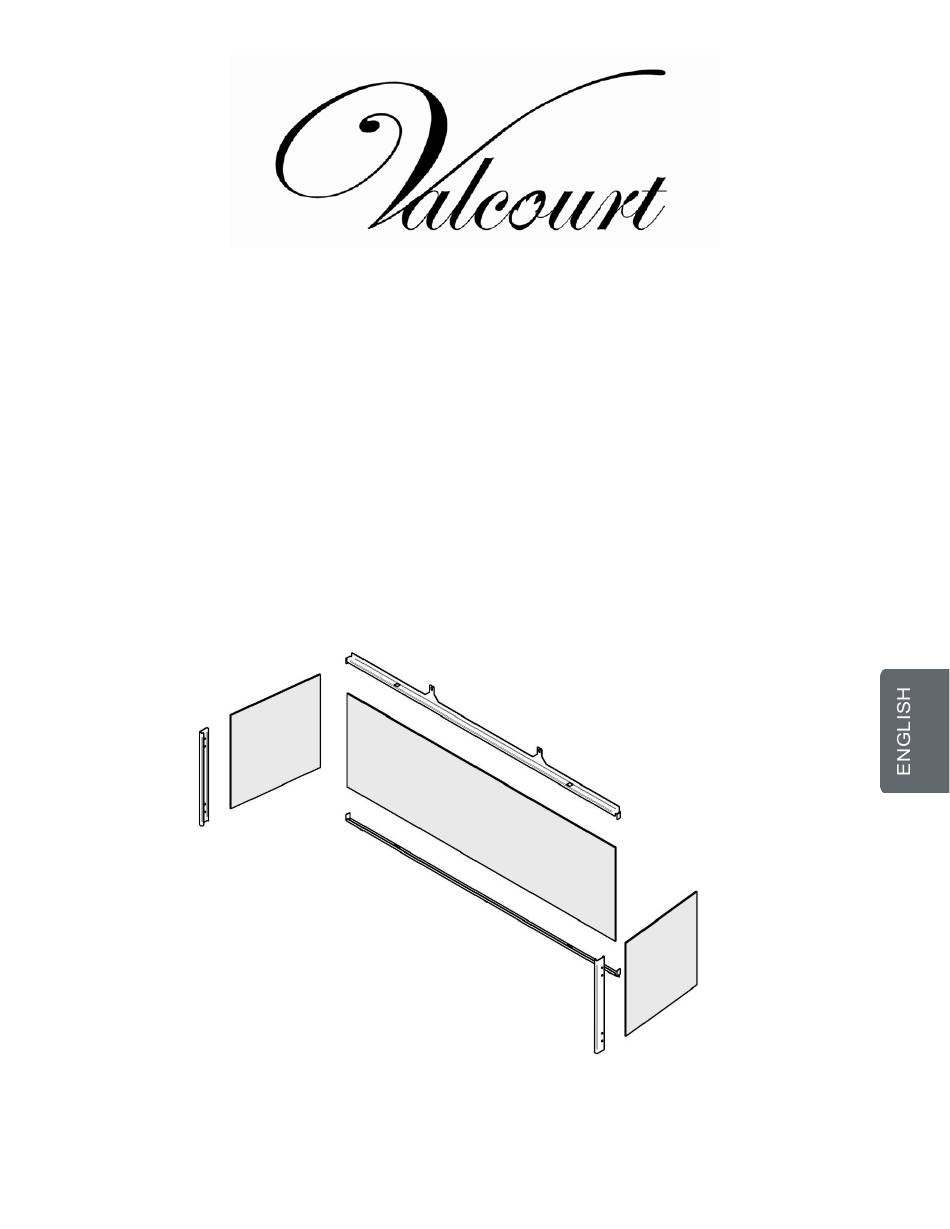

- Page 1 BLACK REFLECTIVE GLASS PANELS _________________________________________________ AC04331 _________________________________________________ INSTALLATION INSTRUCTIONS _________________________________________________ 46169A 2020-04-30...
- Page 2 Remove the Invisimesh barrier and the glass door assemblies as per details A, B and C prior to installation of the liner kit. Remove decorative media and log set from hearth and burner cover, if applicable. Black reflective glass panels Installation Instructions – AC04331 Page 2...
- Page 3 Remove the light bracket (C) and the light cover (D). Remove the burner cover plate (E) and the burner screen (F). Black reflective glass panels Installation Instructions – AC04331 Page 3...
- Page 4 Remove the rear liner bracket (H) by removing 3 screws (G) holding it in place. Discard the bracket, keep the screws. Lift the tabs on the new rear liner bracket (I). Install the new rear liner bracket (I) with 3 screws (G) kept from step 6. Black reflective glass panels Installation Instructions – AC04331 Page 3...
- Page 5 Remove bolts (G) and washers (J) from the back panel. Discard washers (J). Black reflective glass panels Installation Instructions – AC04331 Page 3...
- Page 6 Remove 2 side screws (G) and 2 washers (J) on each side of the fireplace. Discard washers (J). Install bracket (K) with two screws (G) on each side of the fireplace. Black reflective glass panels Installation Instructions – AC04331 Page 3...
- Page 7 12. Reinstall the burner screen (F) first, then the burner cover plate (E) and the light bracket (C). 13. Install both side liners (L) in the fireplace side brackets, previously installed. Black reflective glass panels Installation Instructions – AC04331 Page 3...
- Page 8 14. Lift tabs on the back liner bracket (M). Black reflective glass panels Installation Instructions – AC04331 Page 3...
- Page 9 Slide the back liner (N) inside the bracket (M) and install the liner at the back of the fireplace. 16. Fix the back liner in the fireplace with two screws (G). Black reflective glass panels Installation Instructions – AC04331 Page 3...
- Page 10 Reinstall light cover (D). Reinstall the glass door and the screen door. Black reflective glass panels Installation Instructions – AC04331 Page 3...
- Page 11 Stove Builder International inc. 250, De Copenhague street, St-Augustin-de-Desmaures (Québec) Canada G3A 2H3 Black reflective glass panels Installation Instructions – AC04331 Page 3...
