ADLINK Technology Titan2 Series User Manual

Ip69k stainless steel panel pc
Hide thumbs

Advertisement

Quick Links

Download this manual

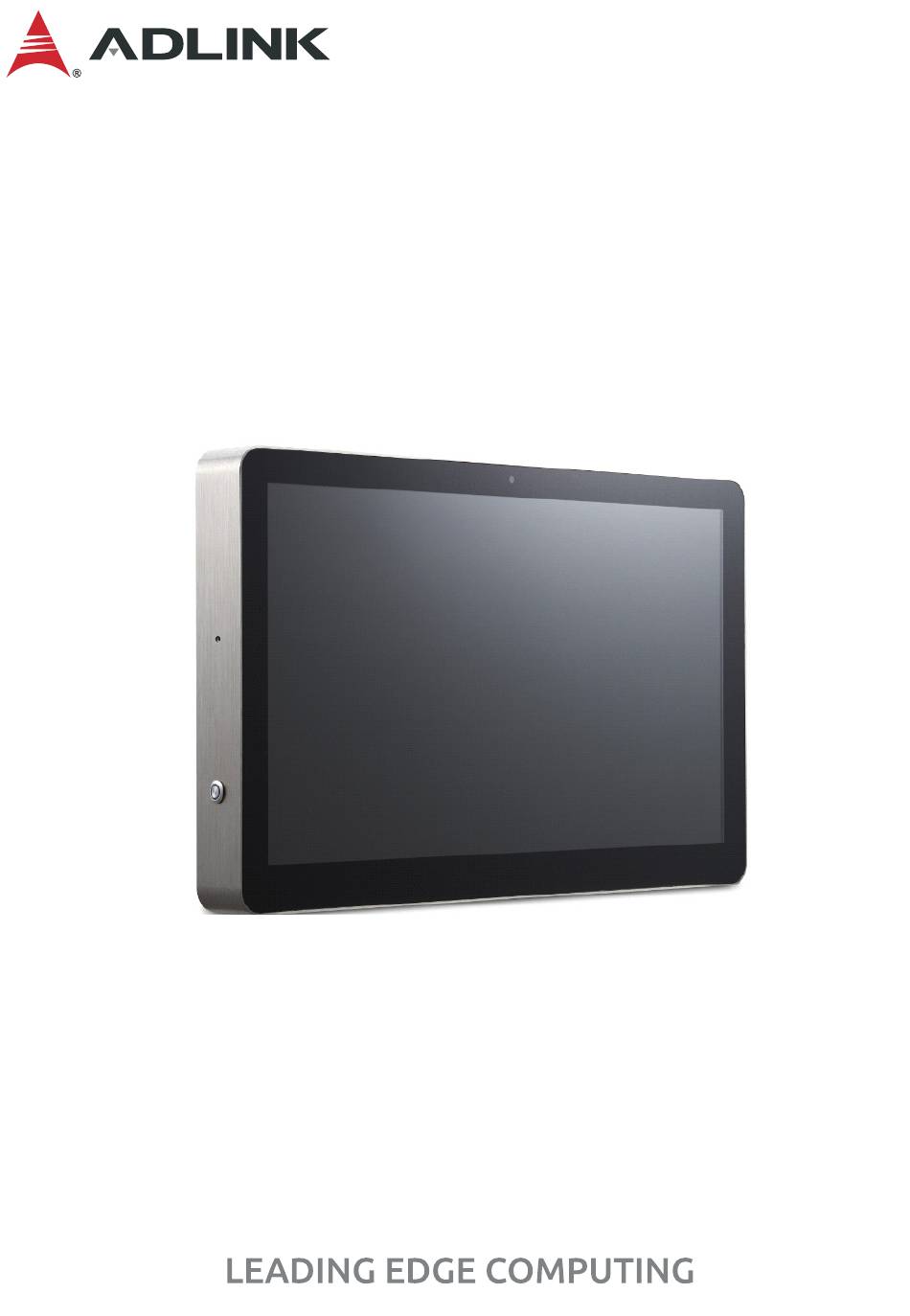

Titan2 Series
IP69K Stainless Steel Panel PC
User's Manual
Manual Rev.:
Revision Date:
Part No:
1.0
Mar. 11, 2024
50M-P5300-1000

Advertisement

loading
Need help?

Need help?

Do you have a question about the Titan2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology Titan2 Series

Summary of Contents for ADLINK Technology Titan2 Series

  • Page 1 Titan2 Series IP69K Stainless Steel Panel PC User’s Manual Manual Rev.: Revision Date: Mar. 11, 2024 Part No: 50M-P5300-1000...

  • Page 2: Revision History

    Revision History Revision Release Date Description of Change(s) 2024-03-11 Initial release...

  • Page 3: Environmental Responsibility

    Titan2 Series Preface Copyright © 2024 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

  • Page 4: California Proposition 65 Warning

    California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl) phosphate (TDCPP), 1,4- Dioxane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause...

  • Page 5: Table Of Contents

    Features................1 Packing List ................. 2 Optional Accessories ............2 2 Specifications ..............3 Titan2 Series Specifications ..........3 Titan2 Series Block Diagram ..........5 Power................... 6 Mechanical Dimensions............7 Thermal Options ..............10 3 System Layout..............13 External I/O Connectors ............ 13 Internal I/O Connectors............
  • Page 6 Save & Exit ................ 88 5 Driver & Application Installation ........89 Driver Installation Order ............. 89 Important Safety Instructions..........91 Consignes de Sécurité Importante ........93 EMC Compliance ..............96 Getting Service ..............97...

  • Page 7: List Of Tables

    Titan2 Series List of Tables Table 2-1: Titan2 Series Specifications ..........3 Table 2-2: Power Consumption ............6 Table 2-3: Heat Sink Components..........11 Table 3-1: External I/O Legend............13 Table 3-2: DC Input Pin Definition ..........14 Table 3-3: Serial Port Pin Definition..........15 Table 3-4: USB 2.0 Connector Pin Definition........
  • Page 8 This page intentionally left blank. viii List of Tables...

  • Page 9: List Of Figures

    Titan2 Series List of Figures Figure 2-1: Titan2 Series Block Diagram ........... 5 Figure 2-2: Titan2-15WP-TGL Dimensions........7 Figure 2-3: Titan2-21WP-TGL Dimensions........8 Figure 2-4: Titan2-24WP-TGL Dimensions........9 Figure 2-5: Heat Sink Specifications ..........10 Figure 2-6: Cable Routing Considerations for Heat Sinks ....12 Figure 3-1: Titan2 Series External I/O..........
  • Page 10 Figure 3-33: Backup Battery Connector Pin Definition....... 47 Figure 3-34: M.2 2280 Connector Pin Definition ........ 47 List of Figures...

  • Page 11: Introduction

    Titan2 Series Introduction 1.1 Overview The Titan2 Series IP69K Stainless Steel Panel PC features a pow- erful, energy-efficient 11th generation Intel® processor, optional Microsoft® Windows® or Ubuntu Linux operating system in a duable IP69K fanless package. The Titan2 Series is ideal for high- quality display experiences in advertising, digital menu board, and digital billboard applications.

  • Page 12: Packing List

    Obtain authorization from your dealer before returning any product to ADLINK. Ensure that the following items are included in the package. 1x Titan2 Series IP69K Stainless Steel Panel PC  1.4 Optional Accessories M12 Connector to DB-9 Cable, 2m ...

  • Page 13: Specifications

    1x M12 for 1x 2.5GbE LAN Power AT/ATX (default: AT mode) Power Input 24V DC, OVP/UVP protection Power Connector 1x 4-pin power connector Power/Fail Reset 1x wafer supports system reset, power button and power LED Table 2-1: Titan2 Series Specifications...

  • Page 14: Table 2-1: Titan2 Series Specifications

    Linux Ubuntu 22.04 LTS Mechanical Size 15.6” 21.5” 23.8” Construction Corrosion-resistant 304 Stainless Steel Enclosure (316 as Option) Dimensions 261.49x402.06x55.2 337.1x537.14x55.2 364.36x584.94x55.2 (HxWxD mm) Gross Weight 10kg 13kg VESA 100x100 (Titan2-15WP-TGL/21WP-TGL)/200 x 100(Titan2- Mounting (Optional) Table 2-1: Titan2 Series Specifications...

  • Page 15: Titan2 Series Block Diagram

    Titan2 Series 2.2 Titan2 Series Block Diagram Figure 2-1: Titan2 Series Block Diagram...

  • Page 16: Power

    2.3 Power Power supply options: 160W (24V DC/6.67A)  2.3.1 Power Consumption Power consumption is based on lab data in which 24V DC is applied and current is measured by the DC power supply. The power consumption (W) is calculated as the product of applied voltage (V) and current (A).

  • Page 17: Mechanical Dimensions

    Titan2 Series 2.4 Mechanical Dimensions All dimensions are in millimeters, unless noted. NOTE: NOTE: 2.4.1 Titan2-15WP-TGL Dimensions 55.2 ± 2 (D) 402.06 ± 2 (W) 345.23 (VA) 27.6 17.2 ± 2 2-M4 max depth 6mm 4-M4 max depth 6mm Figure 2-2: Titan2-15WP-TGL Dimensions...

  • Page 18: Figure 2-3: Titan2-21Wp-Tgl Dimensions

    2.4.2 Titan2-21WP-TGL Dimensions 55.2 ± 2 (D) 537.14 ± 2 (W) 477.64 ± 0.3 (VA) R20.25 27.6 17.2 ± 2 2-M4 max depth 6mm 4-M4 max depth 6mm Figure 2-3: Titan2-21WP-TGL Dimensions...

  • Page 19: Figure 2-4: Titan2-24Wp-Tgl Dimensions

    Titan2 Series 2.4.3 Titan2-24WP-TGL Dimensions 55.2 ± 2 (D) 584.94 ± 2 (W) 528.44 (VA) Ø 27.6 17.2 ± 2 Ø 2-M4 max depth 6mm 4-M4 max depth 6mm Figure 2-4: Titan2-24WP-TGL Dimensions...

  • Page 20: Thermal Options

    2.5 Thermal Options 2.5.1 Heat Sink Specifications Coat the external rivets 2 ± 0.3 with waterproof silicone.*4PCS Lock with M3 Nut*7pcs Figure 2-5: Heat Sink Specifications...

  • Page 21: Table 2-3: Heat Sink Components

    Titan2 Series No. Description Part Number Material Dimensions TITAN2- 34-35275- 350*164*5 238_CR_BA 0000-B0 SUS304, T=2.0mm/AL, TITAN2- T=5.0mm, 34-35480- 350*164*5 215_CR_BA Production: NCT 0000-A0 FINISH:Hair-line Surface Treatment TITAN2- 34-35492- 350*164*5 156_CR_BA 0000-A0 Table 2-3: Heat Sink Components All dimensions are in millimeters, unless noted.

  • Page 22: Figure 2-6: Cable Routing Considerations For Heat Sinks

    2.5.2 Cable Routing Considerations for Heat Sinks Cable routing should avoid high temperature areas as shown. This page intentionally left blank. Figure 2-6: Cable Routing Considerations for Heat Sinks Heat sink design optimized for open-frame installations, such as a kiosk. NOTE: NOTE: For panel PCs, a different design may be required.

  • Page 23: System Layout

    Titan2 Series System Layout 3.1 External I/O Connectors The Titan2 Series provides the following external I/O connectors. Figure 3-1: Titan2 Series External I/O A 1x M12 for DC power T-coded B 1x M12 for RS-232/422/485 (default RS-232) A-coded C 1x M12 for 2x USB 2.0 A-coded D 1x M12 for 2.5GbE LAN...

  • Page 24: Table 3-2: Dc Input Pin Definition

    3.1.1 DC Input The M12 DC (24V) input is a male connector with 4 pins in a “T-coded” configuration. Figure 3-2: DC Input Pin Definition Signal 24VDC 24VDC Table 3-2: DC Input Pin Definition...

  • Page 25: Serial Port Connector

    Titan2 Series 3.1.2 Serial Port Connector Through a M12 male A-coded connector, COM1 supports RS-232 (default) and RS-422/RS-485 modes, by BIOS setting. Figure 3-3: Serial Port Pin Definition Signal Table 3-3: Serial Port Pin Definition...

  • Page 26: Table 3-4: Usb 2.0 Connector Pin Definition

    3.1.3 USB 2.0 Connector USB 2.0 M12 male A-coded connector, up to 480 Mbps with 500 mA power current and OCP protection. Figure 3-4: USB 2.0 Connector Pin Definition Signal USB1 5V GND2 USB2 5V GND1 Table 3-4: USB 2.0 Connector Pin Definition...

  • Page 27: Gigabit Ethernet Connector

    Titan2 Series 3.1.4 2.5 Gigabit Ethernet Connector One 2.5 Gigabit Intel® Ethernet Controller i225 Series with M12 8-pin X-code male connector. Figure 3-5: Ethernet Connector Pin Definition Signal White/Orange Orange White/Green Green White/Blue Blue White/Brown Brown Braid Table 3-5: Ethernet Pin Definition...

  • Page 28: Internal I/O Connectors

    3.2 Internal I/O Connectors Installation of add-on devices must be carried out by ADLINK service personnel only. Users must not disassemble the device themselves. WARNING: L'installation de périphériques complémentaires doit être effec- tuée uniquement par le personnel de service ADLINK. Les util- isateurs ne doivent pas démonter l'appareil eux-mêmes.

  • Page 29: Table 3-6: Mainboard Connector Legend

    Titan2 Series Figure 3-7: Mainboard Connectors (Bottom) Power connector Key connector (optional) 2.5” SATA data & power Fan connector Touchscreen Clear CMOS Jumper (JP1501) M.2 3042, B Key for 4G/5G PCIe Gen4 x4 slot M.2 2230, A/E Key for WiFi/BT...

  • Page 30: Table 3-7: Power Connector Pin Definition

    3.2.2 Power Connector The 6-pin power connector connects an AC/DC power supply adapter, DC to DC power module and battery, with AT and ATX power modes (AT mode start is controlled by BIOS). Figure 3-8: Power Connector Pin Definition Signal PWR_CONN_IN PWR_CONN_IN PWR_CONN_IN...

  • Page 31: Table 3-8: Sata Data Connector Pin Definition

    Titan2 Series 3.2.3 SATA Data & Power Connectors The SATA data and power connectors are used to connect an internal 2.5” HDD. Figure 3-9: SATA Data Connector Pin Definition Signal SATA_TX1_P SATA_TX1_N SATA_RX1_N SATA_RX1_P Table 3-8: SATA Data Connector Pin Definition...

  • Page 32: Table 3-10: Touchscreen Connector Pin Definition

    3.2.4 Touchscreen Connector The USB 2.0 connector supports a PCAP touchscreen. Figure 3-11: Touchscreen Connector Pin Definition Signal TSC_D+ TSC_D- P5V_U2_TOU Table 3-10: Touchscreen Connector Pin Definition...

  • Page 33: Figure 3-12: M.2 3042 Connector Pin Definition

    Titan2 Series 3.2.5 M.2 3042 Connector The M.2 B key port supports standard USB3.1 and USB2.0 for 4G/ 5G module. Figure 3-12: M.2 3042 Connector Pin Definition Signal Signal M2B_CONFIG_3 P_+3V3_NGFF_B P_+3V3_NGFF_B FULL_CARD_POWER_OFF U2_USB1_P W_DISABLE1 U2_USB1_N M2B_CONFIG_0 U3_USB1_RX_N_R M2_UIM_RST U3_USB1_RX_P_R...

  • Page 34: Table 3-11: M.2 3042 Connector Pin Definition

    Signal Signal M2_UIM1_DET WWAN_RESET-L M2B_CONFIG_1 P_+3V3_NGFF_B P_+3V3_NGFF_B P_+3V3_NGFF_B M2B_CONFIG_2 Table 3-11: M.2 3042 Connector Pin Definition...

  • Page 35: Figure 3-13: M.2 2230 Connector Pin Definition

    Titan2 Series 3.2.6 M.2 2230 Connector The M.2 E key port supports standard USB for a WiFi/Bluetooth module. Figure 3-13: M.2 2230 Connector Pin Definition Signal Signal M2B_CONFIG_3 P_+3V3_NGFF_B P_+3V3_NGFF_B FULL_CARD_POWER_OFF U2_USB1_P W_DISABLE1 U2_USB1_N M2B_CONFIG_0 U3_USB1_RX_N_R M2_UIM_RST U3_USB1_RX_P_R M2_UIM_CLK M2_UIM_DATA...

  • Page 36: Table 3-12: M.2 2230 Connector Pin Definition

    Signal Signal M2B_PLTRST_BUF-L M2_UIM1_DET WWAN_RESET-L M2B_CONFIG_1 P_+3V3_NGFF_B P_+3V3_NGFF_B P_+3V3_NGFF_B M2B_CONFIG_2 Table 3-12: M.2 2230 Connector Pin Definition...

  • Page 37: Mini Displayport Connector

    Titan2 Series 3.2.7 Mini DisplayPort Connector Figure 3-14: Mini DisplayPort Pin Definition Signal CON_TCP2_HPD CON_TCP2_TX0_P CON_TCP2_DDC_AUX_SEL CON_TCP2_TX0_N CON_TCP2_TX1_P CON_TCP2_TX3_P CON_TCP2_TX1_N CON_TCP2_TX3_N CON_TCP2_TX2_P CON_TCP2_I2CCLK_AUX_P CON_TCP2_TX2_N CON_TCP2_I2CCLK_AUX_N P_+3V3_DP2 Table 3-13: Mini DisplayPort Pin Definition...

  • Page 38: Table 3-14: Usb 3.1 Power (S5/S0) Jumper (Jp7)

    3.2.8 USB 3.1 Power (S5/S0) Jumper (JP7) Figure 3-15: USB 3.1 Power (S5/S0) Jumper (JP7) Pin Definition JP7 USB S5/S0 Power +5V_A (Default) +5V_S0 Table 3-14: USB 3.1 Power (S5/S0) Jumper (JP7) 3.2.9 Power & Reset Connector Figure 3-16: Power & Reset Connector Pin Definition Signal P_+3V3_A PWRBTN-L_R...

  • Page 39: Table 3-16: Buzzer Connector Pin Definition

    Titan2 Series 3.2.10 Buzzer Connector Figure 3-17: Buzzer Connector Pin Definition Signal P_+5V_S0 N40235133 Table 3-16: Buzzer Connector Pin Definition 3.2.11 Mic-in & Line-out Connector The Mic-in/Line-out supports connecting to speakers via cable. Figure 3-18: Mic-in & Line-out Connector Pin Definition...

  • Page 40: Table 3-18: Speaker Connector Pin Definition

    3.2.12 Speaker Connector The speaker connector supports 2 2x 2W speakers via cable. Figure 3-19: Speaker Connector Pin Definition Signal AMP_L+ AMP_L- AMP_R+ AMP_R- Table 3-18: Speaker Connector Pin Definition 3.2.13 USB 2.0 Connector Figure 3-20: USB 2.0 Connector Pin Definition Signal P5V_U2_CAM CN_U2_P8_N...

  • Page 41: Table 3-20: Volume & Backlight Control Connector Pin Definition

    Titan2 Series 3.2.14 Volume & Backlight Control Connector Controls volume and adjusts display brightness. Figure 3-21: Volume & Backlight Control Connector Pin Definition Signal P_+3V3_S0 EC_BTN_33 EC_BTN_34 EC_BTN_35 EC_BTN_36 Table 3-20: Volume & Backlight Control Connector Pin Definition...

  • Page 42: Figure 3-22: Key Connector Pin Definition

    3.2.15 Key Connector (Optional) The key connector supports 32 physical keys and 5 control keys with the following default values: Directions: ↑, ↓, ←, →  Numbers: 0 to 9  Functions: Enter, ESC, TAB, Backspace, Delete, Clear,  PagUp, PagDn Hot keys: F1 - F10 ...

  • Page 43: Table 3-21: Key Connector Pin Definition

    Titan2 Series Function Function Signal Signal Value Code Value Code P_+3V3_S0 EC_BTN_17 EC_BTN_1 EC_BTN_18 EC_BTN_2 Backspace EC_BTN_19 > EC_BTN_3 Delete EC_BTN_20 < EC_BTN_4 Space EC_BTN_21 EC_BTN_5 Page up EC_BTN_22 EC_BTN_6 Page down EC_BTN_23 EC_BTN_7 EC_BTN_24 EC_BTN_8 EC_BTN_25 EC_BTN_9 EC_BTN_26 EC_BTN_10...

  • Page 44: Fan Connectors

    3.2.16 Fan Connectors Figure 3-23: Fan Connector Pin Definition Signal FAN_PWR_IN (12V) BMC_FAN0_IN BMC_FAN0_OUT Table 3-22: Fan Connector Pin Definition 3.2.17 Clear CMOS Jumper (JP1501) Under conditions in which the SP2-TGL fails to boot, clearing the BIOS content stored in CMOS and restoring the default settings may be effective.

  • Page 45: Figure 3-25: Pcie Gen4 X4 Connector Pin Definition

    Titan2 Series 3.2.18 PCIe Gen4 x4 Connectors (Optional) Figure 3-25: PCIe Gen4 x4 Connector Pin Definition Side B Connector Side A Connector Name Description Name Description Hot plug +12V +12 volt power PRSNT#1 presence detect +12V +12 volt power +12V...

  • Page 46: Table 3-24: Pcie Gen4 X4 Connector Pin Definition

    Side B Connector Side A Connector Name Description Name Description SMDAT SMBus data JTAG3 Ground JTAG4 +12V +12V power JTAG5 JTAG1 +TRST# +3.3V +3.3 volt power 3.3Vaux 3.3 volt power +3.3V +3.3 volt power WAKE# Link Reactivation PERST# Reset Mechanical Key RSVD Reserved Ground...

  • Page 47: Table 3-25: Com2 Connector Pin Definition

    Titan2 Series 3.2.19 COM2 Connector Figure 3-26: COM2 Connector Pin Definition Signal COM2_DCD-L_CN COM2_RXD_CN COM2_TXD_CN COM2_DTR-L_CN COM2_DSR-L_CN COM2_RTS-L_CN COM2_CTS-L_CN COM2_RI-L_CN Table 3-25: COM2 Connector Pin Definition...

  • Page 48: Table 3-26: Led Connector Pin Definition

    3.2.20 LED Connector The LED connector supports up to 10 LEDs. Figure 3-27: LED Connector Pin Definition Signal CN_STDBY_PWR CN_GP3_LED-L CN_GP2_LED-L CN_GP1_LED-L P_+3V3_A CN_COM2_SOUT_LED_L CN_COM2_SIN_LED_L CN_COM1_SOUT_LED_L CN_COM1_SIN_LED_L CN_SATA_LED-L_R P_+3V3_S0 CN_WDT_LED-L P_+3V3_A Table 3-26: LED Connector Pin Definition...

  • Page 49: Table 3-27: Led Connector Pin Functions

    Titan2 Series Pin Function Color Remarks COM Tx for COM 1 LED blinks when COM data is transferring HW control COM Rx for COM 1 LED blinks when COM data is transferring HW control COM Tx for COM 2 LED blinks when COM data is transferring...

  • Page 50: Table 3-29: Rtc Battery Wafer Pin Definition

    3.2.22 RTC Battery Wafer Figure 3-29: RTC Battery Wafer Pin Definition Signal P_+VCC_RTC_CN_A Table 3-29: RTC Battery Wafer Pin Definition 3.2.23 DB40 Connector This connector is particular useful during carrier design and bring up phase. It offers access to the following critical parts of the mod- ule: Test points measurement of internal power rails ...
  • Page 51 Titan2 Series Signal POSTWDT_DIS# SUS_S5# SUS_S4# SUS_S3# CB_PWROK CB_RESET# SYS_RESET# PWRBTN# OCD0B OCD0A DATA RESET_IN# FUMD0 RXD6 TXD6 3.3V_A 3.3V_SMC LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME# CLK33_LPC RST# BIOS_DIS0 3V3_LPC SPI_BIOS_CLK SPI_BIOS_MOSI SPI_BIOS_MISO SPI_BIOS_CS1#...

  • Page 52: Table 3-30: Db40 Connector Pin Definition

    Signal SPI_BIOS_CS0# VCC_SPI_IN Table 3-30: DB40 Connector Pin Definition...

  • Page 53: Figure 3-31: Gpio Connector Pin Definition

    Titan2 Series 3.2.24 GPIO Connector SP2-TGL provides 4 channels of non-isolation digital input and 4 channels of non-isolation digital output circuits. 4-channel Digital Input VIH: 2.9 to 3.3V  VIL: 0 to 0.15V  4-channel Digital Output Output type: open drain N-channel ...

  • Page 54: Table 3-31: Gpio Connector Pin Definition

    Table 3-31: GPIO Connector Pin Definition Signal PCH GPIO Default Value Input/Output Voltage Range P_+3V3_S0 VIH: 2.9V VIL: 0.15V GPIO_1 GPP_B3 Output High VOH: 2.211V VOL: 0.55V VIH: 2.9V VIL: 0.15V GPIO_2 GPP_B4 Output Low VOH: 2.211V VOL: 0.55V VIH: 2.9V VIL: 0.15V GPIO_3 GPP_E3...

  • Page 55: Table 3-32: Gpio Connector Pin Voltage

    Titan2 Series Table 3-32: GPIO Connector Pin Voltage...

  • Page 56: Table 3-33: Nano Sim Connector Pin Definition

    3.2.25 Nano SIM Card Connector The Nano SIM connector provides 4G/5G communication func- tionality. Figure 3-32: Nano SIM Connector Pin Definition Signal P_+3V3_UIM_M2 M2_UIM_RST M2_UIM_CLK_R M2_UIM1_CD M2_UIM_VPP M2_UIM_DATA Table 3-33: Nano SIM Connector Pin Definition...

  • Page 57: Table 3-34: Backup Battery Connector Pin Definition

    Titan2 Series 3.2.26 Backup Battery Connector (Optional) An optional backup battery connector is available. Contact ADLINK to for more information. Figure 3-33: Backup Battery Connector Pin Definition Signal CHG_PWR CHG_SMBCLK CHG_SMBDAT SMB_ALERT-L_R Table 3-34: Backup Battery Connector Pin Definition 3.2.27 M.2 2280 SATA SSD Connector...

  • Page 58: Table 3-35: M.2 2280 Connector Pin Definition

    Signal Signal P_+3V3_S0 P_+3V3_S0 P_+3V3_S0 PCH_DEVSLP0 SATA_RX0_P SATA_RX0_N SATA_TX0_N SATA_TX0_P P_+3V3_S0 P_+3V3_S0 P_+3V3_S0 Table 3-35: M.2 2280 Connector Pin Definition...

  • Page 59: Bios Setup

    Titan2 Series BIOS Setup BIOS can be configured via the BIOS Setup Utility that is invoked during BIOS boot phase. The BIOS configuration is kept in NVRAM which is the same hardware part where the BIOS is stored. All settings will remain after the system is powered down.

  • Page 60: Menu Selection Bar

    Menu Selection Bar The Menu Selection Bar is located at the top of the screen. It displays the top level menus available to the user. Main Menu  Advanced Menu  Chipset Menu  Security Menu  Boot Menu  Save &...

  • Page 61: Menu Structure

    Titan2 Series 4.2 Menu Structure This section presents the six primary menus of the BIOS Setup Utility. Use the following tables as a quick reference for the contents of the BIOS Setup Utility. The remainder of this chapter describe the submenus and options for each menu item. The default settings are presented in bold, and the function of each setting is described in the right hand column of the table.
  • Page 62 Boot Save & Exit - Boot Configuration - Save Changes and Exit - UEFI Hard Disk Drive BBS Priorities - Discard Changes and Exit - UEFI NVME Drive BBS Priorities - Save Changes and Reset - UEFI CDROM/DVD Drive BBS Priorities - Discard Changes and Reset - UEFI SD Drive BBS Priorities - Save Options...

  • Page 63: Main Menu

    Titan2 Series 4.3 Main Menu This menu provides read-only information about your system and also allows you to set the System Date and Time. Refer to the tables below for details of the submenus and settings. 4.3.1 Main > BIOS Information...
  • Page 64 4.3.3 Main > Board Information Feature Options Description Serial Number Info only Serial Number Manufacturing Date Info only Manufacturing Date Last Repair Date Info only Last Repair Date Runtime Statistics Info only Runtime Statistics Total Runtime Info only Total Runtime Current Runtime Info only Current Runtime...

  • Page 65: Advanced Menu

    Titan2 Series 4.4 Advanced Menu This menu contains the settings for most of the user interfaces in the system. 4.4.1 Advanced > CPU Configuration Feature Options Description Type Info only Displays the Processor Type Info only Displays the Processor ID...
  • Page 66 Feature Options Description Package C-State Disabled Package C-State Demotion Demotion Enabled Package C-State \ Disabled Package C-State Un-demotion Enabled Un-demotion DTS SMM Disabled Disabled: ACPI thermal management uses Enabled EC reported temperature values. Critical Temp Reporting (Out Of spec.) 4.4.2 Advanced >...
  • Page 67 Titan2 Series Feature Options Description Auto Data format and Color Data format and Color Depth Depth VESA 24 bpp select JEIDA 24 bpp JEIDA/vesa 18 bpp LVDS Output Mode Auto Single/Dual mode select Dual LVDS bus Single LVDS bus DE Polarity...
  • Page 68 Feature Options Description PCI Wake Disabled Enables/Disables PCIe Enabled wake function RI Wake Disabled Enables/Disables RI wake Enabled Function. Disabled RTC Wake system from Enables/Disables System Fixed Time wake on alarm event. Dynamic Time Select FixedTime, system will wake on the hr::min::sec specified.
  • Page 69 Titan2 Series 4.4.4 Advanced > Power Management > Power Con- sumption Feature Options Description Power Consumption Info only Current Input Current Info only Current Input Current Current Input Power Info only Current Input Power Info only 5VSBY Info only 5VSBY...
  • Page 70 4.4.6 Advanced > System Management > SEMA Fea- tures Feature Options Description SEMA Features Info only Uptime & Power Cycles Counter Info only Uptime & Power Cycles Counter System Restart Event Info only System Restart Event 1024 Bytes User-Flash Info only 1024 Bytes User-Flash Watchdog Info only Watchdog Temperatures...
  • Page 71 Titan2 Series 4.4.7 Advanced > System Management > Flags Feature Options Description BMC Flags Info only BMC Flags BIOS Select Info only BIOS Select ATX/AT-Mode Info only ATX/AT-Mode Exception Code Info only Exception Code 4.4.8 Advanced > System Management > SEMA > Tem-...
  • Page 72 4.4.9 Advanced > Watchdog Timer Feature Options Description Power-Up Watchdog Disabled Enbles/Disables the Watchdog Timer Enabled Timeout [Max-Value, The time the Power Up Watchdog Min-Value, should wait until it resets the system. Step-Value] = [0xFFFF, 0x0018, 0x0001] RunTime Watchdog Disabled The RunTime Watchdog resets the Enabled system after a certain amount of time...
  • Page 73 Titan2 Series 4.4.11 Advanced > Super IO Configuration > Serial Port 1 Configuration Feature Options Description Serial Port Disabled Enables/Disables the Enabled serial port (COM) Device Settings IO=3F8h; IRQ=4 Auto Change Settings Selects optimal settings IO=3F8h; IRQ=4 for Super IO Device IO=3F8h;...
  • Page 74 4.4.13 Advanced > Super IO Configuration > Serial Port 3 Configuration Feature Options Description Disabled Serial Port Enables/Disables the Enabled serial port (COM) Device Settings Reset Required Change Settings Auto Selects optimal settings IO=3E8h; IRQ=7 for Super IO Device IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 IO=2F8h;...
  • Page 75 Titan2 Series 4.4.15 Advanced > Serial Console Redirection Feature Options Description COM0 Console Redirection Disabled Enables/Disables console redirection on Enabled COM0 port. COM1 Console Redirection Disabled Enables/Disables console redirection on Enabled COM1 port. COM2 Console Redirection Disabled Enables/Disables console redirection on Enabled COM2 port.
  • Page 76 Feature Options Description Parity None A parity bit can be sent with the data Even bits to detect some transmission errors. Even: parity bit is 0 if the num of 1's in Mark the data bits is even. Space Odd: parity bit is 0 if num of 1's in the data bits is odd.
  • Page 77 Titan2 Series 4.4.17 Advanced > Console Redirection > COM 1 > Con- sole Redirection Settings Feature Options Description Terminal Type VT100 Emulation: VT100Plus ANSI: Extended ASCII character set. VT-UTF8 VT100: ASCII character set. ANSI VT100Plus: Extends VT100 to support color, function keys, etc.
  • Page 78 Feature Options Description Flow Control None Flow control can prevent data loss from Hardware buffer overflow. When sending data, if RTS/CTS the receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow.
  • Page 79 Titan2 Series Feature Options Description None Parity A parity bit can be sent with the data Even bits to detect some transmission errors. Even: parity bit is 0 if the num of 1's in Mark the data bits is even.
  • Page 80 4.4.19 Advanced > Console Redirection > COM 3 > Con- sole Redirection Settings Feature Options Description Terminal Type VT100 Emulation: VT100Plus ANSI: Extended ASCII character set. VT-UTF8 VT100: ASCII character set. ANSI VT100Plus: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.
  • Page 81 Titan2 Series Feature Options Description Flow Control None Flow control can prevent data loss from Hardware buffer overflow. When sending data, if RTS/CTS the receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow.
  • Page 82 Feature Options Description PXE boot wait time [Max- Wait time in seconds to press ESC key to Value, abort PXE boot. Use either +/- or numeric Min-Value, keys to set the value. Step- Value] = [0x05, 0x00, 0x01] 4.4.21 Advanced > Trusted Computing > TPM 1.2 Configu- ration Feature Options...
  • Page 83 Titan2 Series Feature Options Description Device Select TPM 1.2 TPM 1.2 will restrict support to TPM 1.2 TPM 2.0 devices, TPM 2.0 will restrict support to Auto TPM 2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices will be...
  • Page 84 Feature Options Description SHA384 PCR Bank Disabled Enables/Disables SHA384 PCR Bank Enabled SHA512 PCR Bank Disabled Enables/Disables SHA512 PCR Bank Enabled SM3_256 PCR Bank Disabled Enables/Disables SM3_256 PCR Bank Enabled SM3_256 PCR Band Disabled Enables/Disables SM3_256 PCR Bank Enabled None Pending operation Schedule an Operation for the Security TPM Clear...
  • Page 85 Titan2 Series Feature Options Description USB Mass Storage Disabled Enables/Disables USB Mass Storage Driver Driver Support Enabled Support. USB hardware delays and time-outs: USB transfer time-out 1 sec The time-out value for Control, Bulk, and 5 sec Interrupt transfers. 10 sec...
  • Page 86 Feature Options Description - Delay time [Max-Value, Set the delay time before generating a Min-Value, Reset event if timing needs adjustment (ms) Step-Value] = [0x2710, 0x0001, 0x0001] - Reset Type Cold Reset Select a warm or cold reset. Warm Reset...

  • Page 87: Chipset

    Titan2 Series 4.5 Chipset 4.5.1 Chipset > System Agent (SA) Configuration Feature Options Description VT-d Supported 4.5.2 Chipset > System Agent (SA) Configuration > Memory Configuration Feature Options Description Memory RC Version Info only Memory Speed Info only Memory Timings...
  • Page 88 Feature Options Description Max TOLUD Dynamic, 1 GB, Maximum Value of 1.25 GB, 1.5 GB, TOLUD. Dynamic 1.75 GB, 2 GB, 2.25 GB, 2.5 GB, assignment would 2.75 GB, 3 GB, 3.25 GB, 3.5 GB adjust TOLUD automatically based on largest MMIO length of installed graphics controller.
  • Page 89 Titan2 Series Feature Options Description DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. 128M 160M 32M/F7 DVMT Total Gfx Mem 128M DVMT5.0 Total Graphic Memory size 256M used by the Internal Graphics Device.
  • Page 90 Feature Options Description Root Port BDF details SATA Controller RAID0 Disabled Enables/Disables RAID0 support Enabled RAID1 Disabled Enables/Disables RAID1 support Enabled RAID5 Disabled Enables/Disables RAID5 support Enabled 4.5.5 Chipset > System Agent (SA) Configuration > PCI Express Configuration Feature Options Description PCI Express Clock Gating Disabled...
  • Page 91 Titan2 Series Feature Options Description Enable ClockReq Messaging Disabled Enables/Disables ClockReq Enabled Messaging PCI Express Slot Selection Selects the PCIe M2 or CEMx4 slot CEMx4 Slot PCIE Resizable BAR Support Disabled Enables/Disables PCIE Resizable Enabled BAR Support Enable RST GPIO Delay...
  • Page 92 Feature Options Description Peer Memory Write Enable Disabled Enables/Disables Peer Memory Enabled Write Compliance Test Mode Disabled Enable when using Compliance Enabled Load Board > PCI Express Root Port 5 > PCI Express Root Port 6 > PCI Express Root Port 7 >...
  • Page 93 Titan2 Series Feature Options Description Disabled Spin Up Device If enabled for any ports, Staggerred Enabled Spin Up will be performed and only the drives which have this option enabled will spin up at boot. Otherwise all drives spin up at boot.
  • Page 94 Feature Options Description SATA Device Type Hard Disk Identifies if the SATA port is connected Drive, to a Solid State Drive or Hard Disk Solid State Drive. Drive Topology Unknown SATA topology ISATA Direct Connect Flex SATA Port 1 DevSlp Disabled Enables/Disables SATA Port 0 DevSlp.
  • Page 95 Titan2 Series Feature Options Description USB SS Physical Disabled Enables/Disables this USB Physical Connector #0 Enabled Connector (physical port). Once disabled, any USB devices plugged USB SS Physical Disabled into the connector will not be detected Connector #1 Enabled by BIOS or OS.

  • Page 96: Security

    Feature Options Description BIOS Lock Disabled Enables/Disables the PCH BIOS Lock Enabled Enable feature. Required to be enabled to ensure SMM protection of flash. S0 State State After G3 Specifies what state to go to when power is S5 State re-applied after a power failure (G3 state).

  • Page 97: Boot

    Titan2 Series 4.7 Boot 4.7.1 Boot > Boot Configuration Feature Options Description Setup Prompt Timeout [Max-Value, Number of seconds to wait for setup Min-Value, activation key. 65535 (0xFFFF ) Step-Value] = means indefinite waiting. [0xFFFF, 0x0001, 0x0001] Bootup NumLock State On Selects the keyboard NumLock state.

  • Page 98: Save & Exit

    4.8 Save & Exit Feature Options Description Save Changes and Exit Exits system setup after saving the changes. Discard Changes and Exit Exits system setup without saving any changes. Save Changes and Reset Resets the system after saving the changes. Discard Changes and Reset Yes Resets system setup without saving any changes.

  • Page 99: Driver & Application Installation

    Titan2 Series Driver & Application Installation After installing the operating system, all related drivers must be installed for the system to function properly. This section describes the drivers needed for Windows operating systems and the proce- dures to install them. For other operating system support, contact ADLINK for further information.
  • Page 100 This page intentionally left blank.

  • Page 101: Important Safety Instructions

    Titan2 Series Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. Read these safety instructions carefully.
  • Page 102 A Lithium-type battery may be provided for uninterrupted  backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type; please dispose of used batteries appropriately. CAUTION: The device must be serviced by authorized technicians when: ...

  • Page 103: Consignes De Sécurité Importante

    Titan2 Series Consignes de Sécurité Importante Pour la sécurité de l'utilisateur, veuillez lire et suivre toutes les instructions, avertissements, mises en garde et notes marqués dans ce manuel et sur l'appareil associé avant de manipuler/d'uti- liser l'appareil, afin d'éviter toute blessure ou tout dommage.
  • Page 104 Installez/fixez et utilisez l'appareil uniquement sur des  surfaces stables et/ou sur les fixations recommandées. L'ordinateur Smart Touch est alimenté par un adaptateur  ou une source CC. Veuillez vous assurer que l'adapta- teur ou la source CC doit conserver la connexion à la terre s'il est doté...
  • Page 105 Titan2 Series Il est recommandé d'installer l'appareil uniquement dans une  salle de serveurs ou une salle informatique où l'accès est: Réservé au personnel de service qualifié ou aux utilisa-  teurs familiarisés avec les restrictions appliquées à l'emplacement, aux raisons de ces restrictions et toutes les précautions requises...

  • Page 106: Fcc Warning

    EMC Compliance CE Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. FCC Warning This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 107: Getting Service

    San Jose, CA 95119-1208, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-600-1189 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com ADLINK Technology GmbH Hans-Thoma-Straße 11...
