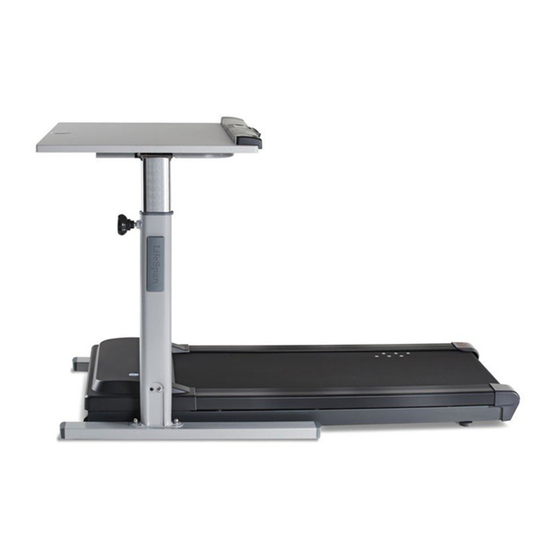

LifeSpan TR5000B Pro Owner's Manual
Under-desk treadmill
Hide thumbs
Also See for TR5000B Pro:
- Owner's manual (23 pages) ,
- Owner's manual (23 pages) ,
- Owner's manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for LifeSpan TR5000B Pro
Summary of Contents for LifeSpan TR5000B Pro

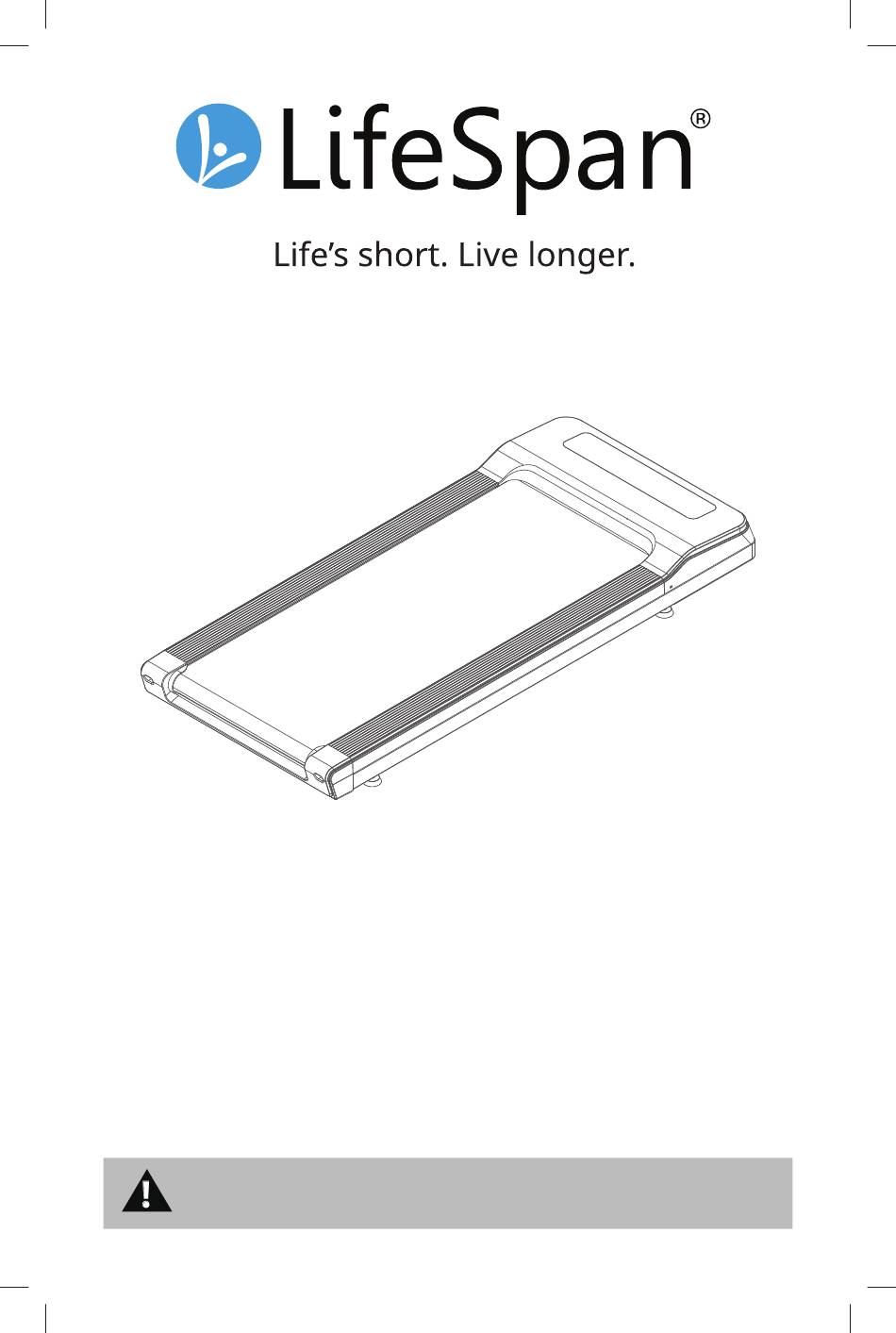

- Page 1 LifeSpan TR5000B Pro Under-desk Treadmill Owner’s Manual Before installing and using this treadmill, please carefully read all the instructions in the manual and keep them for future reference.
- Page 3 Welcome Welcome to LifeSpan: Pioneering Wellness at Work! Transform your workspace with our Active Workstations! Since 2016, LifeSpan has been leading the revolution in office wellness, allowing you to burn over 1,000 extra calories during your workday. Embrace a more dynamic and energetic office life with us! Our products are more than just office furniture;...
-
Page 5: Table Of Contents
Contents Welcome Safety First..................4 IMPORTANT SAFETY INSTRUCTIONS WARNING Safety Tips While in Use About Your LifeSpan Under-desk Treadmill........7 Specifications Proper Grounding Power Cord Options Unique Features Moving....................10 Moving the Treadmill Base Warranty and Safety Precautions..........11 Warranty Exclusions and Limitations Maintenance and Tips ..............12... -
Page 6: Safety First
Safety First IMPORTANT SAFETY INSTRUCTIONS Before starting any exercise program, we recommend that you consult a professional doctor, particularly if you are over 35 years old or have had health problems in the past. We are not responsible for injuries caused by the use of this equipment. The electric treadmill should only be switched on after it has been fully installed and the motor protection cover is in place. - Page 7 Safety First If the machine is not going to be used for an extended period, disconnect the power supply. To disconnect, grip the power plug and pull it out directly, rather than pulling on the cord, to prevent damage to the power Cord's internal wiring. Use only the designated power cord for the electric treadmill.
-
Page 8: Safety Tips While In Use
Safety First Safety Tips While in Use Always consult a physician before beginning an exercise program. If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising immediately and consult your physician before continuing. Do not wear clothing or jewelry that might catch on any part of the treadmill. -
Page 9: About Your Lifespan Under-Desk Treadmill
About Your LifeSpan Under-desk Treadmill Specifications TR5000B Pro Walking Belt Size 20"x48.43"(51 x123 cm) Deck 0.71"(1.8 cm) Drive Motor 4.5HP(Peak BLDC) Max User Weight 400 lbs. (180 kg) Net Weight 84.13 lbs.(38.16 kg) Dimensions 60.63"Lx27.95”W(154 x71 cm) - Page 10 POWER SWITCH...
-
Page 11: Unique Features
About Your LifeSpan Under-desk Treadmill Unique Features As a leader in active workstations, LifeSpan has developed a number of unique features in our treadmills making them more engaging, safer and easier to use. Intelli-Guard™ Walk confidently knowing your safety is assured with Intelli-Guard™. Step away from your treadmill for more than sixty seconds and your treadmill’s belt will... -
Page 12: Moving
Moving Moving the Treadmill Base Make sure the ON/OFF switch is turned OFF and the power cord is unplugged from the wall. Make sure nothing is on or near your treadmill which might spill, be knocked off, or prevent the treadmill from moving. Move the entire machine to the desired location, as illustrated in the diagram. -
Page 13: Warranty And Safety Precautions
In order to insure our product warranty and to ensure the safe and efficient operation of your LifeSpan product, only authorized parts can be used. The warranty is void if any parts other than those provided by LifeSpan are used. -
Page 14: Maintenance And Tips
Let all other users know the treadmill needs service. CAUTION: Acidic cleaning detergents may damage painted or powder coated surfaces and should not be used. Such cleaners may void the LifeSpan warranty. -
Page 15: Belt Lubrication
Never put more than two ounces of treadmill lubricant into the running belt since over lubrication can cause damage to your treadmills electronic components. LifeSpan offers 100% silicone lubricant that can be ordered at www.LifeSpanFitness.com. The walking belt should be lubricated every 50 hours of use or three months. -
Page 16: Belt Tensioning
Maintenance and Tips Belt Tensioning If the belt begins to slip and needs to be tensioned, tension bolts are accessible from the back of the treadmill. Before tensioning the belt, start the treadmill and set the speed to 3 mph (5 kph). Using a 6 mm Allen wrench, included in your hardware bag, turn the right and left tension bolts 1/2 turn clockwise. -
Page 17: Belt Alignment
Maintenance and Tips Belt Alignment Press Start, then increase the treadmill speed to 3 mph (5 kph). Stand behind the treadmill to see which way the belt is drifting. If the belt drifts to the left, turn the left adjustment bolt 1/4 turn clockwise and the right adjustment bolt 1/4 turn counter-clockwise. -
Page 18: Exercise Guidelines
Exercise Guidelines Warm-up It's best to stretch before exercising. Warm muscles are more pliable, so take 5-10 minutes to warm up. Then stop and perform the following stretches — do each five times, holding each leg for 10 seconds or more, and repeat at the end of your workout. Forward Bend: Slightly bend your knees, lean forward slowly, relax your back and shoulders, and try to touch your toes with your hands as much as... -
Page 19: Preparation
Exercise Guidelines Preparation If you are over 35 years old, have health issues, or are new to exercising, please consult a doctor or a professional before using the treadmill. Familiarize yourself with the treadmill's controls, such as how to start, stop, and adjust the speed, before using it. -
Page 20: Heat Consumption Method
Exercise Guidelines Heat Consumption Method Warm up for 5 minutes at a speed between 4-4.8 km/h. Increase the speed by 0.3 km/h every 2 minutes, aiming to exercise at a challenging but sustainable speed for 45 minutes. During a one-hour TV show, increase the speed by 0.3 km/h at every commercial break, then return to the prior speed when the program resumes. -
Page 22: Exploded Drawing
EXPLODED DRAWING Parts List Qty. Item & Specifications Item & Specifications Qty. T-lZJ-1 T-26 Socket Main frame group T-27 Screw 4.2*10 Front roller T-28 Back roller Overload protector T- 4PB-2 T-29 Running Deck Power Switch T-S PD-3 T-30 Screw M3*10 ( Optional ) Running Belt T- 6BT-1 T-31... - Page 23 The treadmill may shut down if the current exceeds the rated load, triggering the system's self- protection. Restart the machine. Ensure no part of the treadmill is jammed, causing the motor to stop rotating. Adjust the treadmill to restart or apply lubricating oil. If there is excessive noise or a burning smell when the motor runs, replace the motor.
-
Page 24: Console Operations
Console Operations... -
Page 25: Part Description
Setup With Your Existing Desk Hardware Item# Qty. Part Description SC130 Console #6 x 1/2" Phillips Screw Double Sided Tape Safety Key Unit & Cable Cable Ties Velcro Strap 9 Pin Data Cable Desktop Ht. Adj. Cable... - Page 26 Setup With Your Existing Desk Install the Safety Key A. Get the Safety Key Unit(4) and attach the Double Sided Tape(3) to the side of the Safety Key Unit that will be against the desk. Position toward the front of the desk where the treadmill or bike will be used, and tack in place.
- Page 27 Setup With Your Existing Desk Setup With Your Existing Desk Position the pre-assembled treadmill as shown below. B. Lift the rear of the treadmill and roll it forward under the desk. Once in position, stand on the treadmill and see if you feet are too close to the hood. If so, reposition the treadmill further under the desk.
- Page 28 Setup With Your Existing Desk Note: Default setting is 4 mph (6.4 kph). Can be changed to max speed of 2 mph/ 3.2 kph in personal settings...
- Page 29 Console Overview 3.5" Display Screen Preset buttons: Preset treadmill speeds. The default values for preset speeds are P1=0.4 mph, P2=1.2 mph, and P3=2.0 mph. Up and Down Arrows: When using treadmill will increase or decrease speed. Pause/Stop Button: Used to pause/stop the treadmill, or to pause bike program. Press again and the summary screen of your exercise data will show.
-
Page 30: Quick Start
Treadmill Operation Quick Start Make sure the safety key is set in place. Note: The display will show a warning image if the Safety Key is not engaged. Please make sure that the Safety Key is fully engaged. It is possible the display will not show a warning when just partially engaged. -
Page 31: Custom Settings
SET and the Pause buttons together for 3 seconds while in standby mode. Then press the Pause button to leave the engineering mode. Settings Display Choice 1 Setting Choice 2 (Default) Intelli-Guard Buzzer: Speed Resume: Speed Limit (mi/h): Adj. Desk: Present None BT ID No. LifeSpan-TM-2100 Sleep Mode: Preset Height Speed... -
Page 32: Troubleshooting
Treadmill Desk Troubleshooting The LifeSpan Treadmill Desk is designed and manufactured to be reliable and easy to use. However, if you have a problem, these troubleshooting steps may help you find the cause. Problem: The console is erratic or not lighting up. - Page 33 Problem: The treadmill belt is beginning to drift to the left or right and needs to be aligned. Solution: Refer to the owner’ s manual included with the treadmill base. If you experience any other error codes, please call LifeSpan Customer Support.
- Page 34 LifeSpan TR5000B Pro Under-desk Treadmill Phone: (801) 973-9993 support@lifespanfitness.com www.LifeSpanFitness.com Version 2.0...
