SIMPLIHOME brooklyn + max WyndenHall AXCRED47-RNAB Manual

Redmond / mansfield / stanwick entryway storage cabinet
Hide thumbs

Advertisement

Table of Contents

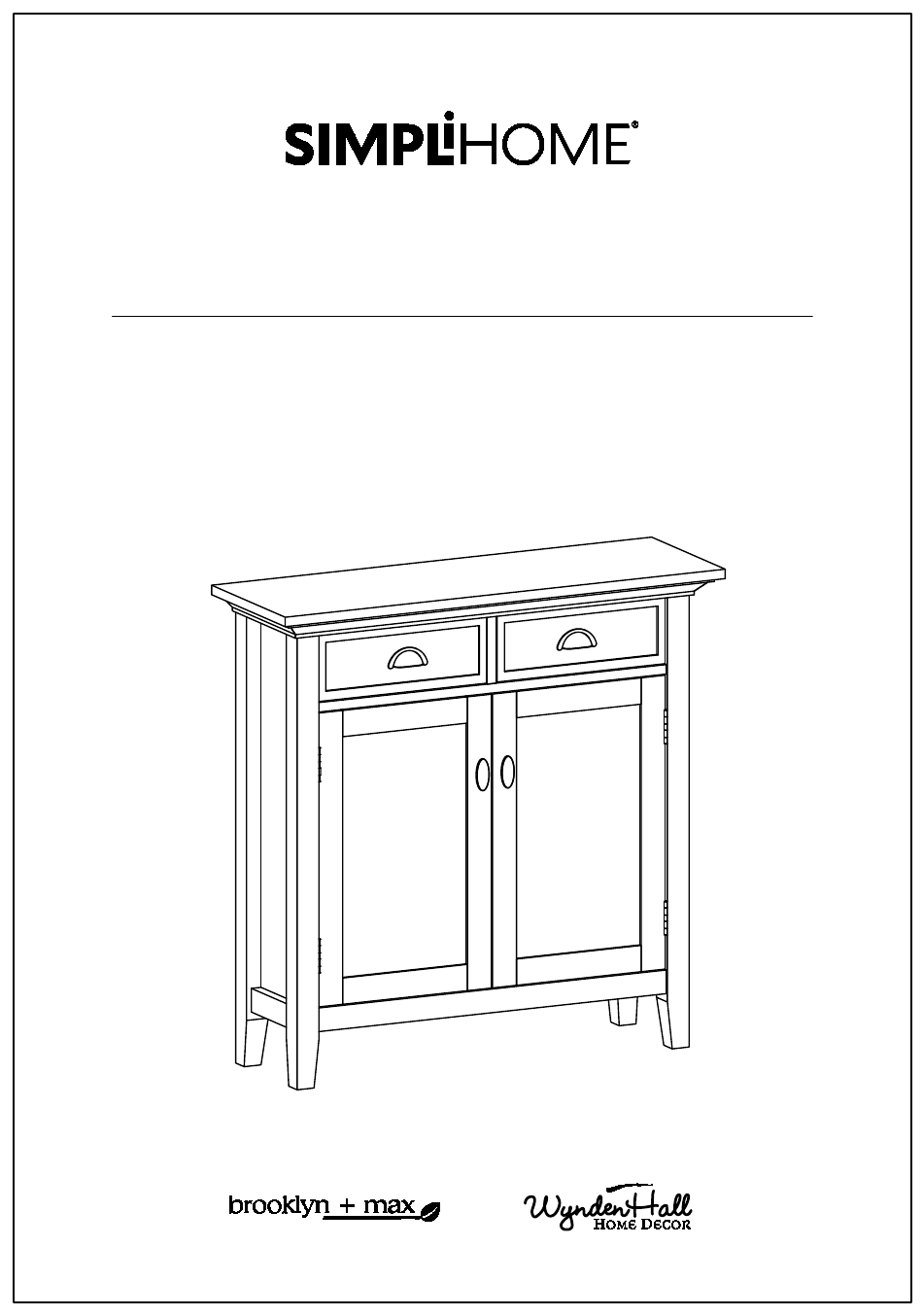

Redmond / Mansfield / Stanwick
Entryway Storage Cabinet
Model # AXCRED47-RNAB
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCRED47-RNAB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCRED47-RNAB

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCRED47-RNAB

  • Page 1 Redmond / Mansfield / Stanwick Entryway Storage Cabinet Model # AXCRED47-RNAB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.

  • Page 7: Bottom Shelf

    Pre-Assembly Information Model # AXCRED47-RNAB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 SMALL DIVIDER LARGE DIVIDER MIDDLE FRAME QTY 1 QTY 1 QTY 1 Warning Label BOTTOM SHELF LEFT BACK PANEL RIGHT BACK PANEL QTY 1 QTY 1 QTY 1...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCRED47-RNAB Part Description SHELF LEFT DOOR RIGHT DOOR QTY 2 QTY 1 QTY 1 RIGHT DRAWER SIDE DRAWER FRONT LEFT DRAWER SIDE QTY 2 QTY 2 QTY 2 DRAWER BACK DRAWER BOTTOM QTY 2 QTY 2...
  • Page 9 Pre-Assembly Information Model # AXCRED47-RNAB Hardware Description WOOD DOWEL ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY Ø8 X 30mm M6 X 30mm CAM LOCK QTY 1 QTY 6 QTY 12 SETS QTY 24 PHILLIPS SCREW HANDLE PHILLIPS SCREW ROUND HEAD HANDLE M4 X 25mm M3 X 15mm...
  • Page 10 Components - Key Diagram Model # AXCRED47-RNAB...
  • Page 11 Assembly Model # AXCRED47-RNAB Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front J . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides KL ,KR to Drawer Front J .
  • Page 12 Assembly Model # AXCRED47-RNAB Step 3 1. Slide Drawer Bottom M firmly into slots on Drawer Sides KL , KR and Drawer Front J . 2. Align Drawer Back L with Drawer Bottom M and press firmly into slot. 3. Attach Drawer Back using two Allen Key Screws 1 through guide holes on each Drawer Side KL , KR .
  • Page 13 Assembly Model # AXCRED47-RNAB Step 4 1. Use Phillips screwdriver to attach Handle 6 to Drawer Front J . Repeat Step 1 - 4 for the second drawer.
  • Page 14 Assembly Model # AXCRED47-RNAB Step 5 1. Attach two Cam Lock Pins 2 into pre-drilled holes on each Top A , Middle Frame E . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Wood Dowels 3 into guide holes on Middle Frame E , Bottom Shelf F . 4.
  • Page 15 Assembly Model # AXCRED47-RNAB Step 6 1. Use two Allen Key Screws 1 to attach Small Divider C through guide holes from Middle Frame E to pre-drilled holes of Small Divider C . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
  • Page 16 Assembly Model # AXCRED47-RNAB Step 7 1. Use two Allen Key Screws 1 to attach Large Divider D through guide holes from Bottom Shelf F to pre-drilled holes of Large Divider D . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
  • Page 17 Assembly Model # AXCRED47-RNAB Step 8 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom F and Middle Frame E . 2. Use two Allen Key Screws 1 each Side BL , BR to Bottom F through guide holes. 3.
  • Page 18 Assembly Model # AXCRED47-RNAB Step 9 1. Align Cam Lock Pin with guide holes on Top A and attach Top A to Small Divider C and Side BL , BR . 2. Use four Allen Key Screws 1 to attach Sides BL , BR through guide holes from Sides BL , BR to pre-drilled holes of Top A .
  • Page 19 Assembly Model # AXCRED47-RNAB Note: Step 10 Warning Label 1. Attach the Back Panels GL , GR to back frame using Phillips Screws Round Head 7 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
  • Page 20 Assembly Model # AXCRED47-RNAB Step 11 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors IL , IR to Sides BL , BR using Phillips Screws 8 into pre-drill holes: - Using Phillips screwdriver to attach Screws 8 at middle hole of hinges for both top &...
  • Page 21 Assembly Model # AXCRED47-RNAB Step 12 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 9 to top corner of Doors IL , IR using Phillips Screws 8 into pre-drilled holes on Doors IL , IR . 2.
  • Page 22 Assembly Model # AXCRED47-RNAB Step 13 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf H in desired location. 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf H as a tipping restraint.
  • Page 23 Assembly Model # AXCRED47-RNAB Step 14 1. Turn the wood lock ( on the bottom frame ) to be perpendicular to the frame for safety stop ( intended to keep the drawers from pulling all the way out ).
  • Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 15 NOTE: The screwdriver is not included in the hardware pack.
  • Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
