Summary of Contents for SIMPLIHOME WyndenHall Brooklyn + Max AXCRED17-LGB

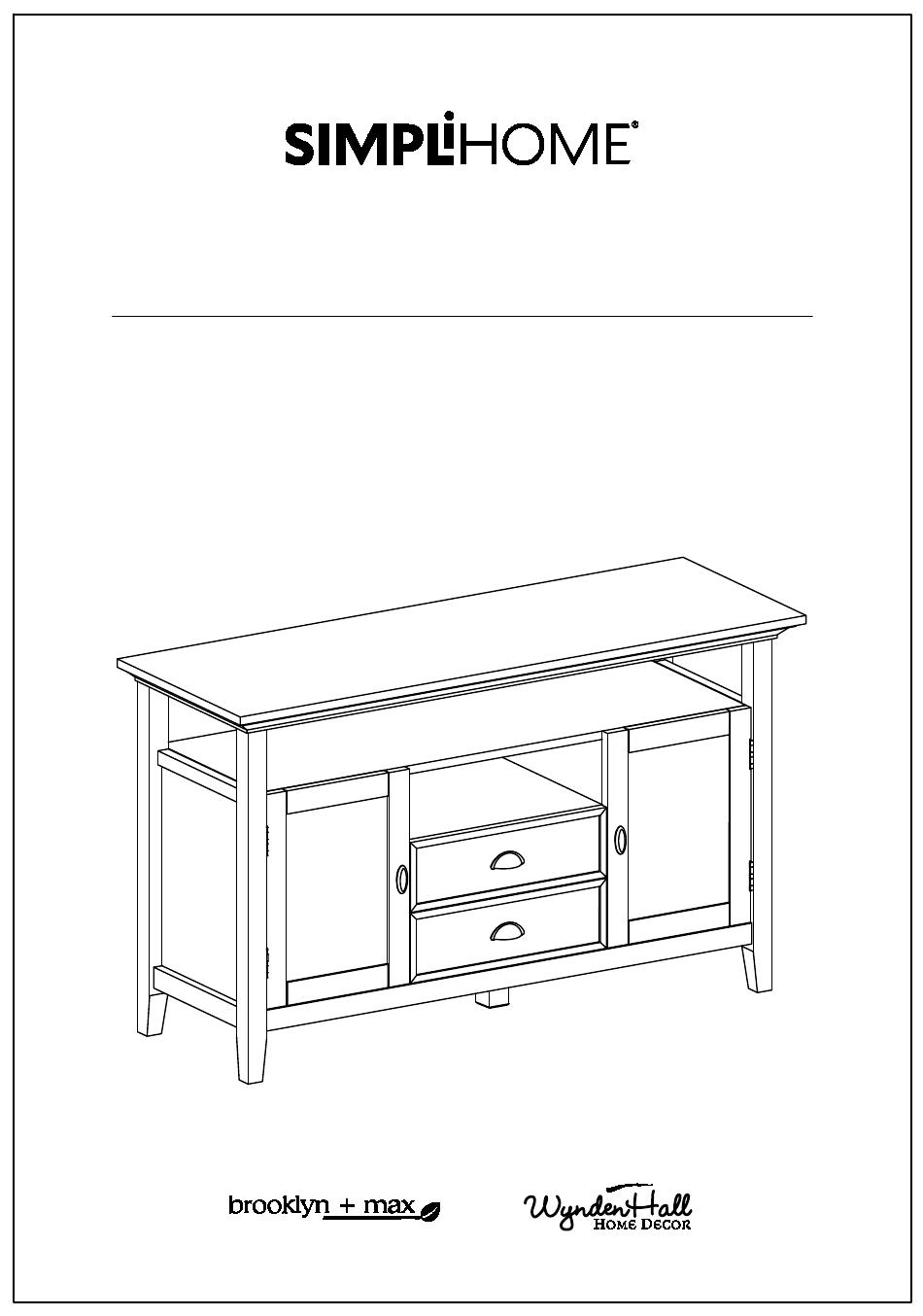

- Page 1 Redmond / Mansfield / Stanwick Tall TV Media Stand Model # AXCRED17-LGB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 200 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Shelf
Pre-Assembly Information Model # AXCRED17-LGB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 Warning Label DOOR (L&R Same) TOP BACK PANEL CABINET SHELF QTY 2 QTY 1 QTY 2... -
Page 9: Drawer Bottom
Pre-Assembly Information Model # AXCRED17-LGB Part Description BOTTOM BACK PANEL TOP SHELF DRAWER FRONT QTY 1 QTY 1 QTY 2 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 2 QTY 2 QTY 2 DRAWER BOTTOM MIDDLE SHELF SUPPORT LEG QTY 2 QTY 1 QTY 1... - Page 10 Pre-Assembly Information Model # AXCRED17-LGB Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY SHELF SUPPORT QTY 26 QTY 1 QTY 12 PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 15mm M3 X 12mm M4 X 15mm QTY 12 QTY 8 QTY 25...
- Page 11 Components - Key Diagram Model # AXCRED17-LGB...
- Page 12 Assembly Model # AXCRED17-LGB Step 1 1. Attach four Cam Lock Pins 9 to back of Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides JL , JR . 3. Insert two Cam Locks 9 into pre-drilled holes on each Drawer Side JL , JR . 4.
- Page 13 Assembly Model # AXCRED17-LGB Step 3 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back K using two Allen Key Screws 1 through pre-drilled holes on each Side JL , JR . 3.
- Page 14 Assembly Model # AXCRED17-LGB Step 5 1. Attach three Cam Lock Pins 9 to back of each Divider DL , DR . 2. Align Cam Lock Pins with pre-drilled holes and attach Middle Shelf M . 3. Insert six Cam Locks 9 into pre-drilled holes on Middle Shelf M . 4.
- Page 15 Assembly Model # AXCRED17-LGB Step 6 1. Attach six Cam Lock Pins 9 to underneath of Top Shelf H . 2. Align Cam Lock Pins with pre-drilled holes and attach Dividers DL , DR . 3. Insert three Cam Locks 9 into pre-drilled holes on each Divider DL , DR . 4.
- Page 16 Assembly Model # AXCRED17-LGB Step 7 1. Attach three Cam Lock Pins 9 to back of each Side AL , AR . 2. Align Cam Lock Pins with pre-drilled holes and attach Top Shelf H . 3. Insert six Cam Locks 9 into pre-drilled holes on Top Shelf H . 4.
- Page 17 Assembly Model # AXCRED17-LGB Step 8 1. Attach Top B to Sides AL , AR using six Allen Key Screws 1 . (three screws on each Side). 2. Use Allen Key 2 to tighten Screws. Do not over-tighten. 3. Attach Support Leg N to Bottom Shelf C using four Phillips screws 12 . 4.
- Page 18 Assembly Model # AXCRED17-LGB Step 9 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Attach Back Panels G1 , G2 to back frame of TV Stand using twenty five Phillips Screws Round Head 6 through pre-drilled holes. 2.
- Page 19 Assembly Model # AXCRED17-LGB Step 10 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Doors E to Sides AL , AR using Phillips Screws 4 into guide holes. 2. Attach Magnet Plates 7 to bottom corner of Doors E using Phillips Screws 5 into guide holes on Doors E .
- Page 20 Assembly Model # AXCRED17-LGB Step 11 1. Use four Shelf Supports 3 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 3 may be used on back top of each Cabinet Shelf F as a tipping restraint. 3.
- Page 21 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 22 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
