CAIRE Eclipse 5 Technical Maintenance Manual

Equipment
Responsible
A Check condition, replace HEPA & compressor filter.
Frequency 3 months (more frequently if the location is very dusty)
Torx screwdriver
Equipment
Compressor filter (EEMDCONS613), HEPA filter (EEMDCONA601 for Eclipse 5,
Parts
EEMDCONS714 for Eclipse 3), Battery if needed (EEMDCONS614)
12 hours (including 2x 5 hours charging)
Duration
Check the general condition of the equipment. Replace
1
or repair the parts if they are damaged:
- The chassis (repair).
- The power cable/adapter (replace).
- The tubes (replace)
- The foam dust filter
Replace the compressor filter:
2
The compressor filter is located near the external power
connection.
• Remove the cover (10 screws).
• Disconnect the silicon tube and install the new
compressor filter.
• Be careful not to damage the cables!
Replace the HEPA filter:
3
The HEPA filter is located inside the oxygen tank.
• Disconnect the silicon tube (a).
• Unscrew the oxygen tank cap (b).
• Remove old HEPA filter and install new one (c).
• Replace cover (10 screws).
a
Battery test:
4
• Connect the AC adapter and charge for 5 hours.
• Disconnect the charger, set the flow to 3 litres/minute
and start the machine on battery.
o It should work for at least 30m.
o If it runs for less the battery should be changed.
• Reconnect the AC adapter and recharge the machine
before returning it to service.

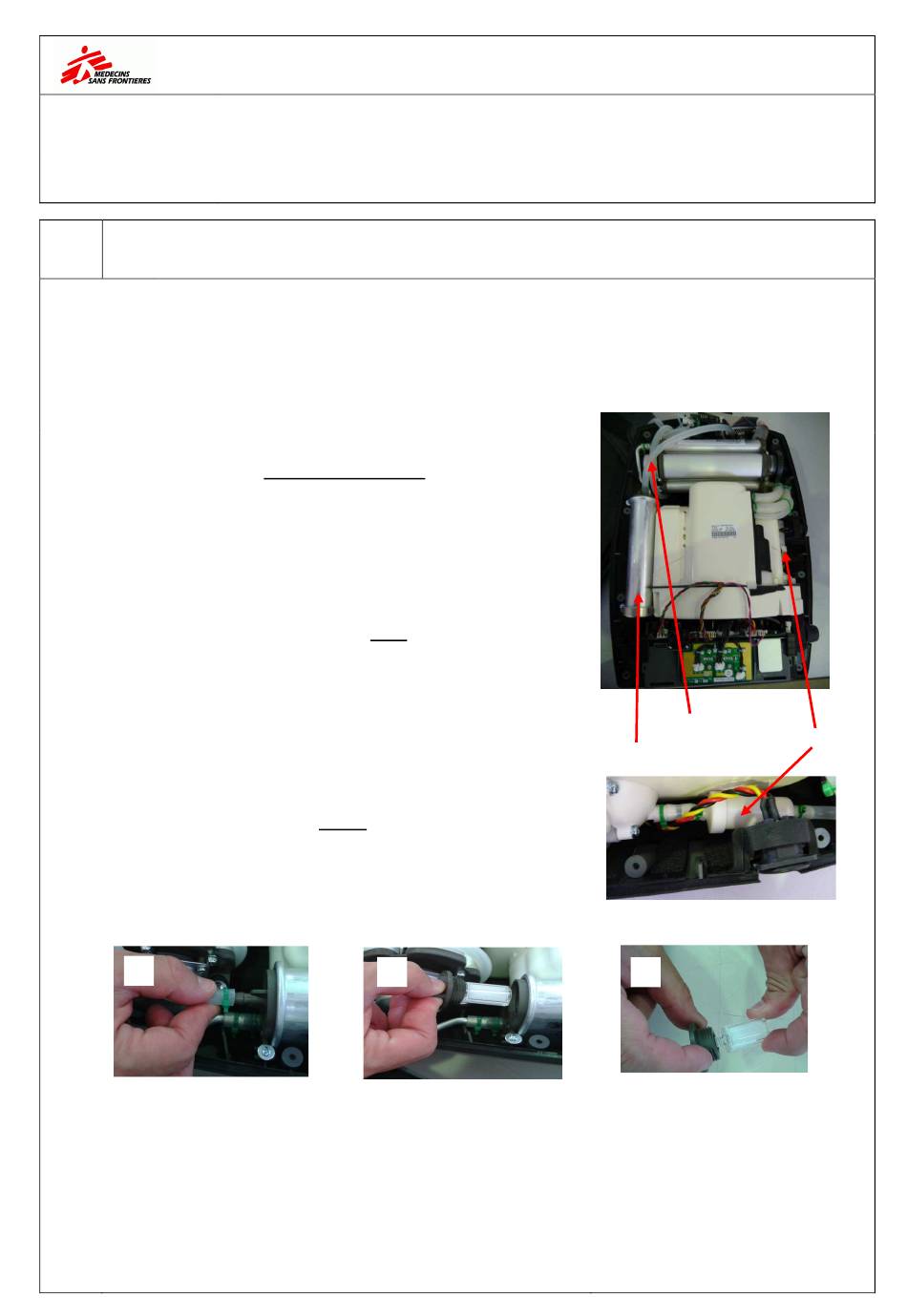

MSF Biomed - Protocol II : Technical Maintenance – Oxygen Concentrator SEQUAL Eclipse
Protocol II : Technical Maintenance
CONCENTRATOR O2 portable (Eclipse 5)
Eclipse 3 no longer available, Eclipse 5 EEMDCONE6--
(Log) Biomed Service
b
HEPA filter
Compressor filter
Oxygen tank
c
c
v2, May 2017, page 1/2
