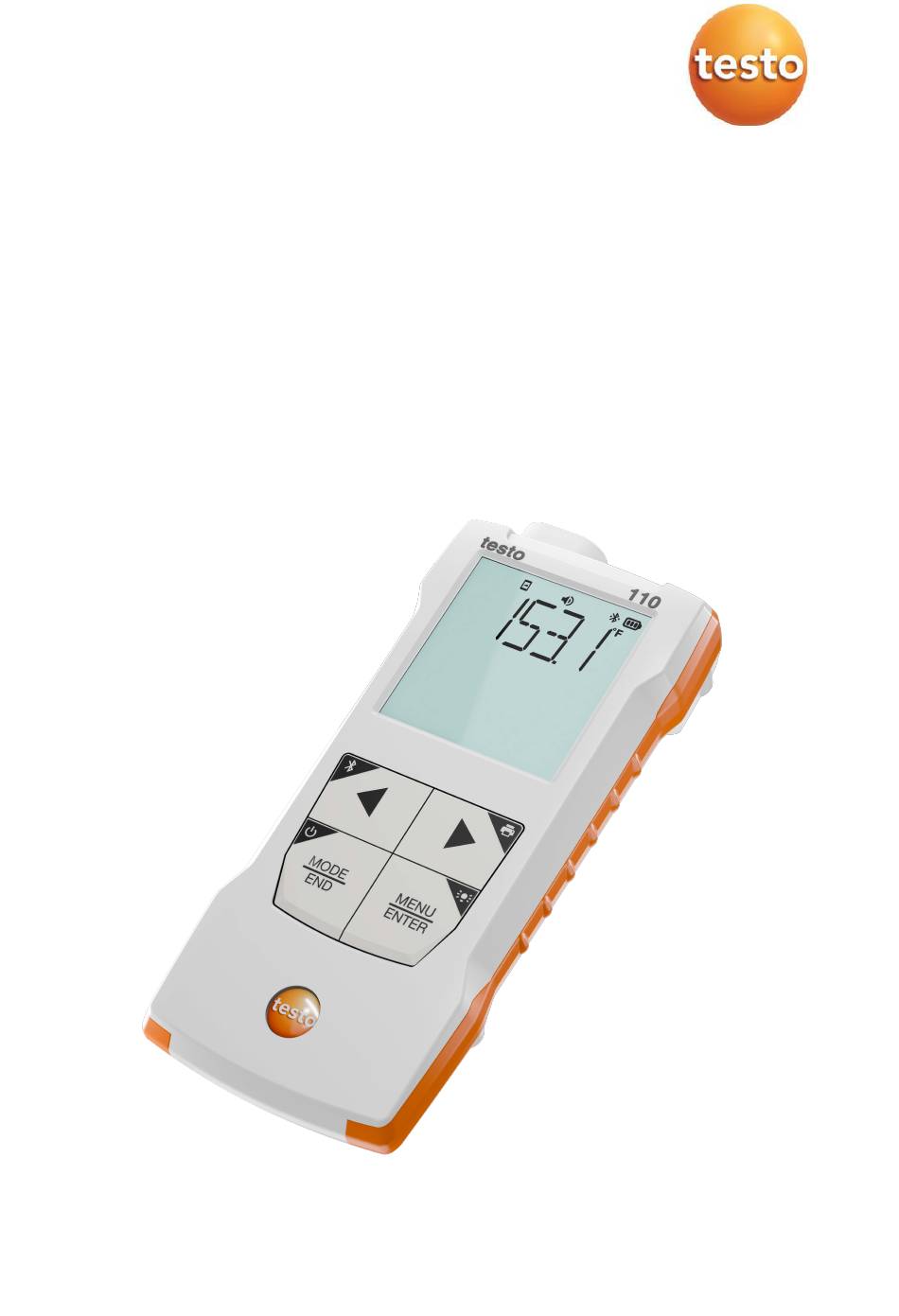

TESTO 110 Instruction Manual
Temperature meter for ntc and pt100
Hide thumbs
Also See for 110:
- User manual ,
- Instruction manual (60 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for TESTO 110
Summary of Contents for TESTO 110
- Page 1 110 – Temperature meter for NTC and Pt100 0563 0111 0563 0112 Instruction manual...
-
Page 3: Table Of Contents
® Establishing a Bluetooth connection ........... 10 ® 6.3.1 Establishing a Bluetooth connection to the testo Smart App ....11 Using the product ................12 Controls on the measuring instrument ..........12 7.1.1 Implementing settings ................13 7.1.2 Opening configuration mode ..............14 7.1.3... - Page 4 8.12 Performing a firmware update.............. 32 Maintaining the product ..............33 Inserting / changing batteries ............... 33 Cleaning the instrument ............... 33 Technical data for testo 110.............. 34 Tips and assistance ................35 11.1 Questions and answers ............... 35 11.2 Accessories and spare parts..............
-
Page 5: About This Document
Only perform maintenance and repair work on this instrument that is described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. Batteries • Improper use of batteries may cause the batteries to be destroyed, or lead to injury due to current surges, fire or escaping chemicals. -
Page 6: Disposal
• At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. • WEEE Reg. No. DE 75334352... -
Page 7: Product-Specific Information
Only open the measuring instrument if this is expressly described in the documentation for the purposes of maintenance or servicing. 4 Intended use The testo 110 is a compact measuring instrument for measuring temperatures. It is intended for indoor use only. The product is designed for the following tasks/areas: •... -
Page 8: Product Description

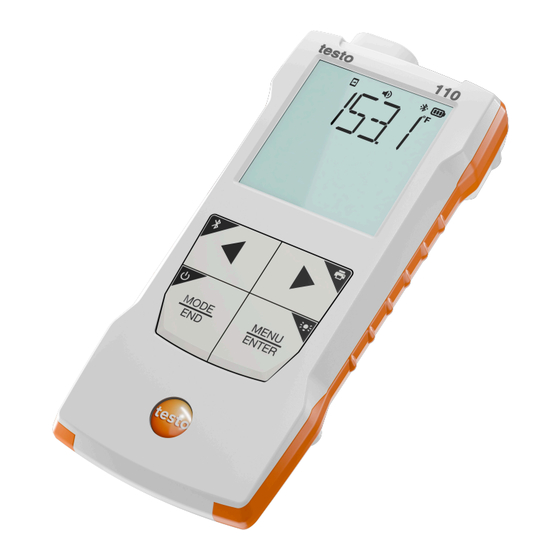

5 Product description 5 Product description Instrument overview 1 Control keys 2 Display Socket for NTC or Pt100 type 4 Speaker for alarm sound probe with TUC connector 5 Battery compartment Explanation of icons Refer to instruction manual... -
Page 9: Topsafe
5 Product description TopSafe The measuring instrument is supplied with the TopSafe protective case as standard to protect it from moisture (IP65 with probe connected), dirt and impacts. Pressable areas over the control Transparent cover over the keys instrument display 3 Removable cover 4 Fold-out stand-up bracket Explanation of icons... -
Page 10: First Steps
6 First steps 6 First steps Inserting / changing batteries WARNUNG Serious risk of injury to the user and/or destruction of the instrument. There is a risk of explosion if the batteries are replaced with ones that are the wrong type. - Only use non-rechargeable alkaline batteries. -
Page 11: Getting To Know The Product
6 First steps Getting to know the product 6.2.1 Inserting the measuring instrument in TopSafe The measuring instrument should be placed in the TopSafe protective case to protect it from moisture, dirt and impacts. Remove the cover from the top of the TopSafe. Insert the measuring instrument into the TopSafe from above. -
Page 12: Switching The Display Illumination On And Off
Press and hold down (2 sec) the MENU/ENTER key. The display illumination is switched on or off. ® Establishing a Bluetooth connection The instrument can be connected to the testo Smart App via ® Bluetooth connection The measuring instrument is ✓ switched on. ... -
Page 13: Establishing A Bluetooth Connection To The Testo Smart App
® To establish a connection via Bluetooth , you need a tablet or smartphone with the Testo Smart App already installed on it. You can get the App for iOS instruments in the App Store or for Android instruments in the Play Store. -
Page 14: Using The Product
7 Using the product 7 Using the product Controls on the measuring instrument The instrument is switched on. ✓ The testo Smart App is installed on the smartphone and connected ✓ ® to the instrument via Bluetooth Settings and controls are implemented either on the instrument or via the app. -
Page 15: Implementing Settings
7 Using the product 7.1.1 Implementing settings Selecting, opening and setting functions Press the relevant key to select the functions Secondary assignment (long press) All keys with a grey corner have a secondary assignment, which can be selected by pressing and holding the key for a longer time (2 sec). Adjustable functions Ensure correct settings: all settings are transferred immediately. -
Page 16: Opening Configuration Mode
7 Using the product Function Setting options/comments MENU/ENTER For CP/CCP measurements: Send reading to app Open configuration mode Start continuous measurement / record multi-point readings (Operation also possible directly on measuring instrument if it is connected to the app) In configuration mode: Confirm input Print (long press) Output readings via external printer... -
Page 17: Setting The Unit
MENU/ENTER: NO: Do not carry out reset. YES: Carry out reset. All concealed menus that were hidden via the testo Smart App are displayed again. The instrument returns to measurement view. -
Page 18: Carrying Out A Reset Of The Measuring Instrument
7 Using the product 7.1.7 Carrying out a reset of the measuring instrument Configuration mode is open, “RESET” is displayed. ✓ ◄ ► Press to select the required option and confirm with MENU/ENTER: NO: Do not carry out reset. YES: Carry out reset. The instrument is reset to the factory settings. -
Page 19: Resetting Maximum/Minimum Values
7 Using the product 7.2.2 Resetting maximum/minimum values The maximum/minimum values of all channels can be reset to the current reading. ◄ Press several times until Max or Min is shown. ◄ Hold down (approx. 2 s). All maximum and minimum values are reset to the current reading. 7.2.3 Carrying out multi-point mean calculation Press MODE/END. -
Page 20: Carrying Out Continuous Mean Calculation
7 Using the product 7.2.4 Carrying out continuous mean calculation Press MODE/END twice. flashes. The elapsed measuring time (mm:ss) is displayed in the upper line, while the current reading is displayed in the lower line. Start measurement: Press MENU/ENTER. To interrupt/continue measurement: Press MENU/ENTER... -
Page 21: Controls Via Testo Smart App
8 Controls via testo Smart App 8 Controls via testo Smart App With the testo Smart App, you can extend the range of functions of your testo 110 and save readings digitally, create reports and make settings. There is a separate measurement program in the testo Smart App for digital CP/CCP control point measurements and documentation. -
Page 22: Overview Of Temperature Control Points (Cp/Ccp) Configuration Page
8 Controls via testo Smart App Overview of temperature control points (CP/CCP) configuration page Possibility to define certain 1 Choice of applications measurement programs as favourites Program for temperature Possibility to define the actual view control points as default site... -
Page 23: Overview Of Operating Controls
8 Controls via testo Smart App Overview of operating controls Switch between the views: - Live = actual contol point 1 Choice of applications - Overview = Overview of selected control points Measurement results (Measured value and alarm interpretation are... -
Page 24: App Options
Select Instrument information. The version number of the app and the ID are displayed. 8.4.3 Displaying the tutorial The tutorial guides you through the first steps in operating the testo Smart App. Click on Select Help and Information. ... -
Page 25: Application Menus
8 Controls via testo Smart App In addition, separate tutorials for CP/CCP measurements are available under Application areas | Food safety. Application menus 8.5.1 Selecting an application menu Click on A selection of menus for various applications is displayed. -
Page 26: Making Measuring Instrument Settings
8 Controls via testo Smart App Making measuring instrument settings The measuring instrument is connected to the testo Smart App. ✓ Click on The main menu opens. Click on Measurement instruments. Measurement instruments menu opens. Click on the required measuring instrument. -
Page 27: Configuring The Measuring Instrument Menu
“SYNC DONE”. 8.6.1 Configuring the measuring instrument menu The testo Smart App can be used to set which settings menus should be available or hidden on the measuring instrument itself. Settings tab in the Sensors menu is open. -
Page 28: Setting Auto Off
8 Controls via testo Smart App The menus belonging to the deactivated entries will no longer be displayed in the measuring instrument menu after the next synchronization. These settings can be reset via the menu reset “M.RES” and then all settings menus will be displayed on the measuring instrument again. -
Page 29: Setting The Surface Increment
8 Controls via testo Smart App Select Alarm configuration. The menu with the overview of alarms that can be activated opens. Click on the checkbox to activate a specific alarm. Click on EDIT. The input window for activating and defining upper and lower warning and alarm values is displayed. -
Page 30: Display Of The Readings
8 Controls via testo Smart App Display of the readings The available readings can be displayed in different views. For carrying out measurements of temperature control points in the food sector, we recommend the Temperature Control Points (CP/CCP) measurement menu. -
Page 31: Configuring Control Points
8 Controls via testo Smart App Configuring control points Temperature Control Points (CP/CCP) measurement program makes it possible to create multiple measuring points and then measure them one after the other in a measurement round. Click in the testo Smart App. -
Page 32: Measuring Control Points
8 Controls via testo Smart App 8.10 Measuring control points Temperature Control Points (CP/CCP) measurement program allows you to measure multiple selected measuring points one after the other in a measurement round and to add a comment and/or a signature to the measurement results. -
Page 33: Exporting Readings
8 Controls via testo Smart App If necessary, enter a signature beforehand. Measurement finalized menu is displayed. The readings are now available for reporting. 8.11 Exporting readings Determined measurement results can be displayed and exported as reports in PDF format for one or more control points and freely definable time periods. -
Page 34: Performing A Firmware Update
After the update, the measuring instrument will reboot. The firmware can be checked in the instrument menu or via the app. It is recommended to restart the testo Smart App after performing the instrument update. -
Page 35: Maintaining The Product
9 Maintaining the product 9 Maintaining the product Inserting / changing batteries WARNUNG Serious risk of injury to the user and/or destruction of the instrument. There is a risk of explosion if the batteries are replaced with ones that are the wrong type. - Only use non-rechargeable alkaline batteries. -
Page 36: Technical Data For Testo 110
10 Technical data for testo 110 10 Technical data for testo 110 Feature Value Measurement parameters °C, °F Accuracy NTC: ±0.2 °C (-20 to +80 °C) ±0.3 °C (other ranges) Pt100: according to digital probe Solution NTC: 0,1 °C Pt100: according to digital probe... -
Page 37: Tips And Assistance
Measuring range: see table above According to EN 13485, the measuring instrument should be checked and calibrated regularly under the terms of EN 13486 (recommended frequency: yearly). Contact us for more information: www.testo.com 11 Tips and assistance 11.1 Questions and answers Question... -
Page 38: Accessories And Spare Parts
Bluetooth connection. If we have not been able to answer your question: please contact your local dealer or Testo Customer Service. See the back of this document or the www.testo.com/service-contact web page for contact details. 11.2 Accessories and spare parts Description Order no. -
Page 39: Compatible Ntc Probe
11 Tips and assistance Description Order no. NTC frozen food probe with TUC connector - for screw- 0615 3211 in use Waterproof stainless steel food probe (IP67) with TUC 0615 3311 connector 11.2.2 Compatible NTC probe Description Order no. Waterproof immersion/penetration probe – with NTC 0615 1212 temperature sensor (analog) Robust air probe –... - Page 40 Testo SE & Co. KGaA Celsiusstr. 2 79822 Titisee-Neustadt Germany Phone: +49 (0)7653 681-0 E-mail: info@testo.de www.testo.com 0974 9110 en 01 – 08.2024...
