Optidrive Plus 3
AC Supply Voltage
(50 / 60Hz)
L1 L2 L3
Eart L N
Fuses or MCB
36
GV
Optidrive Plus 3 User Guide
GV

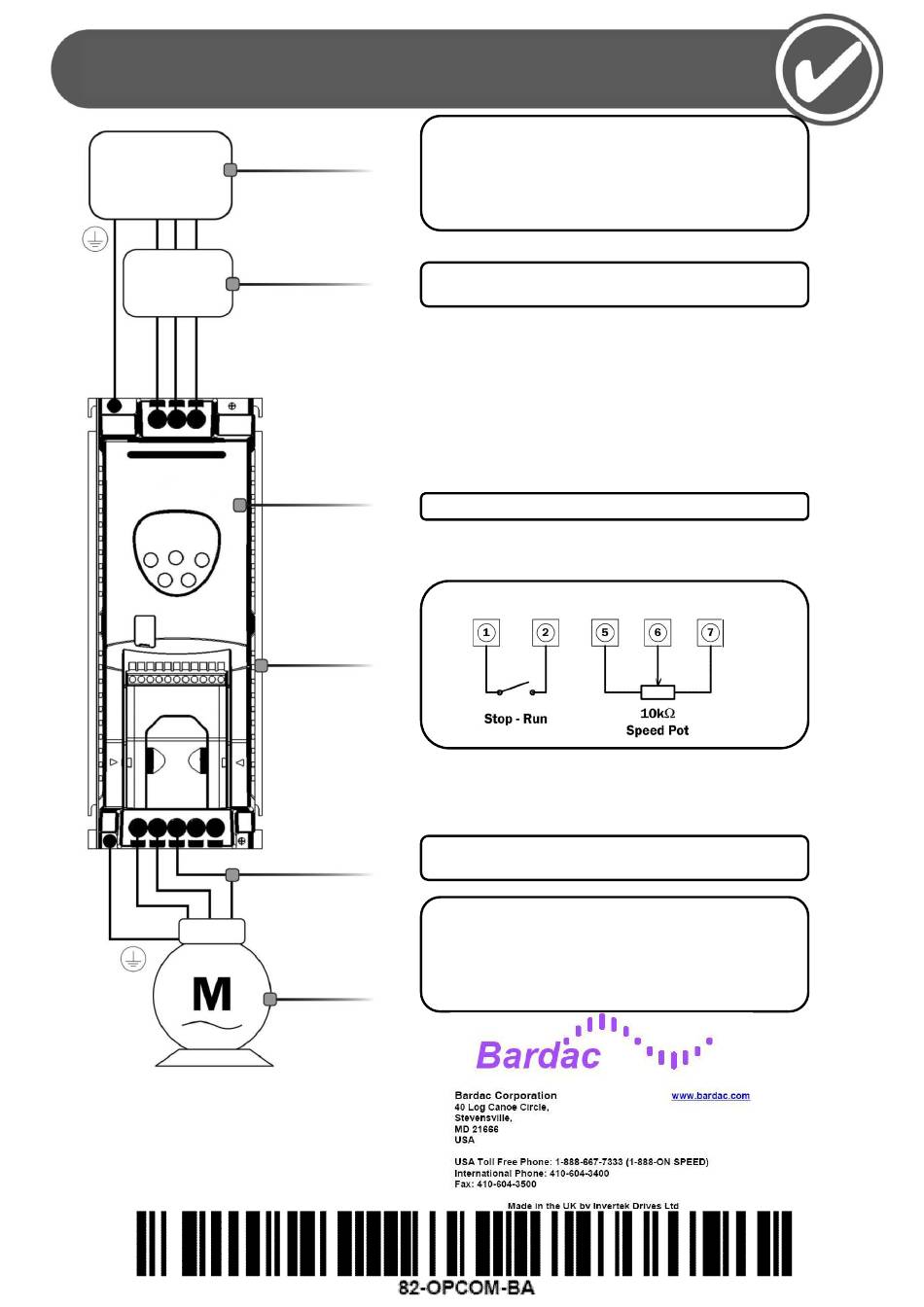

Easy Start-Up Guide
Supply Voltage
- 200 – 240 Volt + / - 10%, 1 or 3 Phase
- 380 – 480 Volts + / - 10%, 1 or 3 Phase
- 480 – 525 Volts + / - 10%, 3 Phase
- 500 – 600 Volts + / - 10%
See Page 5
Fuses or MCB & Cable Sizes
- Check drive rating information on page 27
Keypad operation – see page 14
Control Terminal Wiring – based on default settings:-
Motor Cable Sizes
- Check drive rating information on page 27
Motor Connections
- Check for Star or Delta (see page 10)
Motor Nameplate Details
- Enter the motor rated voltage(V) in P1-07
- Enter the motor rated current (A) in P1-08
- Enter the motor rated frequency (Hz) in P1-09
www.invertek.co.uk
