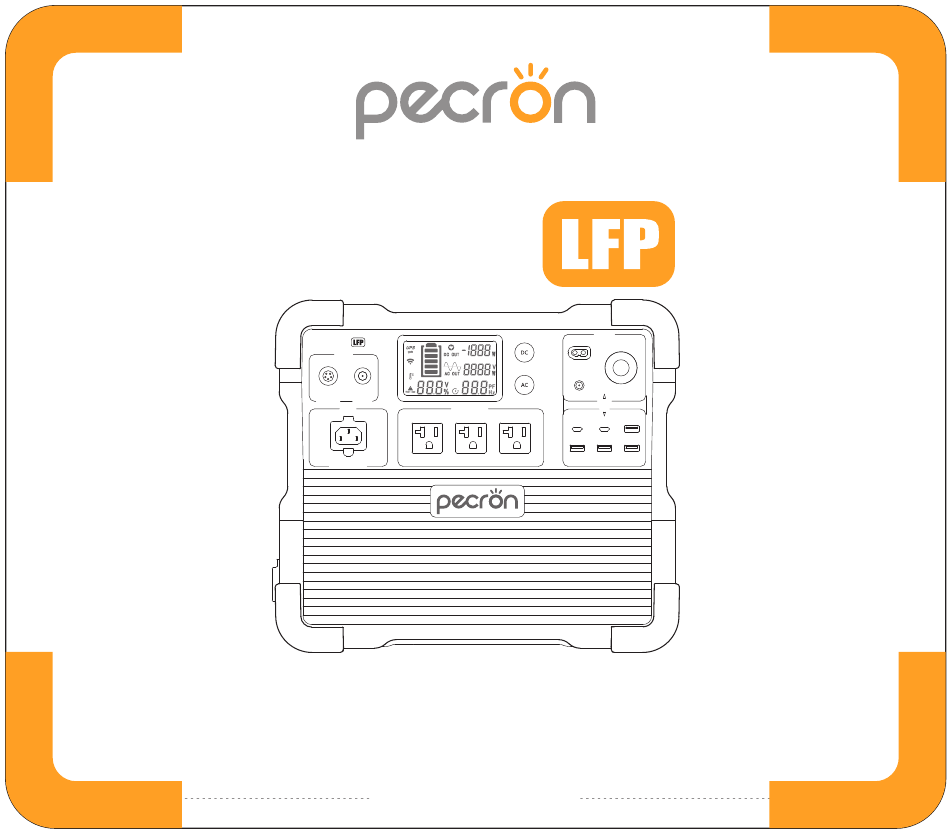

E2400
E2400
DC INPUT
32V~95V
12V~18V
700W(MAX)
100W(MAX)
AC INPUT
100V~120V-15A(MAX)
USER MANUAL
Please read the user manual thoroughly before using
support@pecron.com
DC OUTPUT
12V-30A(MAX)
12V-5A
12V-10A
12V-10A
AC OUTPUT-2400W
USB
100W
18W
18W
18W
18W
18W

Advertisement

loading
Need help?

Need help?

Do you have a question about the E2400 LFP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pecron E2400 LFP

  • Page 1 E2400 DC OUTPUT E2400 DC INPUT 12V-30A(MAX) 12V-5A 12V-10A 32V~95V 12V~18V 700W(MAX) 100W(MAX) 12V-10A AC INPUT AC OUTPUT-2400W 100W 100V~120V-15A(MAX) USER MANUAL Please read the user manual thoroughly before using support@pecron.com...
  • Page 2: Function Introduction

    DC 32V~95V Charging Port DC 12V~18V Charging Port ④ ⑤ ⑥ AC 100V~120V Input AC 100V~120V Output DC 12V/USB Switch ⑦ ⑧ ⑨ AC 100V~120V Switch DC12V XT60 Output DC12V Auxiliary Output ⑩ ⑪ ⑫ DC12V(5525)Output USB-A/USB-C Ports Battery Expansion Port support@pecron.com...
  • Page 3: Specifications

    (5V,9V,12V, 18W Max)*4 (5V,9V,12V, 18W Max)*1 USB-C *2 (5V,9V,12V,20V, 100W Max)*1 360W Max XT60-F Output *1 DC 12V-30A Cigar Port *1 DC 12V-10A DC 5525 Output *1 DC 12V-5A AC OUTPUT Pure sine wave 100V~120V BS-U20 *3 Rated 2400W Max support@pecron.com...
  • Page 4 GX16MF *1 32V~95V 700W Max 15A Max 5521 *1 12V~18V 100W Max 7A Max EXTRA BATTERY PORT MJ32 *1 Cascade with max 2 pieces of EP3000-48V HOW TO USE THE E2400 LFP DC OUTPUT E2400 DC INPUT 12V-30A(MAX) 12V-5A 12V-10A...
  • Page 5 Temperature Alarm Icon AC Overload Alarm Icon The operating temperature range of E2400 LFP is -20~45°C. If it E2400 LFP can power most devices with power consumption outputs high power in a hot conditions for a long time, the high less than 2400 watts.
  • Page 6: Packing List

    UPS function only support protection for loads under 1800W(120V), we recommend that you only connect one device at a time to avoid overload and thus result in protection failure. PECRON is not responsible for any devices damage or loss of data resulting from failing to follow the instructions. DC OUTPUT...
  • Page 7 HOW TO ADJUST THE AC OUTPUT FREQUENCY VOLTAGE AND NO-POWER AUTOMATIC SHUTDOWN TIME OF E2400 LFP. 1:After powering on, long press the AC and DC switch at the same time. The battery symbol will flash and then please long press DC to enter into setting.
  • Page 8 APP FUNCTION You can connect to this product through the PECRON APP, viewing product information, controlling the device and making personalized settings. During connection, please long press and hold the DC+AC button together to enter the pairing mode.
  • Page 9 95V, otherwise, it will damage the unit! Do not wire more than two 36V solar panels in series, or more than four 18V solar panels in series. (18V/36V stands for Vmp, the operating voltage, of the solar panel) 3. If you have any questions, feel free to contact us:support@pecron.com DC OUTPUT E2400...
  • Page 10 MC4 Solar Charging Cable*1 ※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be less than 95V, and the VMP should be greater than 32V. Use two solar panels in series to charge the E2400 LFP MC4 Solar Charging Cable*1 ※...
  • Page 11 (NOTE:This parallel charging cable sold separately) ※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be less than 95V, and the VMP should be greater than 32V. support@pecron.com...
  • Page 12 DO NOT WIRE THREE SOLAR PANELS IN SERIES! ※ PV(GX16MF-5) Port Only work within 32V~95V Open Circuit voltage,exceeding 95V will damage the machine. support@pecron.com...
  • Page 13 FAQS Q1: What kind of battery is used in E2400 LFP? How long it can last? A: E2400 LFP utilizes high quality UL certified automotive LiFePO4 battery, it can retain 80% of its original capacity at 3500 complete charge cycles.
  • Page 14 PECRON's current product literature. In compliance with laws and regulations, PECRON reserves all rights for final explanation, and to change these terms and conditions at any time without prior notice. In the event that any revisions are made, the revised terms and conditions shall be posted on our website immediately, please visit our website to inform yourself of any changes.
  • Page 15 3、The battery will not be able to start after being over-discharged, please dispose of it according to the principle of disposal. EXCLUSIONS PECRON’ s warranty does not apply to: Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in PECRON’ s current product literature. CUSTOMER SUPPORT:support@pecron.com WEBSITE:www.pecron.com support@pecron.com...
  • Page 16 POWER IT POSSIBLE www.pecron.com support@pecron.com...
