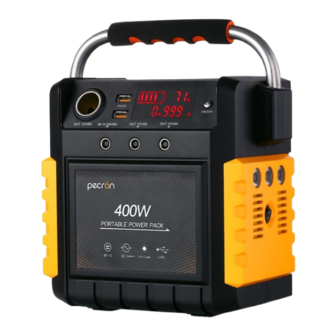

- Page 1 ShenZhen Pecron Technology CO.,LTD. Outdoor Portable Power Station Specification Model：S400 Thanks for choose our outdoor portable power station S400 Please read the manual carefully before you use! Shenzhen Pecron Technology Co.,Ltd Http://www.pecron.com...
-
Page 2: Table Of Contents
Content 1. Introduction：..............................- 1 - 2. Panel Function Description........................... - 2 - 3. Product Specification............................- 4 - 4. Environment Condition..........................- 5 - 5.Electrical Specifications:..........................- 5 - 5.1-5.4 Specifications..........................- 5 - 5.5-5.7 Protection Instructions........................- 6 - 6. -
Page 3: Introduction
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 1. Introduction： pecron S400 is a functional outdoor portable power station,it has safe Lithium-ion battery and invertor conversion technology,with light weight,high capacity,high power function,to provide portable power solutions,its battery capacity is 10.8V35.7Ah,its main function is as below: ♦... -
Page 4: Panel Function Description
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 2. Panel Function Description ① DC Cigar Port:Provide power supply to 12V appliance,output voltage is 9~12.6V,Continuous output current is 8 amps, maximum output current is 15A ② USB 5V Port:supply power with 5V and max current of 2A. - Page 5 Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE ⑦ AC Socket:After the AC switch turn on,the AC output will work,output voltage is 230V or 110V ⑧ AC Switch:Turn on the AC switch,the AC output works,turn of AC switch,AC output stop working.
-
Page 6: Product Specification
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 3. Product Specification Description S400 Output power 400W Peak power 800W AC pure sine wave 230V/50Hz or AC110V60Hz Output voltage DC 9~12.6V8A（MAX 15A） USB 5V2A Output Pure sine wave waveform Battery type 18650-14P3S( 3.6V 2.55Ah) Battery 385.56Wh（10.8V35.7Ah）... -
Page 7: Environment Condition
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 4. Environment Condition Specification Unit Remark Test Project Working Temperature 0~45 ℃ Storage Temperature -20~60 ℃ Humidity 45% ~ 85% Cooling type Air-cooled Cooling≥45℃ Altitude 3000 Mean time between failures ≥5000 Electrical Specifications: 5.1-5.4... -
Page 8: 5.7 Protection Instructions
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 5.5-5.7 Protection Instructions NO . Test Project Specification Unit Remark Inverter 5.5.1 Over Temperature Inverter ℃ No AC output，wait until cooling≥65℃ the temperature down 5.5.2 Over Load ＞450 Lock,no output,until disconnect and restart 5.5.3... -
Page 9: Operating Instructions And Precautions
S400,or use 18V solar panel to charge it. During charging, the battery remaining display screen will on. When the power supply is fully charged, the display will off, and the S400 power supply is fully charged. When using solar panel to charge,S400 accept 13-30V solar panel to charge it,to make sure charging efficiency,please use 18V solar pane to charge it,solar panel power should be 100~250W,open circuit voltage lower than 30V. -
Page 10: How To Operate
Step 2:Check the load input voltage and frequency. Step 3:Check the load power,make sure it won’t over S400 rated power Step 4:Connect the appliance to the AC socket,turn on the AC switch Step 5:After use the power station,please turn off the AC switch to shut down the output. -
Page 11: How To Use Dc 12V And Usb
： Note ① Our S400 standard power adapter only use in our S400,please don’t use in other device and keep away from rain. ② When the portable power is left unused for a long time, the battery will run out. Please make sure to charge it every six months. -
Page 12: Product Function Test
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE Press the DC switch,the USB output is on,and the display screen is => on,press again to shut down. 7. Product Function Test 7.1 Test Condition： Project Test condition Check item High-altitude 1. Appearence Pressure≤=11.6Kpa，T =20±5℃... -
Page 13: Basic Function Test Display
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 7.2 Basic Function Test Display 7.2.1 7.2.2 Discharge test under load Charge test 7.2.3 12V 5525 output current test 7.2.4 USB port output current 7.2.5 12V cigar port output current test 7.2.6 LED test - 11 - Shenzhen Pecron Technology Co.,Ltd... -
Page 14: Misuse And Countermeasures
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE Misuse And Countermeasures Solution Error Root Press any switch,no LCD Charge up Interior battery no output display Over Temperature Disconnect the load No AC output after pressing Check the loading power and AC switch,LCD display is... -
Page 15: Package
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 9.Package NO . Package Content Quantity S400 Power Station Power Adapter Power Cord Car Charging Cable Solar Cable（Optional） User Manual And Warranty Card Net weight（kg)：6.2 Carton size（mm)：373*294*234 Quantity（pcs )：1PCS/CTN - 13 - Shenzhen Pecron Technology Co.,Ltd http;//www.pecron.com... -
Page 16: After Sales Service
POWER IT POSSIBLE 10.After Sales Service All pecron portable power station warranty time is 12 month since the sales date. During the warranty period, our company will be responsible for the defects on material and process, we will change the damaged parts after receiving them back or maintain the product for free once our technicians inspect that the breakdown occurs normally;But we...
