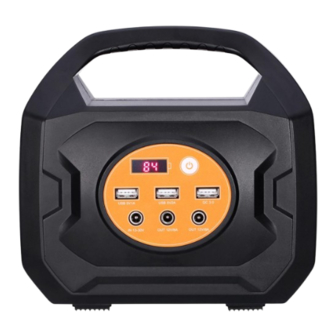

- Page 1 ShenZhen Pecron Technology CO.,LTD. Outdoor Portable Power Station Specification Model：S200 Thanks for choose our outdoor portable power station S200 Please read the manual carefully before you use! Shenzhen Pecron Technology Co.,Ltd Http://www.pecron.com...
-
Page 2: Table Of Contents
Content 1. Introduction： ............................1 2. Panel Function Description： ......................2 3. Product Specification： ........................4 4. Environmental Conditions： ......................4 5. Electrical Specifications： ......................... 5 5.1-5.4 Specifications ........................5 5.5-5.6 Protection Instructions ..................... 6 6. Operating Instructions And Precautions： ................7 6.1 How To Use AC .......................... -
Page 3: Introduction
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 1. Introduction pecron S200 is a functional outdoor portable power station,it has safe Lithium-ion battery and invertor conversion technology,with light weight,high capacity,high power function,to provide portable power solutions,its main function is as below: ♦... -
Page 4: Panel Function Description
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 2. Panel Function Description ①Battery display：Power display screen:The number shows current remain power,the single digit flashing when it is charging,when the remain power lower than 10%,the single digit and tens digit flashing at the same time. - Page 5 Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE ④USB DC ouput：When there is no load, it will automatically enter the sleep state to turn off the output, and automatically turn on when connected to the load.(A.USB 5V1A,B.USB 5V2A,C.USB QC3.0:12V1.5A 9V2A 5V2.1A) ⑤DC input：Support wide voltage 13V-30V4A(MAX) charging,support car charging,solar...
-
Page 6: Product Specification
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 3. Product Specification Introduction S200 Rated Power 200W Peak Power 400W 220V/50Hz or AC110V60Hz Output Voltage DC 9~12.6V8A（MAX 15A） 5V1A 5V2A QC3.0 Output Pure Sine Wave Waveform Battery Type 18650-7P3S( 3.6V 2.55Ah) Battery Capacity 192.78Wh（10.8V17.85Ah）... -
Page 7: Electrical Specifications
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 4. Environment Condition Test Project Specification Unit Remark Working Temperature 0 ~ 45 ℃ Storage Temperature -20 ~ 60 ℃ Humidity 45% ~ 85% Cooling type Air-cooled Cooling≥45℃ Altitude 3000 Mean time between failures ≥5000... -
Page 8: 5.6 Protection Instructions
S200,or use 18V 50W solar panel to charge it. During charging, the battery level is flashing. When the power supply is fully charged, the power indicator light is on, and the S200 power supply is fully charged. To make sure safety,please use our standard charger,when PECRON-S200 is full charge,please disconnect the charger. -
Page 9: How To Operate
S200 is with over load,short circuit,over temperature protection. -
Page 10: How To Charge
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE (Note:When you stop using the power station,please turn off the AC switch.If not,the S200 will be in a high-energy self-consumption mode, consuming the stored power of the power supply. ) 6.3 How To Charge S200 rated power is 200W,battery capacity is 10.8V/17.85AH,we can use the follow... -
Page 11: How To Use Dc 12V And Usb
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 6.4 How To Use DC 12V and USB => DC 12V,rated current 8A.overload current 15A，please make sure the connect can bear big current when you use big current,to prevent the connector temperature too high to damage the power station. -
Page 12: Product Function Test
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 7. Product Function Test 7.1 Test Condition Project Test condition Check item High-altitude 1. Appearence Pressure≤=11.6Kpa，T =20±5℃ test 2.Power performance No package,no electricity Temperature between 40±2℃ and 75±2℃ Temperature 1. Appearence Repeat the test 10 times test 2.Power performance... -
Page 13: Basic Function Test Display
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 7.2 Basic Function Test Display 7.2.1 Discharge test under load 7.2.2 Charge test 7.2.3 12V 5525 output current test 7.2.4 USB port output current test 7.2.5 LED test - 11 - Shenzhen Pecron Technology Co.,Ltd http;//www.pecron.com... -
Page 14: Misuse And Countermeasures
Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE 8. Misuse And Countermeasures Error Root Solution Press any switch,no display Interior battery protect Charge up and output Disconnect the load and start to work it after the Over temperature No AC output after pressing... -
Page 15: Package
Quantity（pcs )：1PCS/CTN 10. After Sales Service All pecron portable power station warranty time is 12 month since the sales date. During the warranty period, our company will be responsible for the defects on material and process, we will change the damaged parts after receiving them back or maintain the product for free once our technicians inspect that the breakdown occurs normally;But we... - Page 16 Shenzhen Pecron Technology Co.,Ltd POWER IT POSSIBLE •Breakdown or damage caused by accident, man-made and environment( misoperation, crash, unsuitable voltage, damp and etc.) •Breakdown or damage caused by natural hazard beyond control( earthquake, fire, tsunami and etc.) •Maintenance is not including package and products accessories;...
