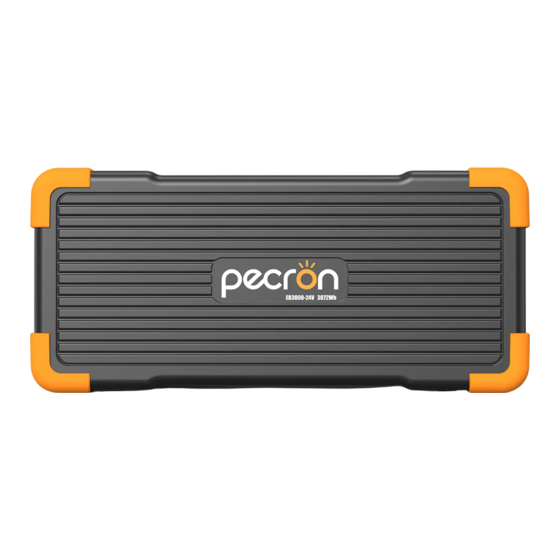

- Page 1 EB3000-24V EB3000-24V 3072Wh USER MANUAL Please read the user manual thoroughly before using support@pecron.com...
-
Page 2: Function Introduction
⑤ ⑨ ⑥ ⑦ ① ④ ⑦ LED Capacity Indicator Power Display Switch USB-A Ports ② ⑤ ⑧ Indicator Under Cascade Status DC12V XT60 Output DC Button ③ ⑥ ⑨ Battery Expansion Port USB-C Ports DC 12V~95V Charging Port support@pecron.com... -
Page 3: Specifications
SPECIFICATIONS EB3000-24V 3072Wh Capacity Protections Temperature Dimension Battery Type Net Weight Over-Voltage, L17.3*W12.2*H7.8 in Around 57lb 3072Wh LiFePO4 Battery 0℃~45℃/32°F~113°F Overheat, L441*W312*H200 (25.6V120Ah) Retain 80%+ (Charging) Around 26kg Overload, Original Capacity -20℃~45℃/-4°F~113°F Short-Circuit, At 3500 Cycles (Discharging) Self-Recovery OUTPUT SPECS... -
Page 4: Packing List
HOW TO USE THE EB3000-24V Light press to show battery capacity Long press to turn on/off DC (USB/XT60 12V) Note: Operating temperature range of EB3000-24V is -20~45℃. If the operating temperature is not within this range, it will fail to work. support@pecron.com... - Page 5 HOW TO CONNECT EB3000-24V WITH E2000 LFP IN CASCADE 1：First confirm battery volume for both EB3000-24V and E2000 LFP and ensure their volume difference is no more than 10%. If the difference is too large, it wil take longer time for cascading successfully.
- Page 6 4: Long press AC to enter the setting of item 003. The default value is OFF, which means the automatic shutdown time of the machine without any load. Shortly press DC can increase the time or shortly press AC to decrease the time. support@pecron.com...
- Page 7 DC and AC buttons at the same time, the battery frame will flash. Then quickly double-click AC button to enter the setting. 2: Setting-001 can be seen at this time, the default value is 10 (this is for voltage calibration, do not modify it) support@pecron.com...
- Page 8 6: Long press AC to enter 005, the default value is L3, this means screen brightness. Shortly press DC can increase the brightness or shortly press AC to decrease the brightness. support@pecron.com...
- Page 9 In order to meet your needs, please replace with a high-current fuse. 2：After cascading of the power station and the battery pack is completed and the capacity of the power station is adjusted, please fully charge it to complete the battery calibration. support@pecron.com...
- Page 10 200W 19~20 Hours 10~11 Hours MC4 Solar Charging Cable Note: The above data comes from Pecron＇s laboratory. Actual charging time depends on the weather conditions. USING SOLAR PANELS TO CHARGE THE EB3000-24V GX16MF-5 Charging Port: PV(operating voltage) range 12V~95V, 400W maximum; VOC(open circuit voltage) of solar panel/array must be less than 95V, otherwise, it will damage the unit! Do not wire more than two 36V(AKA 24V) solar panels in series.(18V~36V stands for Vmp, the operating voltage, of the solar panel)
- Page 11 USING SOLAR PANELS TO CHARGE THE EB3000-24V Using the pecron 100W /18V*1 （100W） to charge the EB3000-24V pecron 100W pecron 100W*1 Solar charge cable with 5521 connector*1 ※ 18V is the operating voltage of the solar panels Using the pecron 200W /36V*1 （200W） to charge the EB3000-24V...
- Page 12 Q7：How many EB3000-24V battery packs can be cascaded to E2000 LFP? A：Max 2pcs of EB3000-24V can be cascaded to E2000 LFP. With too many battery packs, the internal resistance will become low and the current will become very high. As a result, the fuse of the E2000 LFP will be blown and the battery packs will be damaged.
- Page 13 The user shall be responsible for his own actions and all consequences arising from failure to use the device in accordance with the “User Manual”, or as authorized in Pecron's current product literature.In compliance with laws and regulations, Pecron reserves all rights for final explanation, and to change these terms and conditions at any time without prior notice.
- Page 14 2、If the battery cannot be completely discharged due to the failure of the product itself, please do not dispose of the battery directly in the battery recycling box, and contact a professional battery recycling company for further disposal. 3、The battery will not be able to start after being over-discharged, please dispose of it according to the principle of disposal. support@pecron.com...
- Page 15 EXCLUSIONS Pecron’ s warranty does not apply to： Misused, abused, modified,damaged by accident, or used for anything other than normal consumer use as authorized in Pecron’ s current product literature. CUSTOMER SUPPORT：support@pecron.com WEBSITE：www.pecron.com PECRON.LLC support@pecron.com...
- Page 16 POWER IT POSSIBLE www.pecron.com support@pecron.com...
