Section 7 - Advanced Setup

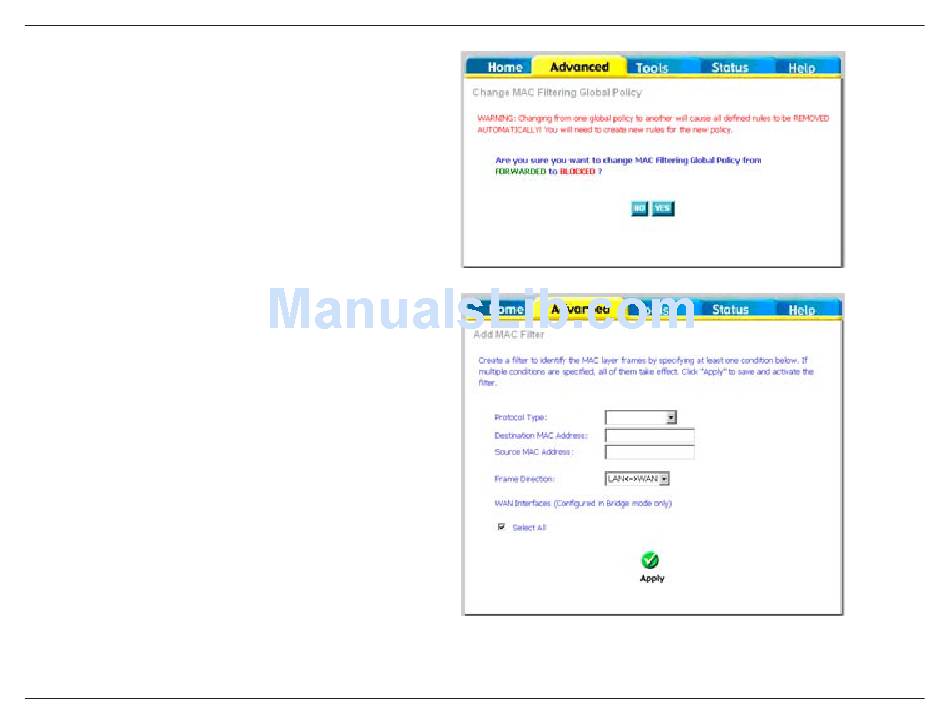

If you click Change Policy, a confirmation dialog

allows you to verify your change. Select Yes to

continue, or No to cancel.

If you want to add an entry to the MAC filtering table,

Select Add from the MAC Filtering Setup screen. The

Add MAC Filter screen should then appear. Select a

Protocol Type, enter the Destination and Source MAC

address, the necessary Frame Direction, and WAN

interface (bridge mode only). Click Apply to save.

After you save the settings, a screen showing the settings will appear. On this screen you will be able to view and

delete MAC filtering rules.
