D-Link DSL-2540B Quick Install Manual

Quick Install Guide

ADSL2+ 4 Port Router
Thank you for purchasing the ADSL2+ 4-Port Router. Follow the easy steps in this guide
to properly set up your Router. Please verify that all the package contents below are
available.

Package Contents

ADSL2+ 4-Port Router
12VDC, 1A DC CEC-compliant switching power adapter
RJ-11 Telephone cable
RJ-45 Ethernet cable
Installation CD-ROM
If any of the above items are missing, please contact your reseller.
System Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements
• Internet Explorer® 6.0 and higher
• Mozilla Firefox 3.0 and higher
Note: For Internet access, a subscription with a DSL Internet Service Provider is required.
DSL-2540B
Start Here:
Windows users can use the Quick Setup Wizard (from the CD) to configure the
router. If you do not want to use the wizard, lost your CD, or are running Mac or Linux
operating systems, you will need to use the manual setup procedure.
Note: For additional Important Safety Instructions, please see the user manual.
Quick Setup Wizard:
Insert the Installation CD into your drive on a computer and click Install to begin the
Quick Setup Wizard. Follow the onscreen instructions to install and configure your
device.
If you have any problems with the Quick Setup Wizard, please refer to the Manual
Setup.
Manual Setup:
If you are using Mac or Linux, or are unable to use the wizard, use the manual setup
outlined below and refer to the user manual on the CD for more information. Please
insert the Installation CD into your drive on a computer and browse the Docs folder
to open the file manual.pdf.
Step 1
Plug the power adapter into the device's power jack, then plug the other end into
an electrical outlet. Turn the device on and verify if the Power LED is lit on the front
of the device.
Step 2
Plug one end of the included Ethernet cable in to one of the LAN ports (numbered
1 to 4) on the back of the device. Plug the other end of the Ethernet cable into your
computer's Ethernet port. Verify if the corresponding LAN LED is lit on the front of
the device.
Step 3
Connect the supplied telephone cable to the DSL port of your device. Then, plug the
other end of the telephone cable into a telephone jack. Verify the DSL LED is lit. Your
setup should be similar to the Installation Diagram on the next page.
Step 4
Open a web browser, enter http://192.168.1.1 and then press Enter. When the
login window appears, set the both the user name and password to admin. Click
Log In to continue the setup. Please refer to the Quick Setup Section in the user
manual for more detailed installation information and advanced features.

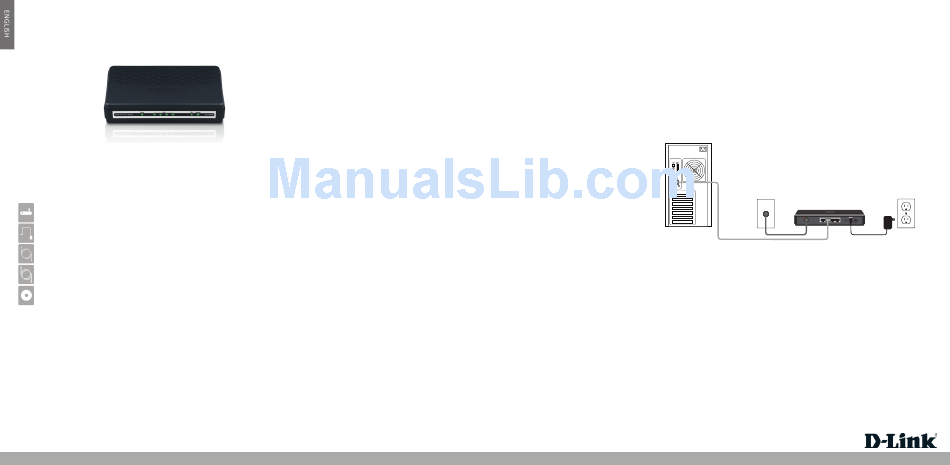

Installation Diagram:
Desktop Computer
DSL-2540B Router
DSL 1 2
Technical Support
Having trouble installing your new product? D-Link's website contains the latest
user documentation and software updates for D-Link products. U.S. and Canadian
customers can contact D-Link Technical Support through our website or by phone.
United States Canada
Telephone: (877) 453-5465 Telephone:
Internet: http://support.dlink.com Internet: http://support.dlink.ca
DSL 1 2
