Section 4 - Troubleshooting
The system log displays chronological event log data. The event log can be read from local host or sent to a System Log server. The available event
severity levels are: Emergency, Alert, Critical, Error, Warning, Notice, Informational and Debugging.

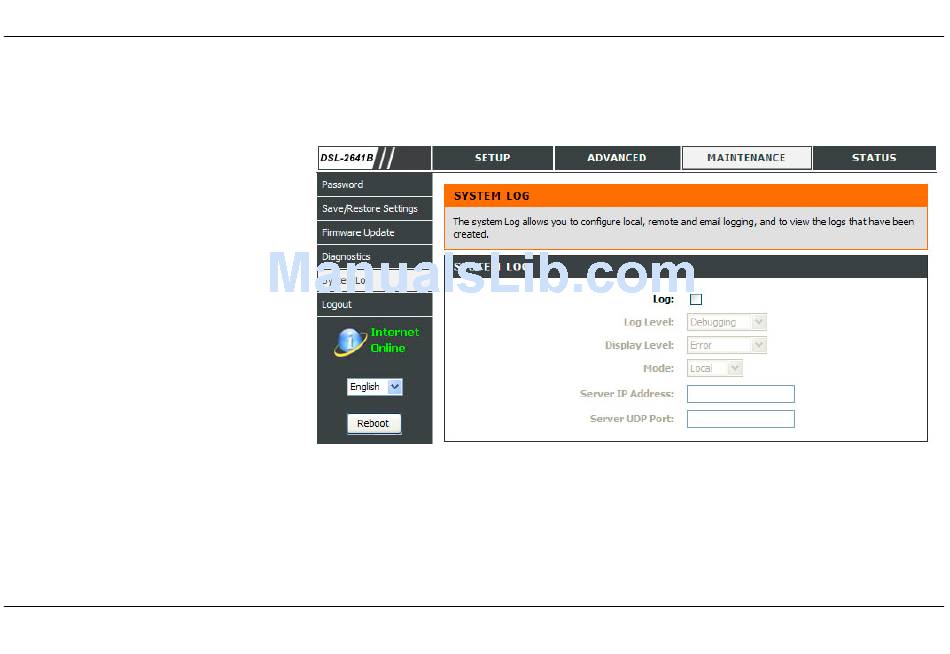

To access the SYSTEM LOG setting window, click on the System Log button under the MAINTENANCE tab.

SYSTEM LOG

Click on the Log checkbox and select
Log/Display Level from the drop-down menu.
Select display mode from the Mode drop-down
menu, enter the Server IP Address and
Server UDP Port number if Both/Remote
Mode is selected.
Log Level: All events above or equal to
the selected level will be
logged.
Display All logged events above or
Level: equal to the selected level will
be displayed.
Mode: Display mode of system log.
Local: Display on local host
only Remote: Send log file to
remote system log server only
Server IP IP address of the remote
Address: system log server
Server UDP UDP port number of the
Port: remote system log server
D-Link DSL-2641B User Manual
SYSTEM LOG
