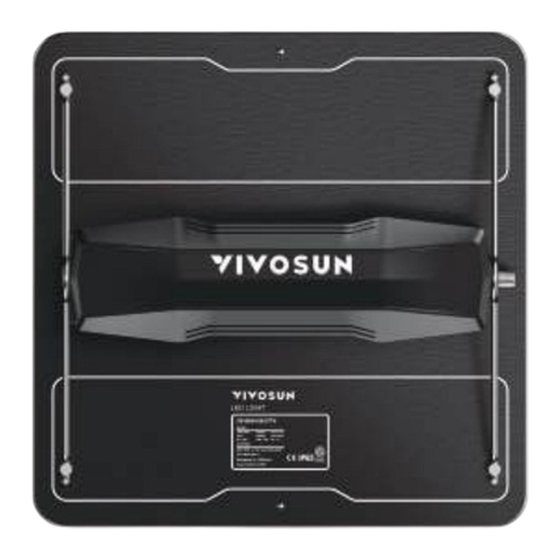

- Page 1 VS LED Light USER MANUAL...
- Page 2 At Vivosun, quality craftsmanship and innovation are at the core of every product we create. Should you require further support or wish to share any suggestions, please don't hesitate to contact us.
- Page 3 PRODUCTS INCLUDED IN THIS MANUAL: Product Model VS1000 LED 100W VS1000 LED-100NJ VS1000X2 LED 100W VS1000X2 LED-100X2NJ VS1500 LED 150W VS1500 LED-150 VS2000 LED 200W VS2000 LED-200J VS3000 LED 300W VS3000 LED-300 VS4000 LED 400W VS4000 LED-400J VS1000E LED 100W VS1000E VS1000E VS1000EX2 LED 100W...
-
Page 4: Table Of Contents
CONTENTS Safety Information Product Contents Key Features Specifications Application Installation Warranty Information... -
Page 5: Safety Information
SAFETY INFORMATION Please read the following information carefully before using. Failure to observe these safety instructions may result in serious injury and will release VIVOSUN of all liability and void all product warranties. Handling: Set up the light in an operating environment that allows for adequate air circulation. -
Page 6: Product Contents
PRODUCT CONTENTS VS1000/VS1500/VS2000/VS3000/VS4000/VS1000X2 LED Light Rope Hanger RJ11 3-Way x 1pc x 2pcs Cable Splitter x 1pc Power Cord RJ11 Network Cable x 1pc x 2pcs... - Page 7 PRODUCT CONTENTS VS1000E LED Light Rope Hanger Wire Ropes x 1pc x 2pcs x 2pcs VS1000EX2 LED Light Rope Hanger Wire Ropes x 2pcs x 4pcs x 4pcs...
-
Page 8: Key Features
KEY FEATURES SAMSUNG LED DIODES HIGH EFFICACY DIMMABLE LED DRIVER Powered by Samsung's Engineered with premium high-efficiency horticulture diodes and a robust power 0-100% light dimming for diodes, emitting the perfect supply, this light delivers different growth stages spectral output for plant exceptional PPE of up to (except VS1000E). -
Page 9: Specifications
SPECIFICATIONS VS1000 VS1500 VS2000 VS3000 VS4000 VS1000E Samsung LED Source Samsung LM301D LM281B+ pro Full Spectrum: 380 – 780nm; rich 660nm and 730nm Spectrum Input Voltage 120-277V Frequency 50-60Hz >0.9 Power Factor Input Power 100W 150W 200W 300W 400W 100W Dimensions(L) 11.8"/30cm 14.2"/36cm... - Page 10 SPECIFICATIONS SPECTRUM Wavelength (nm)
-
Page 11: Application
APPLICATION SUGGESTED HANGING DISTANCE & LIGHTING TIME Distance Stage Time Inch (In.) Centimeter (cm.) Germination 24-30 61-76 18 Hours ON Seeding 24-30 61-76 16 Hours ON 18-24 46-61 18 Hours ON Flower 12-18 30-46 12 Hours ON Set the LED power on high and place the light further away from your plants to cover a wider area, or set the LED at a lower power and place the light closer to your plants for less coverage but higher energy efficiency. -
Page 12: Installation
INSTALLATION INSTALLATION OPTIONS (VS1000/VS1500/VS2000/VS3000/VS4000/VS1000X2) 1. Pass the rope hangers through the LED's hooks, and then fix the other end of the rope hangers to the ceiling. 2.Remove the hooks from the LEDs, then fit them onto the ceiling bracket before installing them back onto the LED. - Page 13 INSTALLATION INSTALLATION OPTIONS (VS1000E/VS1000EX2) 1. Pass the rope hangers through the LED's hooks, and then fix the other end of the rope hangers to the ceiling.
- Page 14 INSTALLATION DAISY CHAININ Controlled Light (B) Master Light (A) Controlled Light Light (C) Choose a light as the Master Light (A) and use the RJ11 cables and cable splitter to connect other lights (B, C) as the Controlled Lights as shown above. Turn the dimming knob to "EXT" on the Controlled Light (B, C) to allow them to be controlled by the Master Light (A).
-
Page 15: Warranty Information
WARRANTY INFORMATION VIVOSUN provides a 5-year warranty against defects on all VS LED Lights purchased directly from us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakage that may occur during normal use of our products.
