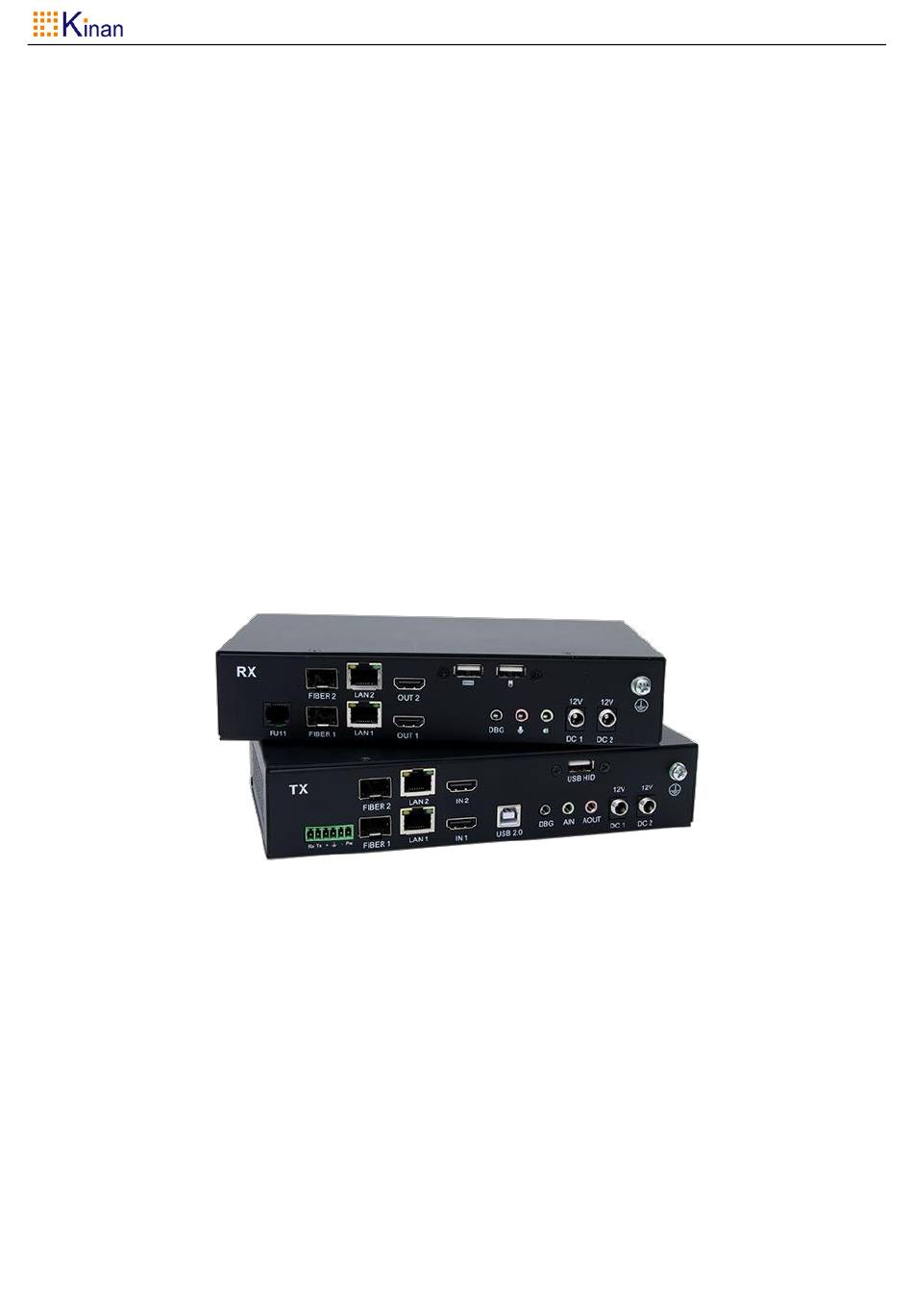

- Page 1 IP KVM Matrix Extender (KFH286K) www.kinankvm.com @All right reserved Shenzhen Kinan Technology Co., Ltd. Date: 2024/12 Version: V 1.0...
- Page 2 The video compression algorithm of KFH286K matrix extender is a perfect combination of high-quality image and low latency (<8ms). The USB and video signals are transmitted through CAT5e/6/7 network cable.
-
Page 3: Product Feature
USB transmission rate up to 480Mbit/s HDMI lossless real-time full HD transmission Support transmission through fiber optic and network (CAT5e/6/7) Support one Administrator account and one User account Support remote computer power on and off Product Overview KFH286K Transmitter (TX) - Page 4 Reserved interfaces FIBER2，FIBER1 Fiber interface LAN2,LAN1 LAN interface IN2, IN1 HDMI video input USB2.0 USB-B, connect to PC or server Debug interface Audio input AOUT MIC output DC1, DC2 Connect to the 12V power supply Ground the device KFH286K Receiver (RX)
- Page 5 www.kinankvm.com Components Description POWER Power indicator FIBER Connection indicator of FIBER LINK Connection indicator SLED System indicator Remote power on/off button USB2.0 Connect to USB2.0 peripherals Connect to a USB keyboard Connect to a USB mouse RJ11 Reserved interfaces FIBER2, FIBER1 Fiber interface LAN2, LAN1 LAN interface...
-
Page 6: Connection Diagram
www.kinankvm.com Connection Diagram... - Page 7 www.kinankvm.com Matrix Connection Diagram...
-
Page 8: Specifications
Specifications Specifications KFH286K _TX KFH286K_RX HDMI input HDMI output Power 2x 12V 2x 12V LAN port 2x RJ45 2x RJ45 Connections Optical Module 2x SFP+ 2x SFP+ 3.5MM Stereo Jack (Green) 3.5MM Stereo Jack (Pink) Speaker 3.5MM Stereo Jack (Pink) 3.5MM Stereo Jack (Green)
