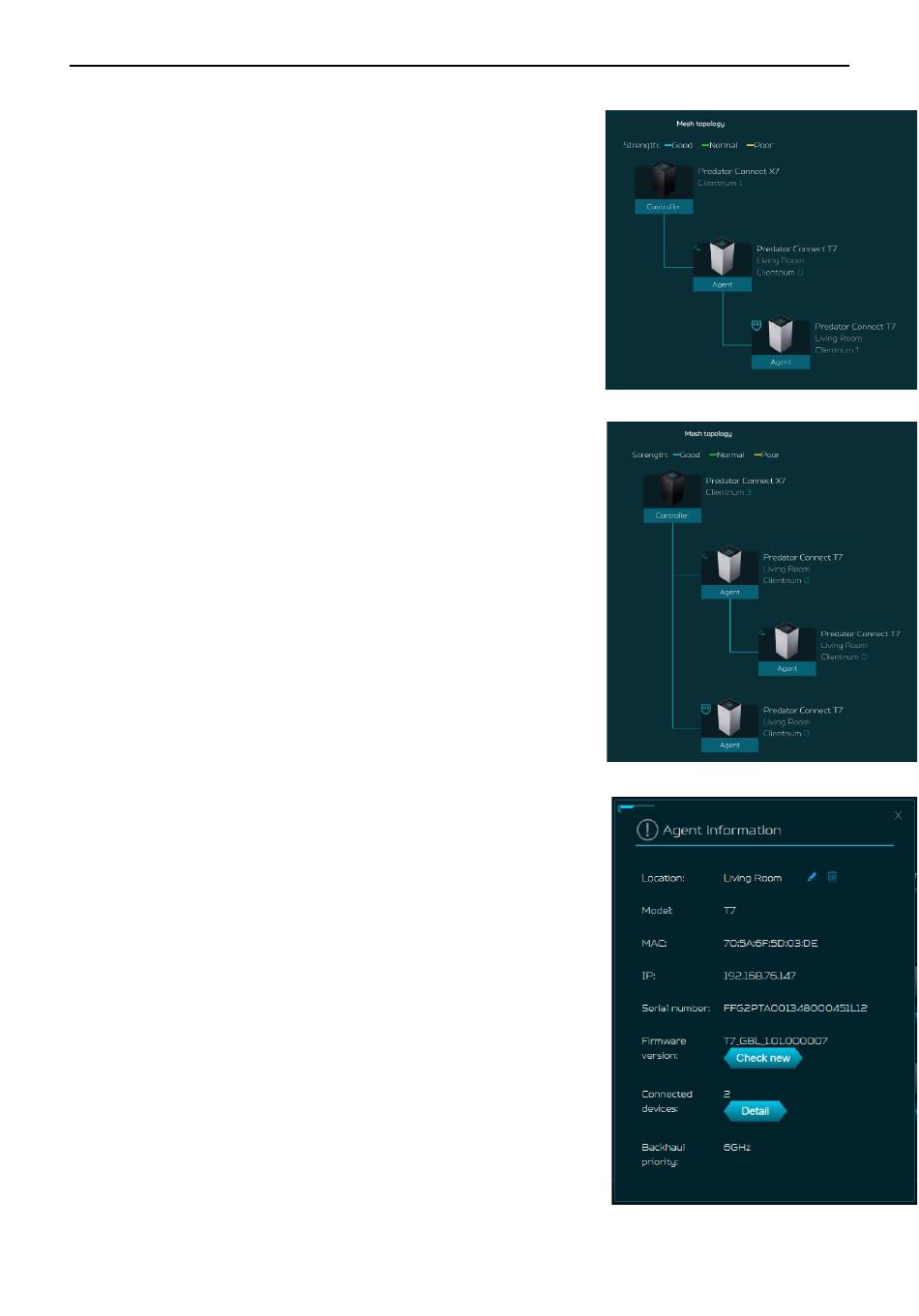

Daisy Chain topology – 2 agents
In daisy chain topology of 2 agents, a
controller is wirelessly connected with the
first agent, and then an agent is connected
with the second agent through Ethernet
cable, making a chain topology.
Blue line indicates a good signal strength.
Tree topology – 3 agents
In tree topology of 3 agents, a
controller is connected with the two agents;
whereas a third agent is connected with
the first agent, making a tree topology.
Medium between a controller and
the agents can be wireless or wired
connectivity.
Agent information
From this tab, you can see the
agent's information including:
1) Location
2) Model number
3) IP address
4) Serial number
5) Firmware version
6) Devices connected with the agent
7) Agent backhaul connectivity.
