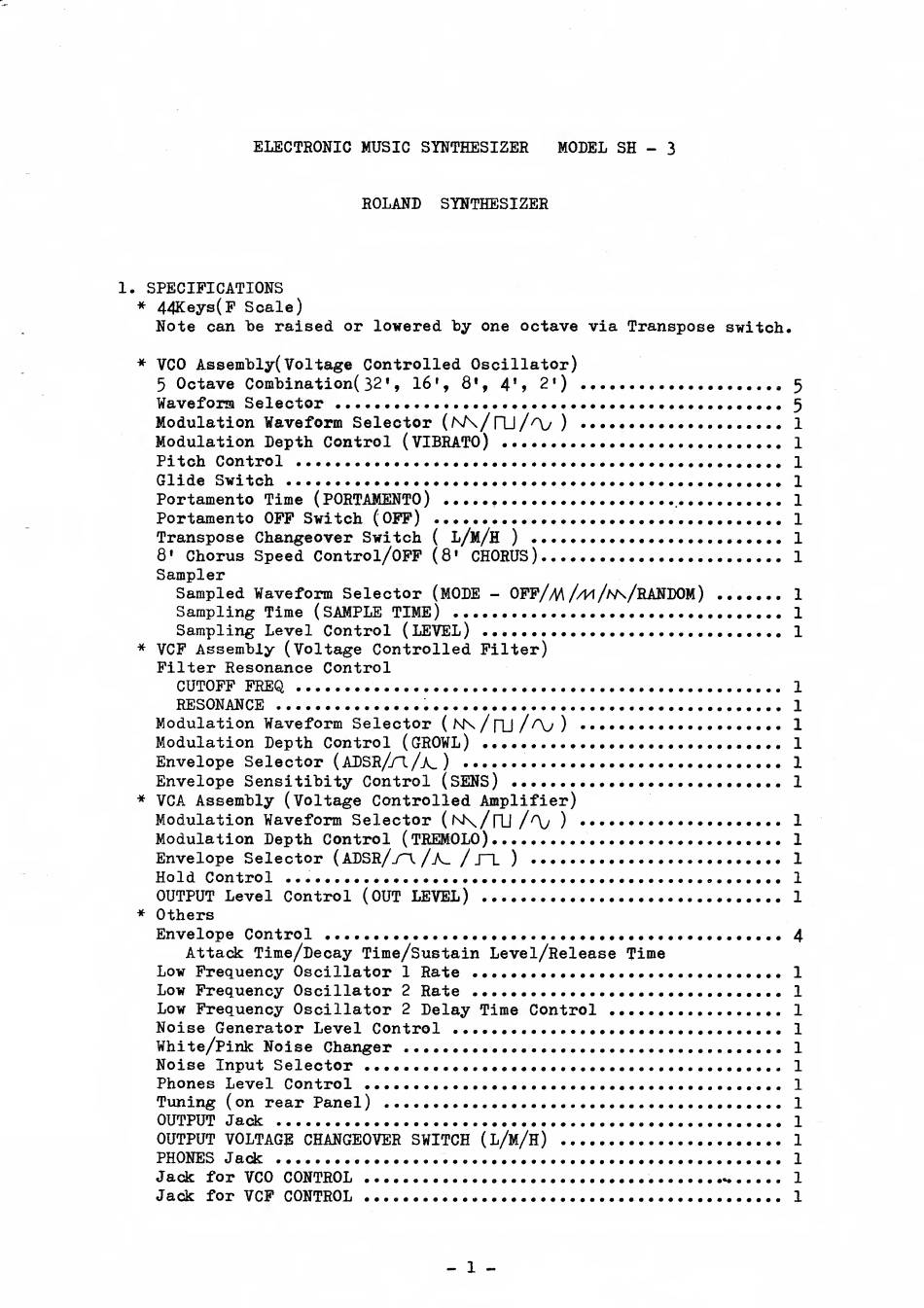

ELECTRONIC MUSIC SYNTHESIZER MODEL SH
-
3
ROLAND SYNTHESIZER
1.
SPECIFICATIONS
*
44Keys(F Scale)
Note
can be
raised or lowered by
one octave via Transpose switch.
* VCO Assembly( Voltage Controlled Oscillator)
5
Octave Combination 32
'
,
16', 8», 4', 2')
5
Waveform Selector
5
Modulation Waveform Selector
(N\/
fTJ/^Vy
)
1
Modulation Depth Control (VIBRATO)
1
Pitch Control
*
1
Glide Switch
1
Portamento Time
(
PORTAMENTO)
1
Portamento OFF Switch
(OFF)
1
Transpose Changeover Switch
(
L/m/H
)
1
8' Chorus Speed Control/OFF
(8' CHORUS).
1
Sampler
Sampled Waveform Selector (MODE -
OFF//V\
//Pi/aa/RANDOM) .......
1
Sampling Time (SAMPLE TIME)
1
Sampling Level Control (LEVEL)
1
* VCF Assembly (Voltage Controlled Filter)
Filter Resonance Control
CUTOFF FREQ
1
RESONANCE
1
Modulation Waveform Selector
(
N\
/ |U /
f\j
)
1
Modulation Depth Control (GROWL)
1
Envelope Selector (ADSR/a/a_
)
1
Envelope Sensitibity Control
(SENS)
1
* VCA Assembly (Voltage Controlled Amplifier)
Modulation Waveform Selector (N\/rL! /
f\j
)
1
Modulation Depth Control (TREMOLO)
1
Envelope Selector
(
ADSR/Vi. / A_ /
_T"L
)
1
Hold Control
1
OUTPUT Level Control (OUT LEVEL)
1
*
Others
Envelope Control
4
Attack Time/Decay Time/Sustain Level/Release Time
Low Frequency Oscillator
1
Rate
1
Low Frequency Oscillator
2
Rate
1
Low Frequency Oscillator
2
Delay Time Control
1
Noise Generator Level Control
1
White/Pink Noise Changer
1
Noise Input Selector
1
Phones Level Control
1
Timing
(
on
rear Panel
)
1
OUTPUT Jack
1
OUTPUT VOLTAGE CHANGEOVER SWITCH (L/m/H)
1
PHONES Jack
1
Jack for VCO CONTROL
..
1
Jack for VCF CONTROL
1
-
1
-
