NOV.
1st,
1982

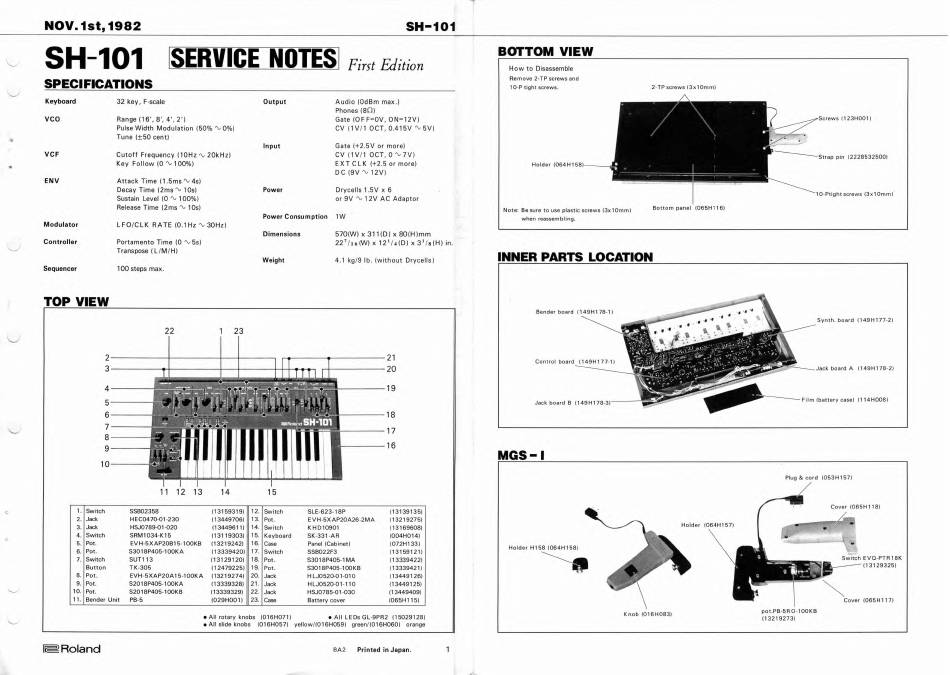

SH-101
First
Edition
SPECIFICATIONS
Keyboard 32
key, F-scale
Output
VCO
Range (16',
8',
4', 2')
Pulse Width Modulation (50%
^
0%)
Tune (±50
cent)
Audio (OdBm
max.)
Phones (80)
Gate (OFF=0V,
ON=12V)
CV
(1V/1
OCT,
0.415V
^5V)
Input
VCF
Cutoff
Frequency (10Hz
%
20kHz)
Key Follow
(0
^100%)
Gate
(+2.5V or more)
CV
(1V/1
OCT,
CWV)
EXTCLK
(+2.5 or
more)
DC(9W12V)
ENV
Attack
Time
(1.5ms
^
4s)
Decay Time (2ms
^
10s)
Sustain Level (0
^
100%)
Release Time (2ms
^
10s)
•
Power
Drycells
1
.5V x 6
or
9V
%
12V
AC
Adaptor
Power Consumption
1W
Modulator
LFO/CLK RATE
(0.1Hz
%
30Hz)
Dimensions
Controller
Portamento Time
(0 'V 5s)
Transpose (L/M/H)
570(W)
x
311(D)
x
80(H)mm
22
7
/i6(W)
x
12'/4(D) x3V8(H)
in
Weight
4.1 kg/9
lb.
(without Drycells)
Sequencer 100
steps
max.
TOP VIEW
22
1
23
2
3
4
5
6
7
8
9
10
21
20
19
18
17
16
11
12 13 14 15
1.
Switch SSB02358
(13159319) 12. Switch SLE-623-18P (13139135)
2.
Jack HEC0470-01-230
(
1
3449706) 13. Pot.
EVH-5XAP20A26-2MA
(13219275)
3. Jack
HSJ0789-0 1-020
(13449611) 14. Switch
KHD10901
(13169608)
4.
Switch SRM1034-K15
(13119303) 15. Keyboard SK-331-AR (004H014)
5. Pot.
EVH-5XAP20B1
5-1
00KB
(13219242) 16. Case Panel (Cabinet) (072H133)
6. Pot.
S3018P405-100KA
(13339420) 17. Switch SSB022F3 (13159121)
7.
Switch
SUT113
(13129120) 18. Pot. S3018P405-1MA (13339422)
Button TK-305
(12479225) 19.
Pot.
S3018P405-100KB (13339421)
8. Pot.
EVH-5XAP20A15-100KA
(13219274) 20. Jack HLJ0520-0 1-010 (13449126)
9. Pot.
S2018P405-100KA
(13339328) 21. Jack HLJ0520-01-110 (13449125)
10. Pot.
S2018P405-100KB
(13339329) 22. Jack HSJ0785-01-030 (13449409)
11. Bender Unit PB-5 (029H001) 23.
Case
Battery cover (065H115)
All rotary
knobs (016H071) •
All
LEDs GL-9PR2 (15029128)
All slide
knobs (016H057)
yellow/(01
6H059) green/(016H060)
orange
Roland
BA2
Printed
in
Japan.
1
BOTTOM VIEW
How
to
Disassemble
Remove 2-TP screws and
10-P
tight
screws. 2-TP screws (3x10mm)
Holder (064H158)
Screws (123H001)
Strap pin
(2228532500)
1
O-Ptight screws
(3x10mm)
Note: Be sure
to
use plastic screws (3x10mm)
when
reassembling.
Bottom
panel
(065H116)
INNER PARTS LOCATION
Bender board (149H178-1)
Control board (149H177-1)
Jack board B (149H178-3)
Synth, board (149H177-2)
Jack board
A (149H178-2)
Film (battery case) (114H008)
MGS
I
Plug
&
cord (053H157)
Holder
H158
(064H158)
Holder (064H157)
Cover (065H118)
Switch
EVQ-PTR18K
(13129325)
Cover (065H117)
Knob (016H083)
pot.PB-5RO-100KB
(13219273)
