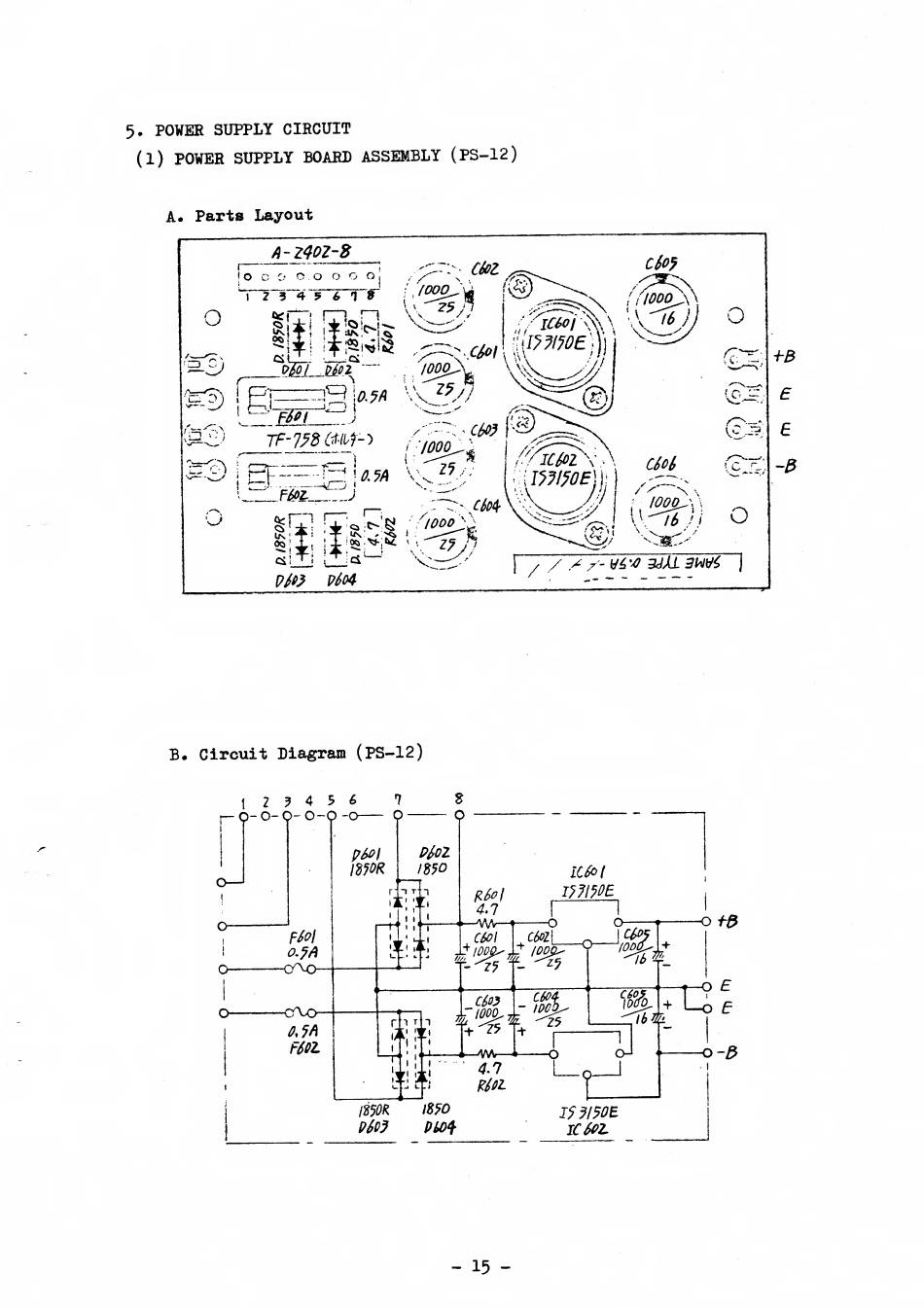

Roland SH-3 Service Note page 15

Hide thumbs Also See for SH-3:

Advertisement

5.
POWER SUPPLY CIRCUIT
(1)
POWER SUPPLY BOARD ASSEMBLY
(PS-12)
A.
Parts Layout
