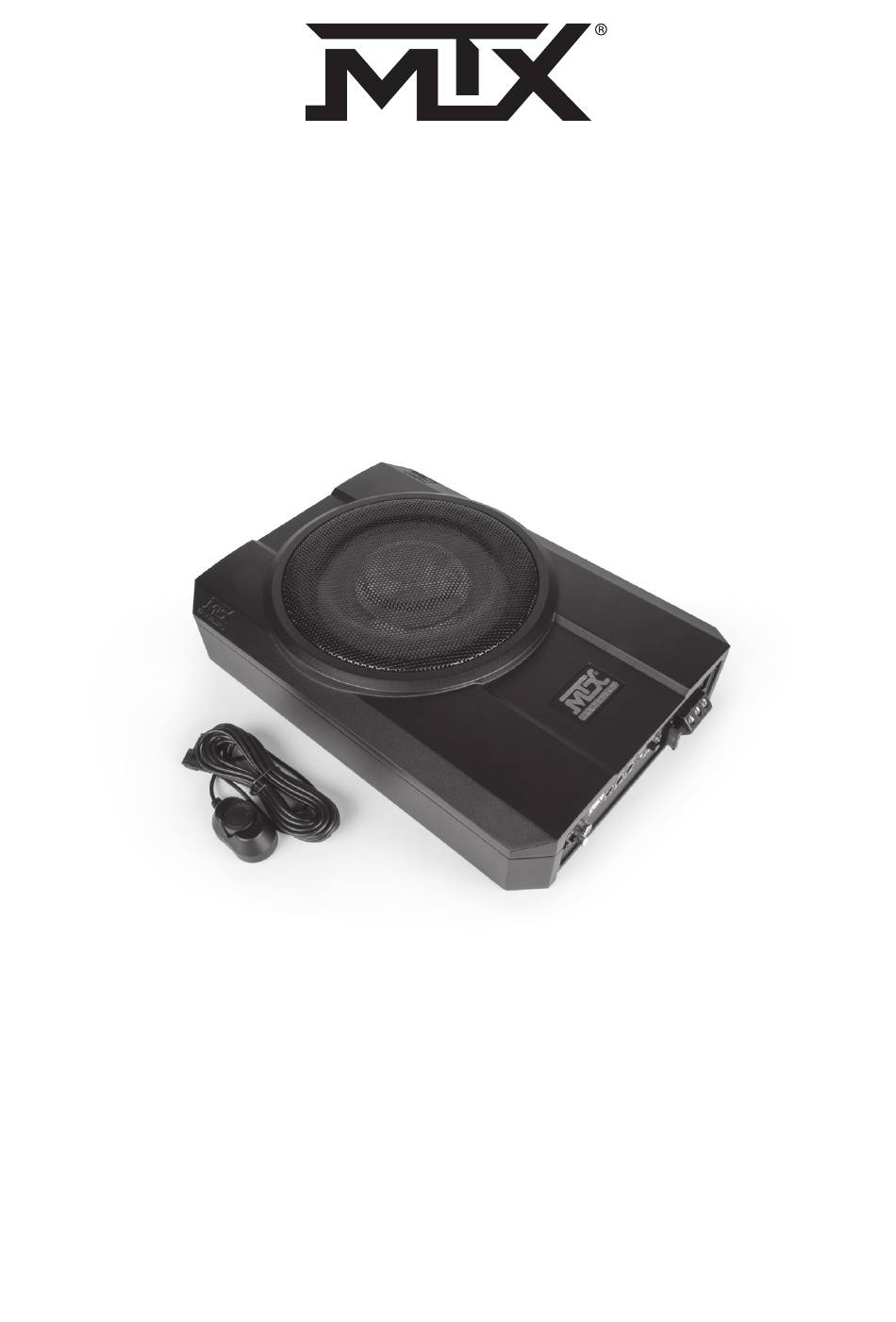

- Page 1 TERMINATOR 8" MICRO SUBWOOFER ENCLOSURE TN8MS...
-
Page 2: Table Of Contents
INTRODUCTION TABLE OF CONTENTS Congratulations on the purchase of your new MTX 2. Introduction / Safety gear. For over 50 years MTX remains an American 3. Features / Package Contents family-owned manufacturer full of passionate 4. Control Functions enthusiasts just like you. Thank you for counting on 6. -
Page 3: Features / Package Contents
FEATURES PACKAGE CONTENTS • Integrated Amplifier Creates an All-In-One • (1) TN8MS Subwoofer Enclosure Subwoofer Solution • (1) 15-Amp Fuse (Installed) • High and Low Level Inputs • (1) EBC Remote Knob and 13' Cable • Small Size Footprint for Easy Installation •... -
Page 4: Control Functions
The ground cable must be the equivalent gauge as the power cable. The 3. RCA Inputs - The RCA inputs accept signal from TN8MS will accept up to an 8 AWG power low-level (RCA) inputs up to 4V. Source units cable. - Page 5 INPUT HIGH INPUT PHASE FUSE GAIN BASS BOOST LP X-OVER CH. 2 R+ R– G L– L+ 0.1V +12dB 50Hz 150Hz 0° POWER 180° CH. 1 TN8MS Amplifier Control Panel MTX.COM...
-
Page 6: Installation
INSTALLATION 5. Grounding - Locate a proper ground point on the MTX recommends your new TN8MS subwoofer enclosure be installed by an Authorized MTX vehicle’s chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach Dealer. - Page 7 • Turn the LPF control to the desired cutoff frequency. • Frequencies above the selected cutoff frequency will be filtered out. • 80Hz is a good starting point for the TN8MS and can be adjusted to achieve the desired frequency response. 10. Gain Adjustment A.
-
Page 8: Wiring
WIRING INPUT HIGH INPUT PHASE FUSE GAIN BASS BOOST LP X-OVER CH. 2 R+ R– G L– L+ 0.1V +12dB 50Hz 150Hz 0° POWER 180° CH. 1 TN8MS MTX.COM... -
Page 9: Specifications
SPECIFICATIONS Model TN8MS Subwoofer Size 8" RMS Power Output at 2Ω 125W Total Harmonic Distortion <1% >91dB Signal to Noise Ratio Input Sensitivity 4V - 100mV 50Hz - 150Hz Crossover Range Frequency Response 20Hz - 200Hz EBC Remote Knob Fuse Rating... -
Page 10: Dimensions
DIMENSIONS Height Width Depth Model " " " TN8MS (78mm) (242mm) (345mm) MTX.COM... -
Page 11: Warranty
We’re here to help! If you experience an issue with any of our products, please contact our customer service technical line at 1-800-CALL-MTX to help troubleshoot your issue. If after speaking with our technical experts it is determined that your product is defective, the technician will provide you with a Return Authorization number and all relevant details you’ll need to process your claim quickly. -
Page 12: Let's Get Social
Like, Follow, & Subscribe © 2024 MiTek Corporation. All rights reserved. MTX is a trademark of MiTek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
